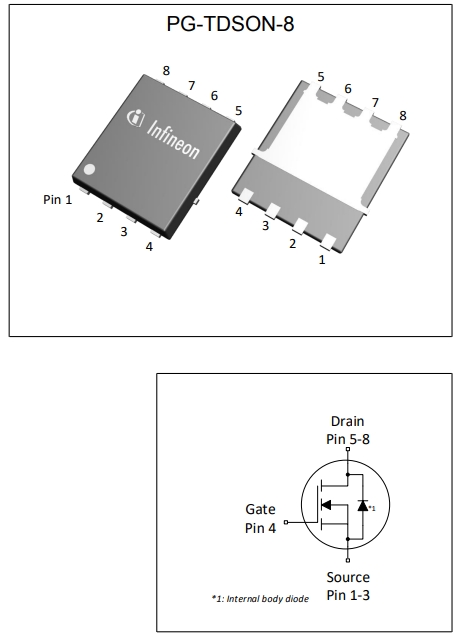

Infineon Technologies BSC011N03LSATMA1

Part No.:: BSC011N03LSATMA1

Manufacturer:: Infineon Technologies

Package:: PG-TDSON-8-1

Datasheet:: BSC011N03LSATMA1.pdf

Description:: MOSFET N-CH 30V 37A/100A TDSON

In Stock:: 2420

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

BSC011N03LSATMA1 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
OptiMOS™
ProductStatus:
Active
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
30 V
Current-ContinuousDrain(Id)@25°C:
37A (Ta), 100A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
4.5V, 10V
RdsOn(Max)@IdVgs:
1.1mOhm @ 30A, 10V
Vgs(th)(Max)@Id:
2.2V @ 250µA
GateCharge(Qg)(Max)@Vgs:
72 nC @ 10 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
4700 pF @ 15 V
FETFeature:
-
PowerDissipation(Max):
2.5W (Ta), 96W (Tc)
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount
