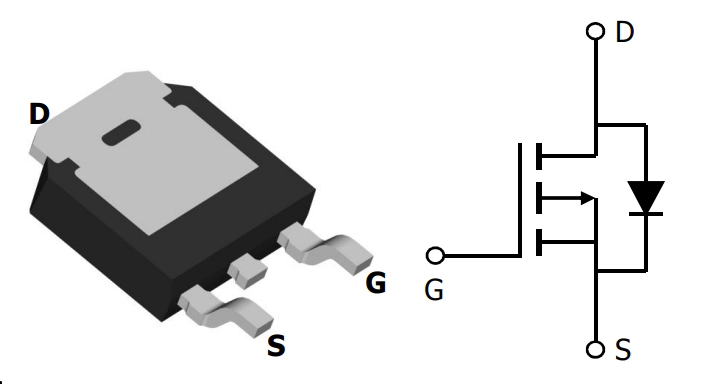

Alpha & Omega Semiconductor Inc. AOD4185

Part No.:: AOD4185

Manufacturer:: Alpha & Omega Semiconductor Inc.

Package:: TO-252 (DPAK)

Datasheet:: AOD4185.pdf

Description:: MOSFET P-CH 40V 40A TO252

In Stock:: 21982

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AOD4185 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
FETType:
P-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
40 V
Current-ContinuousDrain(Id)@25°C:
40A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
4.5V, 10V
RdsOn(Max)@IdVgs:
15mOhm @ 20A, 10V
Vgs(th)(Max)@Id:
3V @ 250µA
GateCharge(Qg)(Max)@Vgs:
55 nC @ 10 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
2550 pF @ 20 V
FETFeature:
-
PowerDissipation(Max):
2.5W (Ta), 62.5W (Tc)
OperatingTemperature:
-55°C ~ 175°C (TJ)
MountingType:
Surface Mount
