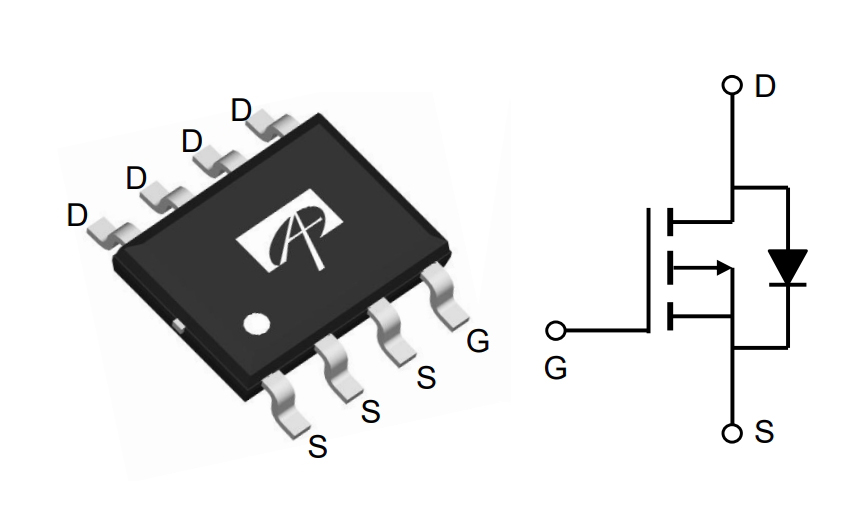

Alpha & Omega Semiconductor Inc. AO4435L_103

Part No.:: AO4435L_103

Manufacturer:: Alpha & Omega Semiconductor Inc.

Package:: 8-SOIC

Datasheet:

Description:: MOSFET P-CH 30V 10.5A 8SOIC

In Stock:: 2066

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AO4435L_103 Specifications

Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Obsolete
FETType:
P-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
30 V
Current-ContinuousDrain(Id)@25°C:
10.5A (Ta)
DriveVoltage(MaxRdsOnMinRdsOn):
5V, 20V
RdsOn(Max)@IdVgs:
14mOhm @ 11A, 20V
Vgs(th)(Max)@Id:
3V @ 250µA
GateCharge(Qg)(Max)@Vgs:
24 nC @ 10 V
Vgs(Max):
±25V
InputCapacitance(Ciss)(Max)@Vds:
1400 pF @ 15 V
FETFeature:
-
PowerDissipation(Max):
3.1W (Ta)
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount
