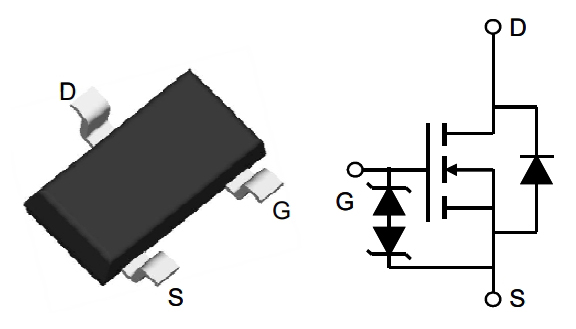

Alpha & Omega Semiconductor Inc. AO3416

Part No.:: AO3416

Manufacturer:: Alpha & Omega Semiconductor Inc.

Package:: SOT-23-3

Datasheet:: AO3416.pdf

Description:: MOSFET N-CH 20V 6.5A SOT23-3L

In Stock:: 2258

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AO3416 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Not For New Designs
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
20 V
Current-ContinuousDrain(Id)@25°C:
6.5A (Ta)
DriveVoltage(MaxRdsOnMinRdsOn):
1.8V, 4.5V
RdsOn(Max)@IdVgs:
22mOhm @ 6.5A, 4.5V
Vgs(th)(Max)@Id:
1V @ 250µA
GateCharge(Qg)(Max)@Vgs:
16 nC @ 4.5 V
Vgs(Max):
±8V
InputCapacitance(Ciss)(Max)@Vds:
1160 pF @ 10 V
FETFeature:
-
PowerDissipation(Max):
1.4W (Ta)
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount
