onsemi 2N7002LT1G

Part No.:: 2N7002LT1G

Manufacturer:: onsemi

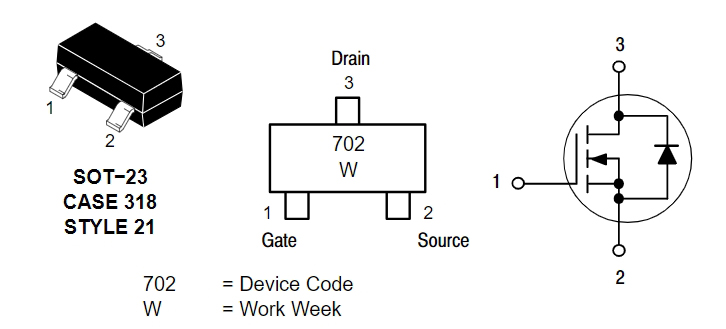

Package:: SOT-23-3 (TO-236)

Datasheet:: 2N7002LT1G.pdf

Description:: MOSFET N-CH 60V 115MA SOT23-3

In Stock:: 653657

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

2N7002LT1G Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
60 V
Current-ContinuousDrain(Id)@25°C:
115mA (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
5V, 10V
RdsOn(Max)@IdVgs:
7.5Ohm @ 500mA, 10V
Vgs(th)(Max)@Id:
2.5V @ 250µA
GateCharge(Qg)(Max)@Vgs:
-
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
50 pF @ 25 V
FETFeature:
-
PowerDissipation(Max):
225mW (Ta)
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount

2N7002LT1G this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 2N7002LT1G price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 2N7002LT1G to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

2N7002LT1G information

Views：

2N7002LT1G Typical application Circuitry

2N7002LT1G

The 2N7002LT1G is an N-channel enhancement-mode Field-Effect Transistor (FET), often used as a switch in a variety of electronic circuits due to its efficiency and compactness.

Functions of 2N7002LT1G:

The 2N7002LT1G is primarily employed as:

- An efficient electronic switch.

- An amplifier in specific signal enhancement scenarios.

- A device to control other parts in circuits due to its rapid response.

Application Scenarios:

The 2N7002LT1G can be found in a myriad of applications, including:

- DC/DC Converters.

- Relay replacements.

- Motor control circuits.

- Load switching.

Characteristics of the 2N7002LT1G:

- It's an N-Channel MOSFET.

- A drain-source voltage (VDS) typically rated at around 60V.

- Continuous drain current (ID) is approximately 300mA.

- Comes with a low on-state resistance (RDS(on)).

- Encased in an SOT-23 package, suitable for space-saving applications.

Application Example: Relay Replacement

1.Connecting the Drain: Hook up the Drain terminal (commonly marked 'D') of the 2N7002LT1G to one terminal of the device you're aiming to control. The device's other terminal needs to be connected directly to the power source's positive side.

2.Setting up the Source: The Source pin, usually represented as 'S', should be grounded, linking it directly to the circuit's common ground or negative terminal.

3.Managing the Gate: The Gate terminal, often tagged as 'G', steers the operation of the 2N7002LT1G. By introducing a voltage (ensuring it's above the threshold voltage but not exceeding the maximum VGS), you'll turn the transistor on. Conversely, nullify this voltage or connect the gate to the ground to turn it off.

4.Integration with Logic Circuit: For digitally managed operations, connect the Gate of the 2N7002LT1G to a digital logic circuit or microcontroller. This can dictate when the transistor should activate, thereby managing power to the attached device.

Design Considerations:

- Gate Protection: Integrate a pull-down resistor with the 2N7002LT1G gate to ensure it remains off by default. This is vital when there's no signal from the controlling logic.

- Handling Voltage: Ensure that the voltage applied to the gate aligns with the transistor's specifications, avoiding excesses that could compromise its integrity.

- Heat Concerns: Even if 2N7002LT1G is deemed efficient, it's still prone to heating, especially with high loads. It's prudent to ensure good heat dissipation.

- Avoiding Back EMF: In scenarios where inductive loads are involved, like motors, implement a diode to counter potential back EMF, which can be harmful.

In conclusion, the 2N7002LT1G MOSFET proves to be a trustworthy and adaptable electronic component. However, for its optimal performance, it's pivotal to embed it in circuits with due diligence, taking note of the outlined considerations.
