onsemi 2N7002KT1G

Part No.:: 2N7002KT1G

Manufacturer:: onsemi

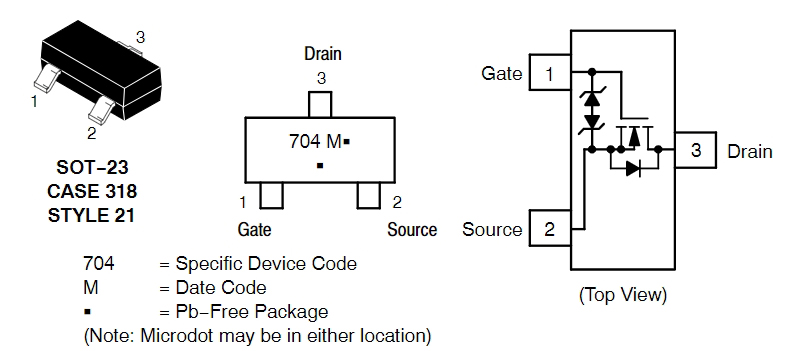

Package:: SOT-23-3 (TO-236)

Datasheet:: 2N7002KT1G.pdf

Description:: MOSFET N-CH 60V 320MA SOT23-3

In Stock:: 23217

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

2N7002KT1G Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
60 V
Current-ContinuousDrain(Id)@25°C:
320mA (Ta)
DriveVoltage(MaxRdsOnMinRdsOn):
4.5V, 10V
RdsOn(Max)@IdVgs:
1.6Ohm @ 500mA, 10V
Vgs(th)(Max)@Id:
2.5V @ 250µA
GateCharge(Qg)(Max)@Vgs:
0.7 nC @ 4.5 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
24.5 pF @ 20 V
FETFeature:
-
PowerDissipation(Max):
350mW (Ta)
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount

2N7002KT1G this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 2N7002KT1G price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 2N7002KT1G to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

2N7002KT1G information

Views：

2N7002KT1G Typical application Circuitry

2N7002KT1G

The 2N7002KT1G stands as an N-channel enhancement mode field-effect transistor (FET), serving as a crucial electronic switch in numerous applications.

2N7002KT1G Functions:

- Effective switching capabilities.

- Amplification of signals.

- Low power consumption.

Applications for the 2N7002KT1G:

- Power management systems.

- Logic level shifting.

- Backlighting in LCDs.

Parametric Characteristics of 2N7002KT1G:

- It's a small-signal N-Channel MOSFET.

- Drains source voltage (VDS) rating of about 60V.

- The continuous drain current (ID) is typically 300mA.

- Low on-state resistance (RDS(on)).

- It is encapsulated in an SOT-23 package, making it efficient for compact applications.

Application Scenario: Power Management System

Source Connection: Connect the Source pin (often abbreviated to 'S') of the 2N7002KT1G directly to your circuit's ground or the shared terminal.

Drain Attachment: The Drain pin, frequently denoted as 'D', should be linked to one end of the device you intend to manage. The device's other end should be connected to your positive voltage supply.

Gate Control: The Gate pin (often labeled 'G') functions as the MOSFET's command center. Apply a voltage (usually greater than the MOSFET's threshold voltage but below the maximum VGS rating) here to activate the transistor. To deactivate it, reduce the gate voltage to zero or connect it to the ground.

Microcontroller Integration: To exercise control over the 2N7002KT1G, implement a microcontroller. This controller can then modulate the gate's voltage, consequently controlling the attached device's power state. Once activated, the current will traverse from the drain to the source, energizing the connected device.

Design Factors:

- Gate Sensitivity: A resistor should be integrated when connecting the 2N7002KT1G gate to a microcontroller. This minimizes inrush currents that could jeopardize the gate.

- Operational Voltage: Ensure the gate voltage surpasses the MOSFET's threshold to guarantee full activation.

- Thermal Management: Even though 2N7002KT1G is lauded for its efficiency, heat generation is still a concern, particularly when overseeing substantial loads. Make provisions for effective heat dissipation.

- Voltage Spike Safeguard: For applications involving inductive loads, integrate a flyback diode across the device to shield against damaging voltage spikes.

Conclusively, the 2N7002KT1G stands out in its efficiency, establishing its indispensability in multiple electronic circuits. Its versatility ensures seamless integration, but only when underpinned by prudent design considerations.
