onsemi 2N7002ET1G

Part No.:: 2N7002ET1G

Manufacturer:: onsemi

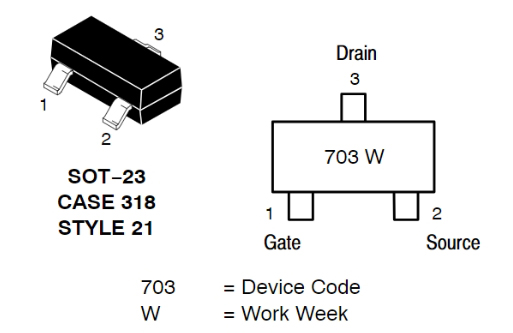

Package:: SOT-23-3 (TO-236)

Datasheet:: 2N7002ET1G.pdf

Description:: MOSFET N-CH 60V 260MA SOT23-3

In Stock:: 2568

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

2N7002ET1G Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
ProductStatus:
Active
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
60 V
Current-ContinuousDrain(Id)@25°C:
260mA (Ta)
DriveVoltage(MaxRdsOnMinRdsOn):
4.5V, 10V
RdsOn(Max)@IdVgs:
2.5Ohm @ 240mA, 10V
Vgs(th)(Max)@Id:
2.5V @ 250µA
GateCharge(Qg)(Max)@Vgs:
0.81 nC @ 5 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
26.7 pF @ 25 V
FETFeature:
-
PowerDissipation(Max):
300mW (Tj)
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount

2N7002ET1G this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 2N7002ET1G price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 2N7002ET1G to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

2N7002ET1G information

Views：

2N7002ET1G Typical application Circuitry

2N7002ET1G

The 2N7002ET1G is a versatile N-channel MOSFET that has carved a niche in the realm of electronic components due to its efficiency and compactness.

2N7002ET1G Applications:

- Load switching.

- DC-DC converters.

- Motor control circuits.

- Signal amplification.

Characteristic Traits of 2N7002ET1G:

- Small signal N-Channel MOSFET.

- Voltage rating of 60V.

- Continuous drain current (ID) of around 115mA.

- Low on-resistance (RDS(on)).

- SOT-23 package, making it suitable for space-constrained applications.

Application Scenario: Load Switching

Source Terminal: Begin by connecting the Source (often labeled as 'S') pin of the 2N7002ET1G directly to the ground or common terminal of your circuit.

Drain Terminal: This is where the actual load switching happens. Connect the Drain (often marked as 'D') pin to one terminal of the load you want to control. The other terminal of the load should be connected to the supply voltage or positive rail.

Gate Drive: The Gate pin (usually represented by 'G') is the controlling terminal. To switch the MOSFET on, apply a voltage (typically 10V or higher than the threshold voltage of the MOSFET) to this pin. To switch it off, ground the gate pin or bring it to 0V.

Load Switching Control: Incorporate a microcontroller or a manual switch to modulate the gate voltage, which will subsequently determine if the load is on or off. When the 2N7002ET1G is turned on, current flows from the drain to the source, thus powering the load.

Design Considerations:

- Gate Protection: It's imperative to use a gate resistor when driving the 2N7002ET1G from a microcontroller to prevent high inrush currents that could potentially damage the gate.

- Voltage Threshold: Ascertain that the gate voltage exceeds the threshold voltage of the MOSFET to ensure full enhancement (turn-on).

- Heat Dissipation: Despite its efficiency, the 2N7002ET1G can still generate heat, especially when handling larger loads. Therefore, ensure adequate ventilation or even consider a heat sink if the application demands it.

- Transient Voltage Spikes: In inductive load scenarios, it's prudent to connect a flyback diode across the load to negate potential damage from transient voltage spikes.

In essence, the 2N7002ET1G offers a formidable blend of efficiency and compactness, rendering it a cornerstone for various applications, especially where size and performance are paramount. With the right design considerations, it can function seamlessly, underpinning the foundation of many electronic circuits.
