Vishay Siliconix SI3932DV-T1-GE3

Part No.:: SI3932DV-T1-GE3

Manufacturer:: Vishay Siliconix

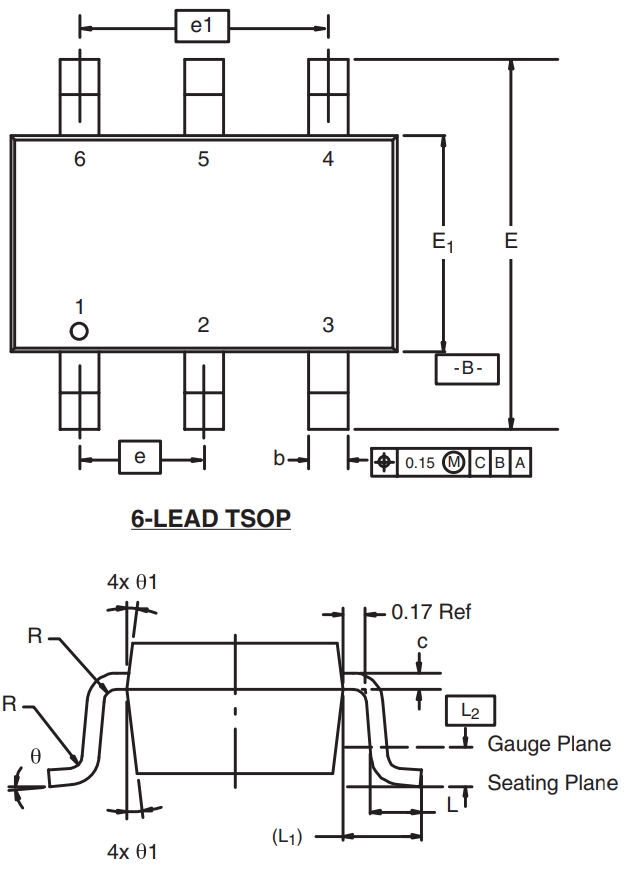

Package:: SOT-23-6 Thin, TSOT-23-6

Datasheet:: SI3932DV-T1-GE3.pdf

Description:: MOSFET 2N-CH 30V 3.7A 6-TSOP

In Stock:: 3074

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SI3932DV-T1-GE3 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
TrenchFET®
ProductStatus:
Active
FETType:
2 N-Channel (Dual)
FETFeature:
Logic Level Gate
DraintoSourceVoltage(Vdss):
30V
Current-ContinuousDrain(Id)@25°C:
3.7A
RdsOn(Max)@IdVgs:
58mOhm @ 3.4A, 10V
Vgs(th)(Max)@Id:
2.2V @ 250µA
GateCharge(Qg)(Max)@Vgs:
6nC @ 10V
InputCapacitance(Ciss)(Max)@Vds:
235pF @ 15V
Power-Max:
1.4W
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount
