Texas Instruments CSD87352Q5D

Part No.:: CSD87352Q5D

Manufacturer:: Texas Instruments

Package:: 8-PowerLDFN

Datasheet:: CSD87352Q5D.pdf

Description:: MOSFET 2N-CH 30V 25A 8SON

In Stock:: 988

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

CSD87352Q5D Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
NexFET™
ProductStatus:
Active
FETType:
2 N-Channel (Dual)
FETFeature:
Logic Level Gate
DraintoSourceVoltage(Vdss):
30V
Current-ContinuousDrain(Id)@25°C:
25A
RdsOn(Max)@IdVgs:
-
Vgs(th)(Max)@Id:
1.15V @ 250µA
GateCharge(Qg)(Max)@Vgs:
12.5nC @ 4.5V
InputCapacitance(Ciss)(Max)@Vds:
1800pF @ 15V
Power-Max:
8.5W
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount

CSD87352Q5D this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including CSD87352Q5D price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for CSD87352Q5D to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

CSD87352Q5D information

Views：

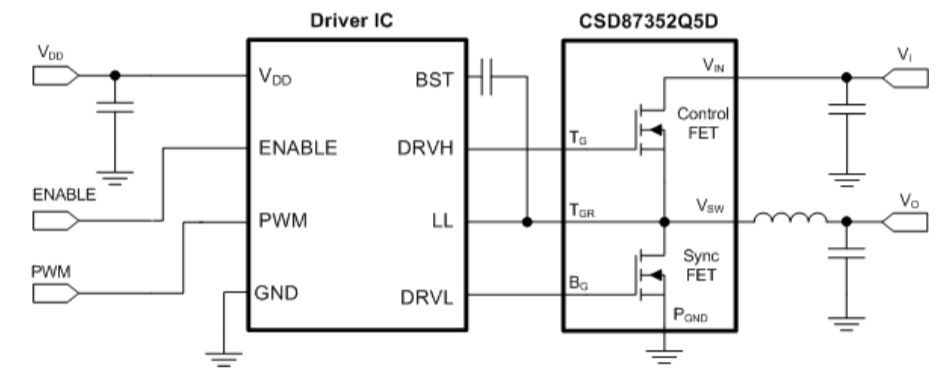

CSD87352Q5D Typical application Circuitry

CSD87352Q5D

The CSD87352Q5D is a high-performance, synchronous buck power stage that integrates two N-channel MOSFETs into a single package. Designed for high-efficiency power conversion in computing and telecommunications, it's commonly used in point-of-load (POL) solutions, VRMs (Voltage Regulator Modules), and multi-phase power supplies.

Application Scenarios:

The CSD87352Q5D excels in applications requiring efficient power distribution, such as in server motherboards, desktop PCs, and high-performance gaming consoles. Its high efficiency and thermal performance make it ideal for these high-demand environments.

Characteristic Parameters:

- High Current Capability: Supports high continuous current operations, making it suitable for heavy-load applications.

- Low On-Resistance: Features very low on-resistance (R_DS(on)) for both high-side and low-side MOSFETs, enhancing overall efficiency by reducing conduction losses.

- Thermal Performance: The package is designed for superior thermal performance, critical in high-power and high-density applications.

- Fast Switching: Capable of high-speed switching, which reduces switching losses and improves efficiency at high frequencies.

Circuit Connection for a VRM Application:

1. Input Power Supply Connection: Connect the input voltage source to the drain of the high-side MOSFET of the CSD87352Q5D. This connection is crucial for supplying power to the VRM circuit.

2. Output Load Connection: The source of the low-side MOSFET connects to the ground, and the node between the high-side and low-side MOSFETs (the phase node) connects to the output inductor. This setup forms the main power conversion path, delivering regulated voltage to the load.

3. Gate Drive Signals: Properly connect the gate drive signals to the gate terminals of the high-side and low-side MOSFETs. Use a high-performance gate driver capable of driving the gates with adequate voltage and current to ensure fast and efficient switching.

4. Bootstrap Circuitry: For the high-side MOSFET, implement a bootstrap circuit to provide a higher gate drive voltage. This circuit typically consists of a bootstrap diode and capacitor connected between the phase node and the high-side gate driver supply pin.

5. Feedback and Control Loop: Establish a feedback loop between the PWM controller and the output. This loop ensures the output voltage remains stable under varying load conditions by adjusting the PWM signals driving the gates of the CSD87352Q5D MOSFETs.

Design Considerations:

- PCB Layout: The PCB layout is critical, especially the placement of the CSD87352Q5D, inductors, capacitors, and the gate driver. Minimize loop areas to reduce EMI (Electromagnetic Interference) and switch node ringing.

- Thermal Management: Despite the CSD87352Q5D's efficient thermal design, high power applications may require additional cooling solutions, such as heatsinks or airflow, to maintain optimal operating temperatures.

- Gate Drive Strength: Ensure the gate driver can supply enough current to quickly charge and discharge the gate capacitances of the CSD87352Q5D MOSFETs, minimizing transition losses.

- Decoupling and Filtering: Adequate input and output capacitors should be placed close to the CSD87352Q5D to stabilize the supply voltage and smooth the output, respectively.

Incorporating the CSD87352Q5D in a VRM showcases its ability to provide efficient, high-density power conversion, essential for modern computing and telecommunications equipment. Attention to layout, thermal management, and gate drive optimization is key to leveraging the full potential of the CSD87352Q5D, ensuring stable and efficient power delivery in demanding applications.
