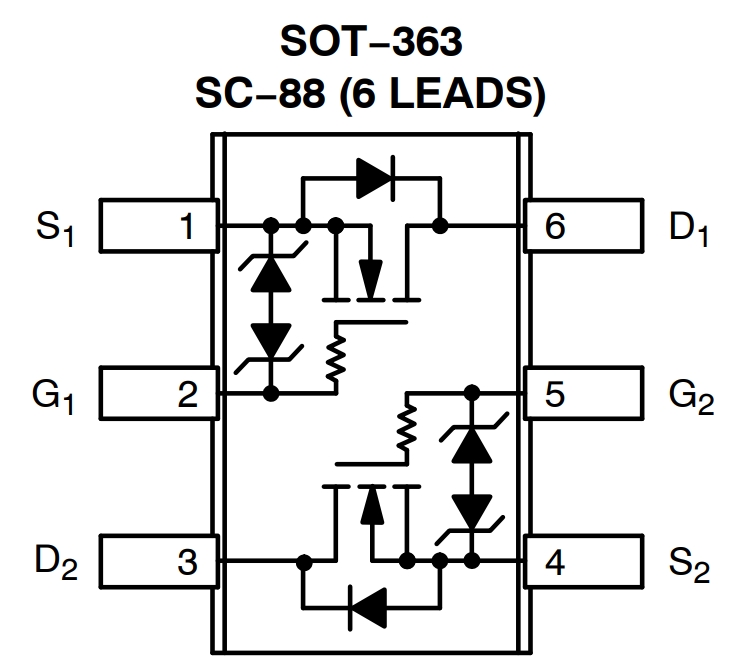

ON Semiconductor NTJD4001NT1G

Part No.:: NTJD4001NT1G

Manufacturer:: ON Semiconductor

Package:: 6-TSSOP, SC-88, SOT-363

Datasheet:: NTJD4001NT1G.pdf

Description:: MOSFET 2N-CH 30V 0.25A SOT-363

In Stock:: 2149

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

NTJD4001NT1G Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
FETType:
2 N-Channel (Dual)
FETFeature:
Standard
DraintoSourceVoltage(Vdss):
30V
Current-ContinuousDrain(Id)@25°C:
250mA
RdsOn(Max)@IdVgs:
1.5Ohm @ 10mA, 4V
Vgs(th)(Max)@Id:
1.5V @ 100µA
GateCharge(Qg)(Max)@Vgs:
1.3nC @ 5V
InputCapacitance(Ciss)(Max)@Vds:
33pF @ 5V
Power-Max:
272mW
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount
