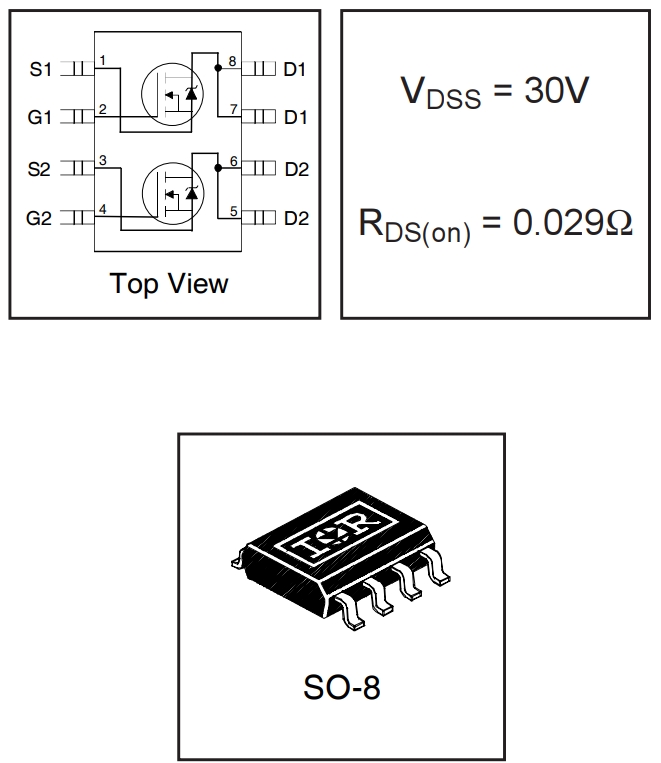

Infineon Technologies IRF7313TRPBF-1

Part No.:: IRF7313TRPBF-1

Manufacturer:: Infineon Technologies

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: IRF7313TRPBF-1.pdf

Description:: MOSFET 2N-CH 30V 8-SOIC

In Stock:: 3753

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

IRF7313TRPBF-1 Specifications

Packaging:
Tape & Reel (TR)
Series:
HEXFET®
ProductStatus:
Obsolete
FETType:
2 N-Channel (Dual)
FETFeature:
Standard
DraintoSourceVoltage(Vdss):
30V
Current-ContinuousDrain(Id)@25°C:
6.5A (Ta)
RdsOn(Max)@IdVgs:
29mOhm @ 5.8A, 10V
Vgs(th)(Max)@Id:
1V @ 250µA
GateCharge(Qg)(Max)@Vgs:
33nC @ 10V
InputCapacitance(Ciss)(Max)@Vds:
650pF @ 25V
Power-Max:
2W (Ta)
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount

IRF7313TRPBF-1 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including IRF7313TRPBF-1 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for IRF7313TRPBF-1 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

IRF7313TRPBF-1 information

Views：

IRF7313TRPBF-1 Typical application Circuitry

IRF7313TRPBF-1

There is a twin N-channel MOSFET chip called IRF7313TRPBF-1. It is frequently utilized in power management applications, especially in circuits for high-speed, low-voltage switching. The chip's small, dual MOSFET design makes it perfect for applications requiring great efficiency and quick switching times yet with limited area.

Uses:

1. Sources of Power: Power supply circuits can employ the IRF7313TRPBF-1 to effectively switch power to different components. Because of its quick switching rates and low on-resistance, it can be used in high-frequency applications.

2. Motor Control: The chip can also be utilized in circuits for motor control, where it can switch current to regulate a motor's speed and direction. It is appropriate for applications requiring precise motor control due to its high efficiency and quick switching times.

Specifications:

1. Maximum Allowable Voltage (Vds): The voltage that can be placed between each MOSFET's source and drain terminals. This is usually about 30V for the IRF7313TRPBF-1.

2. Continuous Drain Current (Id): The highest current that every MOSFET can handle on a constant basis. This is usually about 5.3A for the IRF7313TRPBF-1.

3. On-Resistance (Rds(on)): This is the resistance, at full power, between the MOSFET's source and drain terminals. This is usually approximately 0.045 ohms for the IRF7313TRPBF-1.

Circuit Design:

When designing a circuit using the IRF7313TRPBF-1, several factors need to be considered:

1. Gate Drive Circuit: The gate of each MOSFET needs to be driven with a sufficient voltage and current to ensure fast switching speeds and minimize power losses. A gate driver IC can be used to achieve this.

2. Heat Dissipation: The IRF7313TRPBF-1 can dissipate a significant amount of heat, especially at high currents. Adequate heat sinking should be provided to ensure the chip operates within its temperature limits.

3. Protection Circuits: Circuits should be included to protect the MOSFETs from over-voltage, over-current, and over-temperature conditions. This can include using flyback diodes and current limiting resistors.

4. Layout Considerations: The layout of the circuit board should minimize stray inductance and capacitance to ensure stable operation and minimize electromagnetic interference.

5. Voltage Spike Protection: To protect the MOSFETs from voltage spikes generated by inductive loads, such as motors, flyback diodes should be connected in parallel with each MOSFET, with the cathode connected to the drain and the anode connected to the power supply.

In summary, the IRF7313TRPBF-1 is a dual N-channel MOSFET chip commonly used in power management and motor control applications. When designing a circuit using this chip, factors such as gate drive circuitry, heat dissipation, protection circuits, layout considerations, and voltage spike protection should be taken into account to ensure reliable operation.
