ON Semiconductor FDS4935BZ

Part No.:: FDS4935BZ

Manufacturer:: ON Semiconductor

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: FDS4935BZ.pdf

Description:: MOSFET 2P-CH 30V 6.9A 8SOIC

In Stock:: 3031

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

FDS4935BZ Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
PowerTrench®
ProductStatus:
Active
FETType:
2 P-Channel (Dual)
FETFeature:
Logic Level Gate
DraintoSourceVoltage(Vdss):
30V
Current-ContinuousDrain(Id)@25°C:
6.9A
RdsOn(Max)@IdVgs:
22mOhm @ 6.9A, 10V
Vgs(th)(Max)@Id:
3V @ 250µA
GateCharge(Qg)(Max)@Vgs:
40nC @ 10V
InputCapacitance(Ciss)(Max)@Vds:
1360pF @ 15V
Power-Max:
900mW
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount

FDS4935BZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including FDS4935BZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for FDS4935BZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

FDS4935BZ information

Views：

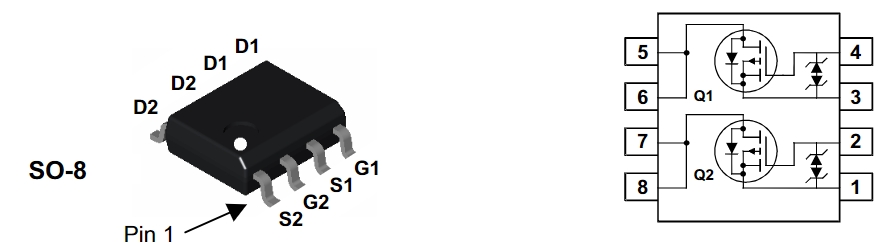

FDS4935BZ Typical application Circuitry

FDS4935BZ

The FDS4935BZ is a dual P-Channel MOSFET, designed for power switching and load management applications. Its dual P-Channel configuration makes it particularly suitable for applications that involve high-side switching with a common source configuration. Typical uses include power management in portable devices, load-switching applications, and as a component in complex power distribution systems like those found in computing and telecommunications equipment. A specific application for the FDS4935BZ is in a power management system for a portable device, such as a smartphone or tablet, where it can efficiently manage power distribution. Here's a detailed implementation:

1. Dual P-Channel MOSFET: The FDS4935BZ consists of two P-Channel MOSFETs in one package, making it ideal for high-side switching applications in power management circuits.

2. Use in Power Management Systems: This dual MOSFET is commonly used for power distribution and management in portable electronic devices, such as smartphones or tablets.

3. Circuit Integration for Power Distribution: In a power management system, the FDS4935BZ (pin 1 as gate of MOSFET1, pin 2 as common source, pin 3 as drain of MOSFET1, pin 4 as gate of MOSFET2, pin 5 as drain of MOSFET2) is used to control power flow to various components.

4. Gate Voltage Control for Switching: The gates of the two MOSFETs (pins 1 and 4) are connected to control circuits or microcontrollers, which modulate the gate voltages to turn the MOSFETs on or off, thereby managing the power to different parts of the device.

5. Voltage and Current Specifications: Ensuring the FDS4935BZ operates within its specified voltage and current limits is crucial for maintaining efficiency and preventing damage.

6. Thermal Management Considerations: Effective heat dissipation is necessary to prevent overheating, especially when handling high current loads.

7. Protective Circuitry: Including over-voltage, over-current, and thermal protection in the circuit design enhances the safety and longevity of the FDS4935BZ.

8. Circuit Stability Enhancement: Using additional components like resistors and capacitors helps stabilize the circuit and protect the FDS4935BZ from transient voltages and currents.

In summary, the FDS4935BZ, as a dual P-Channel MOSFET, is highly suitable for power management systems in portable electronic devices. Its dual MOSFET configuration allows for efficient power distribution and control, making it a valuable component in such applications. However, attention to electrical specifications, thermal management, and the inclusion of protective and stabilizing components is crucial for a successful and reliable circuit design.
