ON Semiconductor FDG6301N-F085

Part No.:: FDG6301N-F085

Manufacturer:: ON Semiconductor

Package:: 6-TSSOP, SC-88, SOT-363

Datasheet:: FDG6301N-F085.pdf

Description:: MOSFET 2N-CH 25V 0.22A SC70-6

In Stock:: 2838

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

FDG6301N-F085 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
Automotive, AEC-Q101
ProductStatus:
Obsolete
FETType:
2 N-Channel (Dual)
FETFeature:
Logic Level Gate
DraintoSourceVoltage(Vdss):
25V
Current-ContinuousDrain(Id)@25°C:
220mA
RdsOn(Max)@IdVgs:
4Ohm @ 220mA, 4.5V
Vgs(th)(Max)@Id:
1.5V @ 250µA
GateCharge(Qg)(Max)@Vgs:
0.4nC @ 4.5V
InputCapacitance(Ciss)(Max)@Vds:
9.5pF @ 10V
Power-Max:
300mW
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount

FDG6301N-F085 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including FDG6301N-F085 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for FDG6301N-F085 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

FDG6301N-F085 information

Views：

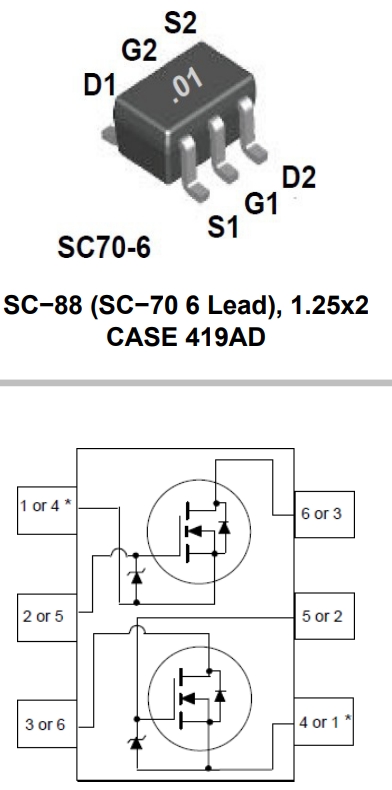

FDG6301N-F085 Typical application Circuitry

FDG6301N-F085

The FDG6301N-F085 is a semiconductor device, specifically a Dual N-Channel Logic Level Enhancement Mode Field Effect Transistor (FET). This type of FET is designed for applications that need efficient switching with logic level gate drive.

1. Dual N-Channel FET Configuration: The FDG6301N-F085 acts as a dual N-channel FET, making it ideal for compact designs where two separate N-channel FETs would be needed, saving space and simplifying the circuit.

2. Application in LED Lighting Control: A common application for the FDG6301N-F085 is in LED lighting control circuits. In these circuits, it can be used for switching LEDs on and off efficiently, especially where space is limited.

3. Characteristic Features: This FET is known for its low on-resistance, logic level gate drive compatibility, and high-speed switching capabilities, which are critical for controlling LEDs efficiently.

4. LED Lighting Control Circuit Setup: In an LED control circuit, connect the first N-channel Drain (pin 1) to the positive terminal of the LED, and the second N-channel Drain (pin 2) to another LED's positive terminal. Both N-channel Sources (pins 3 and 4) are connected to the ground. The Gates (pins 5 and 6) are connected to a microcontroller or a PWM (Pulse Width Modulation) controller. This setup allows precise control of LED on/off states and brightness, using PWM signals for dimming.

5. Optimizing for Switching Performance: When designing with the FDG6301N-F085, ensure that its operating parameters, such as voltage and current ratings, are compatible with the LED specifications for efficient performance.

6. Voltage Level Considerations: It's important to keep the gate-source voltages within the specified limits of the FDG6301N-F085 to avoid damaging the FET and to ensure reliable operation.

7. Heat Dissipation in Design: Even though the FDG6301N-F085 is efficient, managing heat in high-current or high-frequency applications is important. Appropriate heat sinking or thermal management techniques should be considered.

8. Incorporating Protection Mechanisms: Implementing protection features like overcurrent and electrostatic discharge (ESD) protection can help safeguard the FDG6301N-F085, especially important in LED lighting applications where the FETs can be exposed to various electrical stresses.

In conclusion, the FDG6301N-F085 Dual N-Channel FET is a highly suitable component for LED lighting control circuits, offering efficient performance in a compact size. When designing circuits with this FET, attention should be paid to its electrical specifications, voltage management, thermal handling, and protective measures to ensure optimal performance and longevity.
