Name: 2N7002VA
Brand: ON Semiconductor
SKU: 2N7002VA
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

ON Semiconductor 2N7002VA

Part No.:: 2N7002VA

Manufacturer:: ON Semiconductor

Package:: SOT-563, SOT-666

Datasheet:: 2N7002VA.pdf

Description:: MOSFET 2N-CH 60V 280MA SOT563F

In Stock:: 2699

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

2N7002VA Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
ProductStatus:
Active
FETType:
2 N-Channel (Dual)
FETFeature:
Logic Level Gate
DraintoSourceVoltage(Vdss):
60V
Current-ContinuousDrain(Id)@25°C:
280mA
RdsOn(Max)@IdVgs:
7.5Ohm @ 50mA, 5V
Vgs(th)(Max)@Id:
2.5V @ 250µA
GateCharge(Qg)(Max)@Vgs:
-
InputCapacitance(Ciss)(Max)@Vds:
50pF @ 25V
Power-Max:
250mW
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount

2N7002VA this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 2N7002VA price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 2N7002VA to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

2N7002VA information

Views：

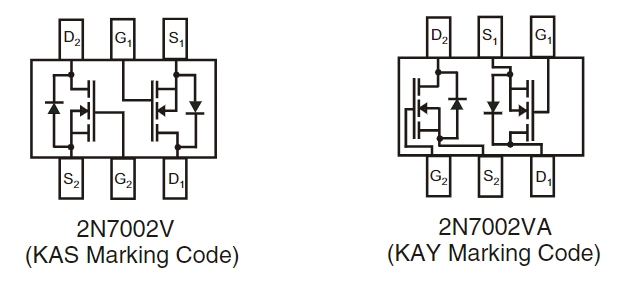

2N7002VA Typical application Circuitry

2N7002VA

2N7002VA is a type of N-channel enhancement mode Field-Effect Transistor (FET), specifically a small signal MOSFET. It's used in a variety of electronic applications, especially when a switching element is needed that consumes very little gate drive power.

Application scenarios:

1. 2N7002VA can be used for digital switching applications.

2. It's used for low power signal switching.

3. It can serve as a level shifter.

4. Power management in portable devices.

Parameter features:

1. Drain-Source Voltage (Vds): Typically up to 60V.

2. Drain Current (Id): Around 300mA.

3. Gate Threshold Voltage (Vgs(th)): Often between 1V to 2.5V.

4. Low on-resistance (Rds(on)).

5. Fast switching speeds.

Example application scenario: Using 2N7002VA as a low-power switch to control an LED.

1. Component Placement:

Place the 2N7002VA such that its Drain pin is connected to one terminal of the LED, and the Source pin is connected to the ground.

2. Resistor Choice:

Place a current limiting resistor (value depending on LED specs, say 330 ohms for a typical red LED with 20mA current) between the positive voltage source (for instance, 5V) and the other terminal of the LED.

3. Gate Control:

Connect a microcontroller output pin (e.g., GPIO pin) to the Gate of the 2N7002VA. When the microcontroller outputs a HIGH signal, the MOSFET turns on, and the LED lights up. When it outputs a LOW signal, the MOSFET turns off, and the LED goes off.

4. Pull-Down Resistor:

To ensure the 2N7002VA remains off when the microcontroller pin is in a floating state (neither high nor low), connect a pull-down resistor (e.g., 10k ohms) from the Gate to the ground. This keeps the Gate voltage at 0V (ground) unless explicitly driven HIGH by the microcontroller.

Design considerations:

- Threshold Voltage: Ensure the microcontroller's output voltage is sufficient to surpass the Vgs(th) of the 2N7002VA to ensure it fully turns on.

- Heat Dissipation: Although 2N7002VA is designed for low power applications, always consider heat dissipation. If using close to its max current, ensure there's adequate heat sinking or airflow.

- ESD Precautions: MOSFETs, including the 2N7002VA, are susceptible to Electrostatic Discharge. Ensure you handle and store them properly to prevent premature failure.

- Voltage Ratings: Never exceed the Drain-Source voltage rating or the Gate-Source voltage rating. Always leave a margin for safety.

In conclusion, the 2N7002VA offers a combination of features suitable for many electronic applications, especially those requiring low power and fast switching. Proper understanding of its characteristics and appropriate design considerations will ensure it operates reliably in any chosen application.
