What is the Additional Feature ?

Name: 2N7002PS/ZLH
Brand: Nexperia USA Inc.
SKU: 2N7002PS/ZLH
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Nexperia USA Inc. 2N7002PS/ZLH

Part No.:: 2N7002PS/ZLH

Manufacturer:: Nexperia USA Inc.

Package:: 6-TSSOP, SC-88, SOT-363

Datasheet:: 2N7002PS/ZLH.pdf

Description:: MOSFET 2 N-CH 60V 320MA SOT363

In Stock:: 3181

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

2N7002PS/ZLH Specifications

Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Obsolete
FETType:
2 N-Channel (Dual)
FETFeature:
Logic Level Gate
DraintoSourceVoltage(Vdss):
60V
Current-ContinuousDrain(Id)@25°C:
320mA (Ta)
RdsOn(Max)@IdVgs:
1.6Ohm @ 500mA, 10V
Vgs(th)(Max)@Id:
2.4V @ 250µA
GateCharge(Qg)(Max)@Vgs:
0.8nC @ 4.5V
InputCapacitance(Ciss)(Max)@Vds:
50pF @ 10V
Power-Max:
990mW
OperatingTemperature:
150°C (TJ)
MountingType:
Surface Mount

2N7002PS/ZLH this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 2N7002PS/ZLH price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 2N7002PS/ZLH to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

2N7002PS/ZLH information

Views：

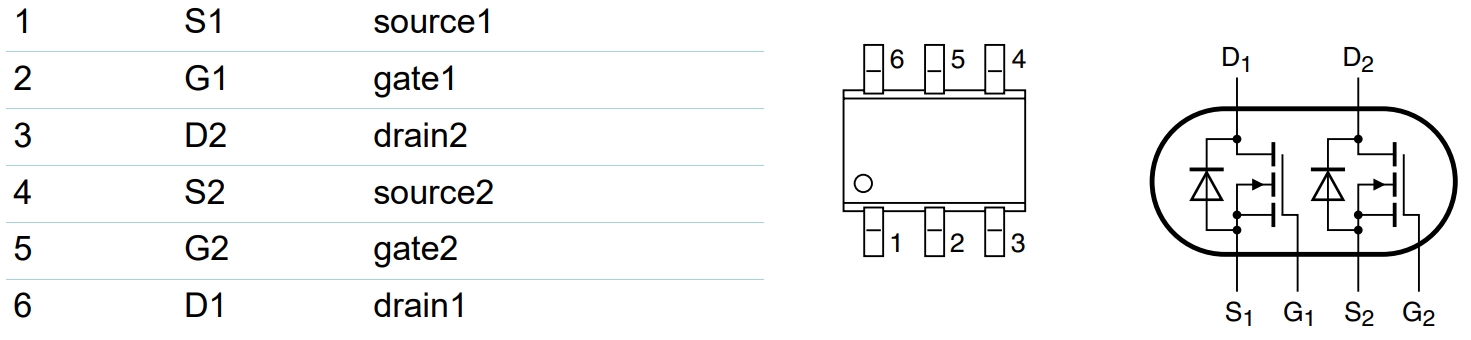

2N7002PS/ZLH Typical application Circuitry

2N7002PS/ZLH is a small signal N-channel MOSFET. In essence, it's a field-effect transistor (FET) commonly used in electronic circuits to switch and amplify signals. Let's dive into its details:

Functionality:

The 2N7002PS/ZLH is designed to switch electronic signals and power. It activates (allows current to flow) when a positive voltage is supplied to its gate in relation to its source since it is an N-channel MOSFET.

Application Scenarios:

- Switching applications: Used to turn circuits or components on/off.

- It is possible to utilize amplifier circuits to boost weak signals.

- Level shifting: For interfacing between circuits operating at different voltage levels.

- PWM circuits: Used in pulse-width modulation schemes for motor control, lighting, and more.

Key Parameters:

- Drain-Source Voltage (VDS): Typically the maximum voltage the device can handle between its drain and source.

- The voltage at which a MOSFET starts to switch on is known as the gate-threshold voltage (VGS(th)).

- Continuous Drain Current (ID): The maximum current that can continuously flow from the drain to the source.

- RDS(on): Resistance between drain and source when the MOSFET is on. A lower RDS(on) means the MOSFET will dissipate less power.

Example Application: Using 2N7002PS/ZLH as a Switch:

Scenario: We have a microcontroller operating at 3.3V and want to control a 12V LED using the 2N7002PS/ZLH MOSFET.

1. Connection:

- Connect the microcontroller's digital output pin to the gate (G).

- Source (S): Connect to the ground (0V) of the system.

- Drain (D): Connect to one terminal of the 12V LED. The other terminal of the LED connects to the positive of the 12V supply.

2. Resistor:

- Gate resistor: Connect a 10kΩ resistor between the Gate and ground. This ensures the MOSFET remains off when the microcontroller output is floating.

3. Protection:

- Flyback diode: If switching inductive loads like motors, connect a diode in parallel to the load, with the cathode connected to the 12V supply and the anode to the Drain. This diode protects the 2N7002PS/ZLH from voltage spikes.

Design Considerations:

1. Gate Drive: Ensure that the microcontroller can provide a high enough voltage to fully turn on the 2N7002PS/ZLH. If VGS(th) is low, a 3.3V microcontroller can easily drive it.

2. Power Dissipation: Ensure the 2N7002PS/ZLH doesn't dissipate more power than it can handle. Use the formula P = I^2 * RDS(on) to estimate power dissipation.

3. Safety: If driving high currents, it's essential to use heat sinks and ensure adequate ventilation to prevent overheating.

4. Turn-on/turn-off speed: For high-frequency applications, the switching speed of the MOSFET may be a concern. Ensure the 2N7002PS/ZLH can switch fast enough for your application.

In conclusion, the 2N7002PS/ZLH is a versatile N-channel MOSFET suitable for a wide range of applications, from switching to amplification. Always remember to consult the datasheet for the most accurate and up-to-date information when designing circuits.

2N7002PS/ZLH FAQ

1. How to order 2N7002PS/ZLH on icwhale.com?

Currently, icwhale.com only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does icwhale.com guarantee that 2N7002PS/ZLH is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the 2N7002PS/ZLH. All suppliers must pass our qualification reviews before they can publish their products including 2N7002PS/ZLH on icwhale.com; we pay more attention to the channels and quality of 2N7002PS/ZLH products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the 2N7002PS/ZLH price and inventory displayed accurate?

The price and inventory of 2N7002PS/ZLH fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of 2N7002PS/ZLH?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the 2N7002PS/ZLH we delivered, we will accept the replacement or return of the 2N7002PS/ZLH only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of 2N7002PS/ZLH.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations
