Name: 2N7002DWA-7
Brand: Diodes Incorporated
SKU: 2N7002DWA-7
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Diodes Incorporated 2N7002DWA-7

Part No.:: 2N7002DWA-7

Manufacturer:: Diodes Incorporated

Package:: 6-TSSOP, SC-88, SOT-363

Datasheet:: 2N7002DWA-7.pdf

Description:: MOSFET 2N-CH 60V 0.18A SOT363

In Stock:: 3020

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

2N7002DWA-7 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Obsolete
FETType:
2 N-Channel (Dual)
FETFeature:
Logic Level Gate
DraintoSourceVoltage(Vdss):
60V
Current-ContinuousDrain(Id)@25°C:
180mA
RdsOn(Max)@IdVgs:
6Ohm @ 115mA, 10V
Vgs(th)(Max)@Id:
2.5V @ 250µA
GateCharge(Qg)(Max)@Vgs:
0.87nC @ 10V
InputCapacitance(Ciss)(Max)@Vds:
22pF @ 25V
Power-Max:
300mW
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount

2N7002DWA-7 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 2N7002DWA-7 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 2N7002DWA-7 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

2N7002DWA-7 information

Views：

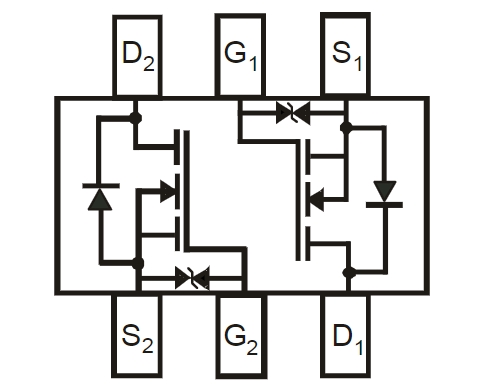

2N7002DWA-7 Typical application Circuitry

2N7002DWA-7

2N7002DWA-7 stands out as an N-channel enhancement-mode MOSFET transistor in the expansive realm of electronics. This device serves as a fundamental building block in numerous electronic circuits due to its capability to switch and amplify signals.

Role of the 2N7002DWA-7:

The primary function of the 2N7002DWA-7 is to act as an electronic switch. By applying a voltage to its gate terminal, one can control the flow of current between its source and drain.

Areas of Deployment:

1. Load control: For turning devices on/off.

2. Signal amplification: Enhancing the amplitude of input signals.

3. Logic gates: Crafting the bedrock of digital devices.

4. Level shifting: bridging the gap between equipment using various voltages.

5. Power management in various consumer electronics.

Characteristic Traits:

- VDS (Drain-Source Voltage): The maximum voltage the MOSFET can handle between its drain and source without undergoing damage.

- ID (Continuous Drain Current): The maximum current that can flow through the drain under constant operation.

- VGS(th) (Gate Threshold Voltage): The minimum voltage required at the gate for the MOSFET to conduct.

- RDS(on) (On-Resistance): Resistance between the drain and source when the MOSFET is turned on.

Usage Scenario: Level Shifting:

To illustrate, consider a scenario where we are interfacing a 5V microcontroller with a 3.3V device. The 2N7002DWA-7 can be employed to ensure compatible communication between the two.

1. Purpose:

To use 2N7002DWA-7 for achieving level shifting from 5V to 3.3V.

2. Crafting the Circuit:

- Gate Integration: Connect the 2N7002DWA-7 gate to the microcontroller's output pin.

- Drain Liaison: Link the drain terminal of 2N7002DWA-7 to the input of the 3.3V device.

- Source Connection: Bind the source pin of the 2N7002DWA-7 to the ground (0V).

- Resistor Implementation: Position a pull-up resistor (typically 10kΩ) between the 2N7002DWA-7 drain and the 3.3V supply.

3. Factors to Mull Over:

- Voltage Specifications: Ensure that the voltage levels are compatible and don't surpass the 2N7002DWA-7 limits.

- Speed Constraints: Given its intrinsic capacitance, 2N7002DWA-7 might introduce minor delays; critical for high-speed applications.

- Power Consumption: In scenarios of prolonged activation, the device might heat up, warranting thermal management strategies.

- Gate Protection: A low-value resistor (around 100Ω) could be placed at the gate to shield 2N7002DWA-7 from potential high-frequency noise.

Whenever venturing into designing with 2N7002DWA-7, always having the datasheet within arm's reach is a sagacious move, ensuring an accurate and safe application.
