Name: PD54008-E
Brand: STMicroelectronics
SKU: PD54008-E
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

STMicroelectronics PD54008-E

Part No.:: PD54008-E

Manufacturer:: STMicroelectronics

Package:: PowerSO-10 Exposed Bottom Pad

Datasheet:: PD54008-E.pdf

Description:: FET RF 25V 500MHZ PWRSO10

In Stock:: 3264

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

PD54008-E Specifications

Packaging:
Tube
Series:
-
ProductStatus:
Active
TransistorType:
LDMOS
Frequency:
500MHz
Gain:
11.5dB
Voltage-Test:
7.5 V
CurrentRating(Amps):
5A
NoiseFigure:
-
Current-Test:
150 mA
Power-Output:
8W
Voltage-Rated:
25 V

PD54008-E this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including PD54008-E price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for PD54008-E to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

PD54008-E information

Views：

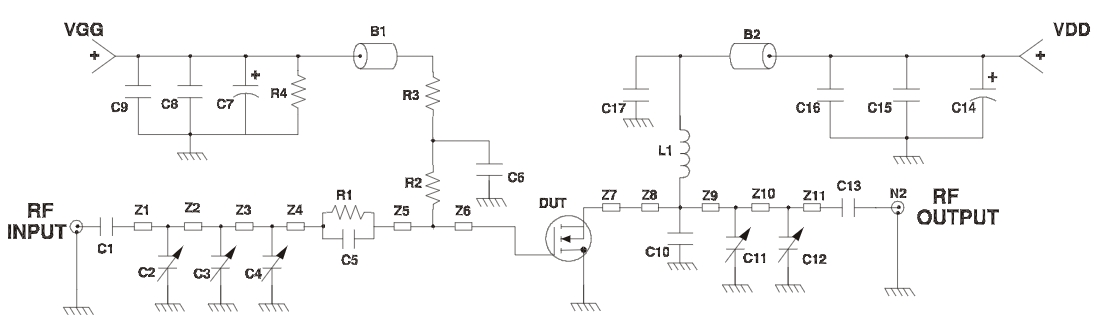

PD54008-E Typical application Circuitry
