What is the Additional Feature ?

Name: DLW5BTN251SQ2L
Brand: Murata Electronics
SKU: DLW5BTN251SQ2L
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Murata Electronics DLW5BTN251SQ2L

Part No.:: DLW5BTN251SQ2L

Manufacturer:: Murata Electronics

Package:

Datasheet:: DLW5BTN251SQ2L.pdf

Description:: CMC 5A 2LN 250 OHM SMD

In Stock:: 2253

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

DLW5BTN251SQ2L Specifications

Package/Case:
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
DLW5B
ProductStatus:
Obsolete
FilterType:
Power, Signal Line
NumberofLines:
2
Impedance@Frequency:
250 Ohms @ 100 MHz
Inductance@Frequency:
-
CurrentRating(Max):
5A
DCResistance(DCR)(Max):
14mOhm (Typ)
VoltageRating-DC:
50V
VoltageRating-AC:
-
OperatingTemperature:
-40°C ~ 85°C
Ratings:
-
ApprovalAgency:
-
Features:
-
MountingType:
Surface Mount
Size/Dimension:
0.197 L x 0.197 W (5.00mm x 5.00mm)
Height(Max):
0.098 (2.50mm)

DLW5BTN251SQ2L this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including DLW5BTN251SQ2L price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for DLW5BTN251SQ2L to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

DLW5BTN251SQ2L information

Views：

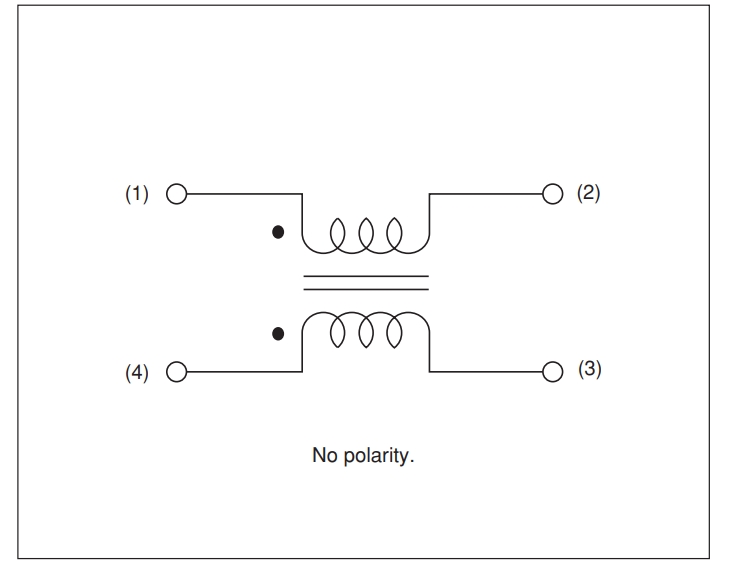

DLW5BTN251SQ2L Typical application Circuitry

DLW5BTN251SQ2L

The DLW5BTN251SQ2L is a sophisticated common mode choke coil designed primarily for filtering and suppressing noise in various electronic circuits. This component is particularly effective in scenarios where electromagnetic interference (EMI) could detrimentally affect the functionality and reliability of sensitive electronic devices, such as in advanced computing systems or intricate communication devices. The DLW5BTN251SQ2L is instrumental in maintaining signal fidelity and enhancing the overall efficiency of electronic systems by eliminating unwanted noise and interference.

Application Context: Power Line Noise Suppression in Computing Devices

The DLW5BTN251SQ2L is frequently employed in the power lines of computing devices to suppress noise, ensuring stable and reliable operation, given the susceptibility of these devices to power-related disturbances.

In-depth Circuit Connection Overview

1. Pin Designation and Connection Strategy: The DLW5BTN251SQ2L features a designated pin layout for optimal functionality. In the context of power line noise suppression, pins 1 and 3 are generally connected to the power line (VCC) and ground line (GND), respectively, for filtering the noise in the power supply. Pins 2 and 4 are typically left unconnected or connected to an additional filtering ground, depending on the specific circuit requirements.

2. Strategic Placement of Component: The efficacy of the DLW5BTN251SQ2L is maximized by positioning it as close as possible to the power source or the component that requires protection from noise, thereby reducing the potential for noise induction along the power lines.

3. Optimizing Trace Layout: The PCB traces connecting the DLW5BTN251SQ2L to the power source or protected component should be as direct and short as possible, minimizing the chance of electromagnetic interference affecting the traces.

4. Grounding Scheme Implementation: A robust grounding scheme is critical, with a substantial ground plane situated beneath and around the DLW5BTN251SQ2L to serve as a shield against noise intrusion.

Fundamental Design Considerations

1. Adherence to Impedance Matching: Ensuring that the impedance characteristics of the DLW5BTN251SQ2L align with those of the power lines is crucial to prevent signal reflection and ensure optimal noise suppression.

2. Thermal Regulation Considerations: The DLW5BTN251SQ2L may generate heat under certain conditions, particularly in high-current environments. It's essential to incorporate effective thermal management strategies to keep the component within safe operational temperature limits.

3. Maintaining Mechanical Integrity: Secure and accurate soldering of the DLW5BTN251SQ2L is paramount to prevent mechanical stress and ensure long-term reliability of the component and the overall circuit.

4. Rigorous Testing Protocols: After integrating the DLW5BTN251SQ2L into the circuit, comprehensive testing, including noise level measurement and operational stability tests, is essential to verify that the choke effectively reduces noise without compromising the performance of the computing device.

In summary, the DLW5BTN251SQ2L is a critical component for achieving noise suppression in complex electronic circuits, particularly in the power lines of computing devices. Detailed attention to circuit design, including precise component placement, impedance consideration, thermal management, and extensive testing, is crucial to fully exploit the capabilities of the DLW5BTN251SQ2L in enhancing the reliability and performance of electronic systems.
