Murata Electronics DLW21SN900HQ2L

Part No.:: DLW21SN900HQ2L

Manufacturer:: Murata Electronics

Package:

Datasheet:: DLW21SN900HQ2L.pdf

Description:: CMC 280MA 2LN 90 OHM SMD

In Stock:: 2177

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

DLW21SN900HQ2L this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including DLW21SN900HQ2L price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for DLW21SN900HQ2L to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

Views：

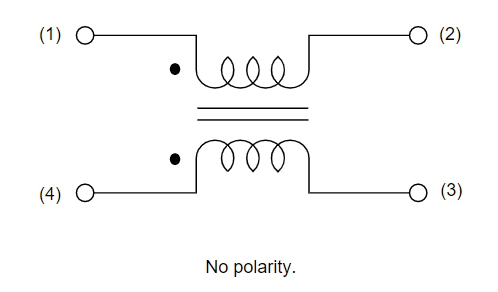

DLW21SN900HQ2L Typical application Circuitry

DLW21SN900HQ2L

The DLW21SN900HQ2L is a common mode choke, an electronic component used primarily for suppressing common mode electromagnetic interference (EMI) in various electronic circuits. These chokes are critical in applications where high-frequency noise can disrupt the functionality of electronic devices.

Application Scenarios

The DLW21SN900HQ2L is typically used in:

- USB interfaces for noise suppression.

- Ethernet cables to reduce EMI.

- Signal lines in mobile devices to enhance signal quality.

- Digital communication ports in consumer electronics.

Parameter Features

Key characteristics of the DLW21SN900HQ2L include:

- High common mode impedance at relevant frequencies.

- Compact surface-mount design suitable for high-density circuit boards.

- Low differential mode impedance to maintain signal integrity.

- Suppresses common mode noise in high-speed data lines effectively; intended for use in digital data transmission applications at high speeds.

EMI reduction using an Ethernet cable for circuit connection

An example application in an Ethernet cable for EMI reduction:

Placement in Ethernet Line

- Location: Next to a device's Ethernet port. - Purpose: To suppress common mode noise in the Ethernet lines.

- Connection Method: Route the TX+ and TX- (transmit) and RX+ and RX- (receive) lines of the Ethernet cable through the DLW21SN900HQ2L. Each pair should pass through the choke's internal filter circuit.

Orientation and Mounting

- Location: On the printed circuit board (PCB) near the Ethernet port.

- Goal: To increase noise suppression's efficacy. - Connection Method: Solder the DLW21SN900HQ2L onto the PCB, adhering to the recommended orientation and footprint for optimal EMI suppression.

Signal Integrity Consideration

- Location: Relative to the Ethernet lines.

- Purpose: To ensure the choke does not negatively affect the Ethernet signal quality.

- Connection Method: Position the DLW21SN900HQ2L at an appropriate distance from the Ethernet port to effectively suppress noise while maintaining signal integrity.

Heat Dissipation

- Location: General placement within the circuit.

- Purpose: To maintain the performance and durability of the choke.

- Connection Method: Ensure that the DLW21SN900HQ2L is placed in an area of the PCB with minimal exposure to heat from other components.

Design-Related Issues

When creating circuits with the DLW21SN900HQ2L, take into account:

- Impedance Matching: The choke's impedance should be compatible with the Ethernet line to effectively suppress noise.

- Physical Size and Layout: Account for the component's size and positioning on the PCB for efficient assembly and optimal performance.

- Thermal Management: Consider the thermal environment to ensure the choke operates within its temperature range.

- Signal Integrity: Ensure that the placement of the choke does not degrade the Ethernet data signals.

In conclusion, the DLW21SN900HQ2L is essential in applications like Ethernet cable EMI reduction, where its ability to suppress common mode noise while preserving signal integrity is crucial. Proper integration, considering impedance, physical layout, thermal aspects, and signal quality, is key to its successful use in electronic systems.

DLW21SN900HQ2L information

DLW21SN900HQ2L Specifications

Package/Case:
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
DLW21
ProductStatus:
Active
FilterType:
Signal Line
NumberofLines:
2
Impedance@Frequency:
90 Ohms @ 100 MHz
Inductance@Frequency:
-
CurrentRating(Max):
280mA
DCResistance(DCR)(Max):
410mOhm
VoltageRating-DC:
20V
VoltageRating-AC:
-
OperatingTemperature:
-40°C ~ 85°C
Ratings:
-
ApprovalAgency:
-
Features:
-
MountingType:
Surface Mount
Size/Dimension:
0.079 L x 0.047 W (2.00mm x 1.20mm)
Height(Max):
0.055 (1.40mm)

DLW21SN900HQ2L FAQ

1. How to order DLW21SN900HQ2L on icwhale.com?

Currently, icwhale.com only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does icwhale.com guarantee that DLW21SN900HQ2L is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the DLW21SN900HQ2L. All suppliers must pass our qualification reviews before they can publish their products including DLW21SN900HQ2L on icwhale.com; we pay more attention to the channels and quality of DLW21SN900HQ2L products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the DLW21SN900HQ2L price and inventory displayed accurate?

The price and inventory of DLW21SN900HQ2L fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of DLW21SN900HQ2L?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the DLW21SN900HQ2L we delivered, we will accept the replacement or return of the DLW21SN900HQ2L only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of DLW21SN900HQ2L.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations
