Murata Electronics DLW5BTM102TQ2L

Part No.:: DLW5BTM102TQ2L

Manufacturer:: Murata Electronics

Package:

Datasheet:: DLW5BTM102TQ2L.pdf

Description:: CMC 2.5A 2LN 1KOHM SMD

In Stock:: 3870

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

DLW5BTM102TQ2L this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including DLW5BTM102TQ2L price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for DLW5BTM102TQ2L to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

Views：

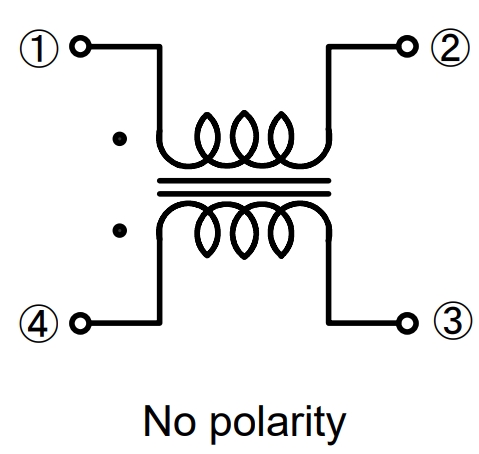

DLW5BTM102TQ2L Typical application Circuitry

DLW5BTM102TQ2L

DLW5BTM102TQ2L is a compact, high-current common mode choke coil designed to suppress electromagnetic interference (EMI) in electronic circuits. It is particularly effective at filtering out noise on both signal and power lines while maintaining signal integrity, making it highly suitable for various applications including consumer electronics, automotive systems, and industrial machinery where space is limited, and high-density mounting is required.

Application Scenario: EMI Suppression in Compact DC-DC Converters

In compact DC-DC converters, which are commonly used in portable electronic devices, maintaining power quality is crucial. DLW5BTM102TQ2L can be used to suppress noise in the DC power lines, ensuring stable operation of the device. Here's how to integrate DLW5BTM102TQ2L into a compact DC-DC converter circuit:

1. Analyze the EMI Profile: Determine potential EMI sources in the DC-DC converter circuit. Noise can originate from the switching action of the converter, external interference, or the load itself.

2. Strategic Placement of DLW5BTM102TQ2L: Place the DLW5BTM102TQ2L near the input or output of the DC-DC converter. This ensures that the choke effectively filters out noise at critical points of the power path.

3. Integration into DC Power Lines: Connect DLW5BTM102TQ2L to the DC power lines of the converter. Typically, this involves connecting the positive line to pins 1 and 2, and the negative or ground line to pins 3 and 4 of the DLW5BTM102TQ2L. Short and direct connections are crucial for effective noise suppression.

4. Ensure Robust Grounding: While DLW5BTM102TQ2L is primarily used for filtering common mode noise, having a solid grounding scheme in your circuit is essential. An effective ground plane provides a path for noise dissipation, enhancing the overall EMI suppression capability.

5. Conduct Comprehensive Testing: After incorporating DLW5BTM102TQ2L into your DC-DC converter circuit, perform thorough testing. Use a spectrum analyzer or similar tools to measure the noise levels, confirming that the DLW5BTM102TQ2L is effectively reducing noise without impacting the converter's performance.

Circuit Design Considerations with DLW5BTM102TQ2L

When designing your circuit with DLW5BTM102TQ2L, bear in mind the following:

- Current Handling: Verify that the current rating of DLW5BTM102TQ2L aligns with the operational current levels in your converter to prevent overheating or potential damage.

- Impedance Compatibility: The impedance of DLW5BTM102TQ2L should be compatible with your circuit to ensure efficient noise suppression without causing signal reflections or power loss.

- Temperature Range: DLW5BTM102TQ2L operates within specific temperature parameters. Ensure that your circuit conditions stay within these limits to maintain optimal performance.

- Optimize Circuit Layout: Minimize the trace lengths to and from DLW5BTM102TQ2L to reduce the chance of EMI pickup and ensure efficient noise suppression.

In conclusion, DLW5BTM102TQ2L is an effective solution for mitigating EMI in compact DC-DC converters, ensuring stable operation and enhancing the reliability of portable electronic devices. Proper integration, along with meticulous attention to circuit design details, is key to fully leveraging its capabilities, ensuring clean power conversion and adherence to EMI standards.

DLW5BTM102TQ2L information

DLW5BTM102TQ2L Specifications

Package/Case:
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
DLW5B
ProductStatus:
Active
FilterType:
Power Line
NumberofLines:
2
Impedance@Frequency:
1 kOhms @ 100 MHz
Inductance@Frequency:
-
CurrentRating(Max):
2.5A
DCResistance(DCR)(Max):
34mOhm
VoltageRating-DC:
50V
VoltageRating-AC:
-
OperatingTemperature:
-40°C ~ 105°C
Ratings:
-
ApprovalAgency:
-
Features:
-
MountingType:
Surface Mount
Size/Dimension:
0.197 L x 0.197 W (5.00mm x 5.00mm)
Height(Max):
0.098 (2.50mm)
