Name: ACM4520V-142-2P-T00
Brand: TDK Corporation
SKU: ACM4520V-142-2P-T00
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

TDK Corporation ACM4520V-142-2P-T00

Part No.:: ACM4520V-142-2P-T00

Manufacturer:: TDK Corporation

Package:

Datasheet:

Description:: CMC 1A 2LN 1.4KOHM SMD AEC-Q200

In Stock:: 2544

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ACM4520V-142-2P-T00 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ACM4520V-142-2P-T00 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ACM4520V-142-2P-T00 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

Views：

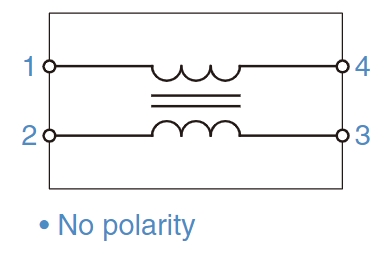

ACM4520V-142-2P-T00 Typical application Circuitry

ACM4520V-142-2P-T00

The ACM4520V-142-2P-T00 is a common mode choke coil.Suppressing radio frequency interference (RFI) and electromagnetic interference (EMI) in electrical circuits is its main goal. This component is critical for enhancing noise immunity in various applications, particularly in environments with significant electromagnetic disturbances.

Application Scenarios

A typical application of the ACM4520V-142-2P-T00 is in automotive electronics, especially in vehicle communication systems, where it helps maintain signal integrity in sensor and communication circuits, ensuring reliable operation.

Parameter Features

The ACM4520V-142-2P-T00 features high impedance at common mode noise frequencies, low DC resistance, and the ability to handle moderate currents.Because of these qualities, it can be used in automotive applications where efficiency and dependability are crucial.

Specific Circuit Connection for Vehicle Communication Systems

Sensor Signal Line Noise Suppression

- Install the ACM4520V-142-2P-T00 in the signal lines from automotive sensors, such as speed sensors or parking sensors.

- Key Integration: This placement is vital for filtering out EMI/RFI that can disrupt sensor signal accuracy.

Power Supply Filtering

- Employ the ACM4520V-142-2P-T00 in the power supply lines to the vehicle's communication system components.

- Essential Role: This position helps to minimize noise from the power source, which could affect the performance of communication modules.

Optimized PCB Layout

- Design the PCB layout to minimize the loop area around the ACM4520V-142-2P-T00 for effective noise suppression.

- Layout Strategy: A well-planned layout enhances the choke's efficiency in reducing EMI.

Considerations in Circuit Design

- Electrical Compatibility: Ensure that ACM4520V-142-2P-T00's specifications match the electrical requirements of the vehicle's communication systems.

- Space Constraints: Given the limited space in automotive electronics, choose a ACM4520V-142-2P-T00 that is compact and fits within the design.

- Heat Dissipation: Account for the thermal impact of ACM4520V-142-2P-T00 in the circuit design, particularly in the confined spaces of a vehicle.

- Reliability and Durability: Automotive applications demand components that can withstand harsh conditions, making the robustness of ACM4520V-142-2P-T00 crucial.

In conclusion, the ACM4520V-142-2P-T00 is vital for reducing EMI in automotive communication systems, requiring careful integration into the circuit for optimal noise suppression and ensuring system reliability.

ACM4520V-142-2P-T00 information

ACM4520V-142-2P-T00 Specifications

Package/Case:
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
ACM-V
ProductStatus:
Active
FilterType:
Power Line
NumberofLines:
2
Impedance@Frequency:
1.4 kOhms @ 100 MHz
Inductance@Frequency:
-
CurrentRating(Max):
1A
DCResistance(DCR)(Max):
80mOhm
VoltageRating-DC:
50V
VoltageRating-AC:
-
OperatingTemperature:
-40°C ~ 125°C
Ratings:
AEC-Q200
ApprovalAgency:
-
Features:
-
MountingType:
Surface Mount
Size/Dimension:
0.185 L x 0.177 W (4.70mm x 4.50mm)
Height(Max):
0.079 (2.00mm)
