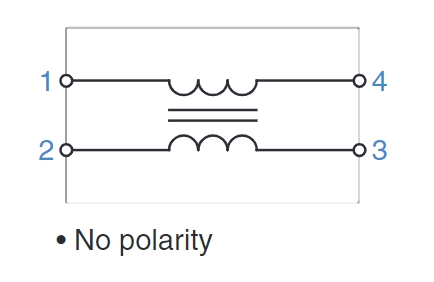

ACM2012H-900-2P-T05 Typical application Circuitry

ACM2012H-900-2P-T05

The ACM2012H-900-2P-T05 is a common mode choke coil. Its primary purpose is to suppress electromagnetic interference (EMI) and radio frequency interference (RFI) in electronic circuits. This component is crucial for improving noise immunity, particularly in environments with significant electromagnetic disturbances.

Application Scenarios

A typical application for the ACM2012H-900-2P-T05 is in communication devices, such as smartphones or wireless modems, where it helps maintain signal integrity by filtering out unwanted noise from both data and power lines.

Parameter Features

The ACM2012H-900-2P-T05 features high impedance at common mode noise frequencies, low DC resistance, and the ability to handle moderate currents. These characteristics make it particularly useful in communication devices where maintaining signal quality is essential.

Specific Circuit Connection for Communication Devices

Data Line Noise Suppression

- Integrate the ACM2012H-900-2P-T05 into the data transmission lines of the communication device.

- Critical Implementation: This setup is vital for filtering out EMI/RFI that can disrupt data transmission, thus ensuring signal integrity.

Power Supply Filtering

- Use the ACM2012H-900-2P-T05 in the power supply lines to the communication device.

- Essential Application: Positioning it here minimizes noise originating from the power source or induced in power lines.

Optimized PCB Layout

- Design the PCB layout to minimize the loop area around the ACM2012H-900-2P-T05 for efficient noise suppression.

- Layout Strategy: A well-thought-out layout significantly enhances the choke's effectiveness in reducing EMI.

Considerations in Circuit Design

- Electrical Compatibility: Ensure the electrical characteristics of ACM2012H-900-2P-T05 match the specifications of the communication device.

- Space Efficiency: Given the compact nature of communication devices, select a ACM2012H-900-2P-T05 with an appropriate size.

- Heat Dissipation: Account for heat generation from the ACM2012H-900-2P-T05 in the circuit design.

- Environmental Factors: Communication devices often operate in diverse environments, so the durability of ACM2012H-900-2P-T05 against varying conditions is key.

In conclusion, the ACM2012H-900-2P-T05 is a vital component in managing EMI in communication devices, requiring thoughtful integration into the circuit for optimal noise suppression and signal integrity.

ACM2012H-900-2P-T05 information

ACM2012H-900-2P-T05 Specifications

Package/Case:
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
ACM-H
ProductStatus:
Active
FilterType:
Signal Line
NumberofLines:
2
Impedance@Frequency:
90 Ohms @ 100 MHz
Inductance@Frequency:
-
CurrentRating(Max):
300mA
DCResistance(DCR)(Max):
300mOhm
VoltageRating-DC:
20V
VoltageRating-AC:
-
OperatingTemperature:
-40°C ~ 85°C
Ratings:
-
ApprovalAgency:
-
Features:
-
MountingType:
Surface Mount
Size/Dimension:
0.079 L x 0.047 W (2.00mm x 1.20mm)
Height(Max):
0.051 (1.30mm)
