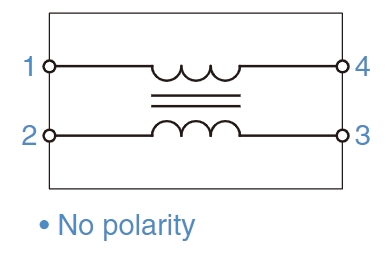

ACM4520-142-2P-T000 Typical application Circuitry

ACM4520-142-2P-T000

The ACM4520-142-2P-T000 is a common mode choke coil. It is mostly used in electrical circuits to reduce electromagnetic interference (EMI) and radio frequency interference (RFI). This component is crucial for enhancing noise immunity, particularly in environments with significant electromagnetic disturbances.

Application Scenarios

A notable application of the ACM4520-142-2P-T000 is in automotive electronics, specifically in advanced driver-assistance systems (ADAS). In these systems, it helps maintain signal integrity in sensor and communication circuits, ensuring reliable operation.

Parameter Features

The ACM4520-142-2P-T000 features high impedance at common mode noise frequencies, low DC resistance, and the ability to handle moderate currents. Because of these qualities, it can be used in automotive applications where efficiency and dependability are crucial.

Specific Circuit Connection for ADAS

Sensor Signal Line Noise Suppression

- Incorporate the ACM4520-142-2P-T000 into the signal lines from ADAS sensors like cameras and radar.

- Key Integration: This is vital for filtering out EMI/RFI that can disrupt sensor signal accuracy.

Power Supply Filtering

- Employ the ACM4520-142-2P-T000 in the power supply lines to the ADAS components.

- Essential Role: This minimizes noise from the power source, which could affect sensor performance.

Optimized PCB Layout

- Design the PCB layout to minimize the loop area around the ACM4520-142-2P-T000 for effective noise suppression.

- Layout Strategy: A well-planned layout enhances the choke's efficiency in reducing EMI.

Considerations in Circuit Design

- Electrical Compatibility: Ensure that ACM4520-142-2P-T000's specifications match the electrical requirements of the ADAS components.

- Space Constraints: Given the limited space in automotive electronics, select an appropriately sized ACM4520-142-2P-T000.

- Heat Dissipation: Consider the thermal impact of ACM4520-142-2P-T000 in the circuit design.

- Reliability and Durability: Automotive applications demand components that can withstand harsh conditions, making the robustness of ACM4520-142-2P-T000 crucial.

In conclusion, the ACM4520-142-2P-T000 plays a vital role in reducing EMI in automotive ADAS systems, requiring careful integration into the circuit for optimal noise suppression and system reliability.

ACM4520-142-2P-T000 information

ACM4520-142-2P-T000 Specifications

Package/Case:
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
ACM
ProductStatus:
Active
FilterType:
Power Line
NumberofLines:
2
Impedance@Frequency:
1.4 kOhms @ 100 MHz
Inductance@Frequency:
-
CurrentRating(Max):
1.7A
DCResistance(DCR)(Max):
80mOhm
VoltageRating-DC:
50V
VoltageRating-AC:
-
OperatingTemperature:
-40°C ~ 85°C
Ratings:
-
ApprovalAgency:
-
Features:
-
MountingType:
Surface Mount
Size/Dimension:
0.185 L x 0.177 W (4.70mm x 4.50mm)
Height(Max):
0.079 (2.00mm)
