Murata Electronics DLW5BTN142SQ2L

Part No.:: DLW5BTN142SQ2L

Manufacturer:: Murata Electronics

Package:

Datasheet:: DLW5BTN142SQ2L.pdf

Description:: CHOKE COMMON MODE 1400 OHM 2020

In Stock:: 3811

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

DLW5BTN142SQ2L Specifications

Package/Case:
Packaging:
Cut Tape (CT),Digi-Reel®
Series:
DLW5B
ProductStatus:
Obsolete
FilterType:
Power, Signal Line
NumberofLines:
2
Impedance@Frequency:
1.4 kOhms @ 100 MHz
Inductance@Frequency:
-
CurrentRating(Max):
1.5A
DCResistance(DCR)(Max):
40mOhm (Typ)
VoltageRating-DC:
50V
VoltageRating-AC:
-
OperatingTemperature:
-40°C ~ 85°C
Ratings:
-
ApprovalAgency:
-
Features:
-
MountingType:
Surface Mount
Size/Dimension:
0.197 L x 0.197 W (5.00mm x 5.00mm)
Height(Max):
0.098 (2.50mm)

DLW5BTN142SQ2L this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including DLW5BTN142SQ2L price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for DLW5BTN142SQ2L to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

DLW5BTN142SQ2L information

Views：

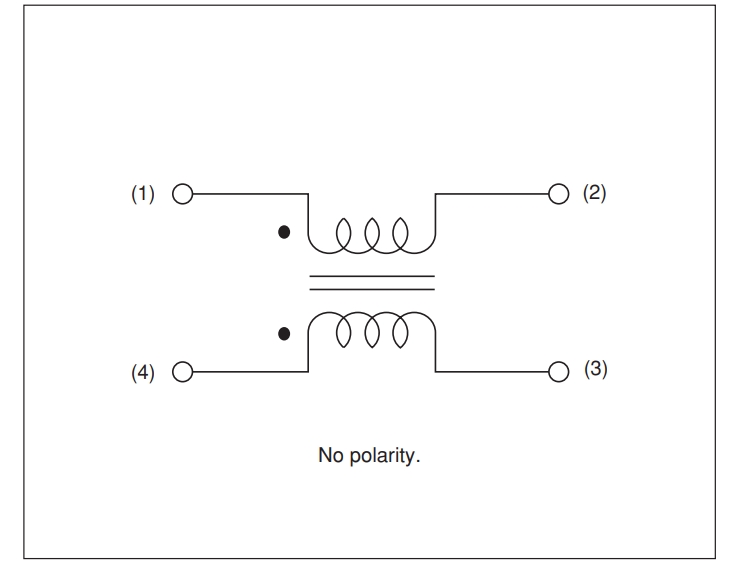

DLW5BTN142SQ2L Typical application Circuitry

DLW5BTN142SQ2L

The DLW5BTN142SQ2L is a specialized common mode choke coil intended for the suppression of electromagnetic interference (EMI) and noise in power and data lines. This component is crucial in high-frequency applications where EMI can severely impact the performance of sensitive electronic devices, such as in telecommunications or precise power supply systems. The DLW5BTN142SQ2L is recognized for its capability to ensure signal clarity and bolster the overall functionality of electronic systems by curtailing unwanted noise and interference.

Application Context: HDMI Interface Noise Suppression

A typical utilization of the DLW5BTN142SQ2L is in HDMI (High-Definition Multimedia Interface) interfaces for the suppression of noise, a critical application given HDMI's widespread use in high-definition audio and video transmission.

Detailing the Circuit Connection

1. Pin Allocation and Linkage: The DLW5BTN142SQ2L is structured with a defined pin arrangement. Within HDMI applications, pins 1 and 3 are typically connected to the TMDS (Transition Minimized Differential Signaling) data lines, with pin 1 to the positive line and pin 3 to the negative. Pins 2 and 4 are then linked to the ground (GND).

2. Component Positioning: Strategic placement of the DLW5BTN142SQ2L is vital. Ideally, it should be situated near the HDMI port, minimizing the trace lengths from the choke to the HDMI lines and thereby reducing potential noise accumulation.

3. Trace Pathing: Traces from the DLW5BTN142SQ2L to the HDMI port should be as linear and concise as possible, avoiding unnecessary detours to limit inductance and resistance, hence optimizing performance.

4. Grounding Approach: Establishing a robust ground plane around and under the DLW5BTN142SQ2L and its traces is advisable, acting as a barrier to deter noise intrusion into the data lines.

Circuit Design Essentials

1. Synchronizing Impedance: Matching the DLW5BTN142SQ2L's impedance with that of the HDMI transmission lines is essential to avert signal reflections and maintain data integrity.

2. Heat Dissipation Consideration: The DLW5BTN142SQ2L can produce heat under elevated current conditions, necessitating a proactive approach to thermal management to ensure the component's operation stays within its designated temperature range.

3. Ensuring Mechanical Robustness: Properly soldering the surface-mounted DLW5BTN142SQ2L is critical to prevent mechanical strain that could lead to inconsistent connections or the failure of the component.

4. Verification through Testing: Post-installation, rigorous testing of the HDMI interface with the DLW5BTN142SQ2L in place, focusing on signal integrity and EMI tests, is crucial to confirm that the choke is effectively reducing noise without negatively affecting HDMI performance.

To encapsulate, the DLW5BTN142SQ2L is an integral element for noise mitigation in intricate electronic circuits, demonstrating particular effectiveness in HDMI interfaces. Attention to detail in the circuit design, encompassing precise component positioning, impedance synchronization, thermal management, and comprehensive testing, is paramount to fully leverage the DLW5BTN142SQ2L's potential in improving the performance of electronic devices.
