Murata Electronics DLW5BTM251TQ2L

Part No.:: DLW5BTM251TQ2L

Manufacturer:: Murata Electronics

Package:

Datasheet:: DLW5BTM251TQ2L.pdf

Description:: CMC 5A 2LN 250 OHM SMD

In Stock:: 2647

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

DLW5BTM251TQ2L Specifications

Package/Case:
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
DLW5B
ProductStatus:
Active
FilterType:
Power, Signal Line
NumberofLines:
2
Impedance@Frequency:
250 Ohms @ 100 MHz
Inductance@Frequency:
-
CurrentRating(Max):
5A
DCResistance(DCR)(Max):
20mOhm
VoltageRating-DC:
50V
VoltageRating-AC:
-
OperatingTemperature:
-40°C ~ 105°C
Ratings:
-
ApprovalAgency:
-
Features:
-
MountingType:
Surface Mount
Size/Dimension:
0.197 Dia x 0.197 T (5.00mm x 5.00mm)
Height(Max):
0.098 (2.50mm)

DLW5BTM251TQ2L this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including DLW5BTM251TQ2L price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for DLW5BTM251TQ2L to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

DLW5BTM251TQ2L information

Views：

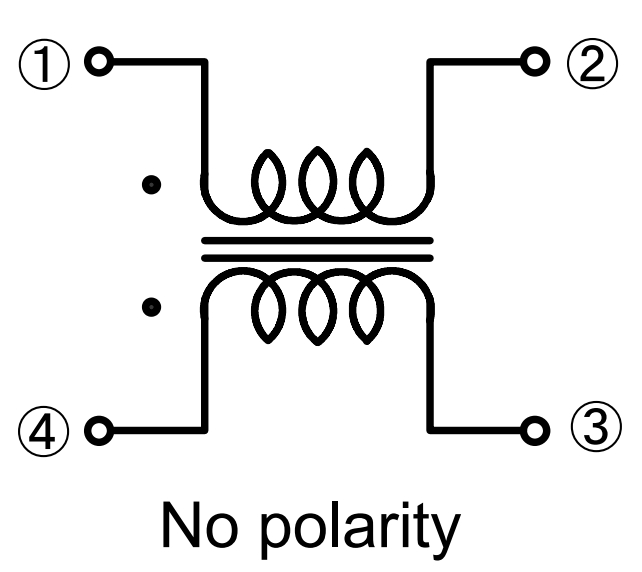

DLW5BTM251TQ2L Typical application Circuitry

DLW5BTM251TQ2L

DLW5BTM251TQ2L is a compact, high-current common mode choke coil designed primarily to suppress electromagnetic interference (EMI) in electronic circuits. It is characterized by its ability to maintain high impedance over a wide frequency range, making it particularly effective in filtering out noise on both signal and power lines. Its compact form factor and high-current handling capability make DLW5BTM251TQ2L suitable for various applications, including consumer electronics, automotive systems, and industrial machinery where maintaining signal integrity and power quality is crucial.

Application Scenario: EMI Suppression in Medical Imaging Equipment

In medical imaging equipment, such as MRI machines, maintaining signal integrity is crucial for accurate imaging. DLW5BTM251TQ2L can be used to suppress noise in the power lines, ensuring the clarity and reliability of the imaging results. Here's a detailed method for integrating DLW5BTM251TQ2L into a medical imaging equipment circuit:

1. Identify Noise Sources: First, determine potential EMI sources in the imaging circuit. In medical environments, noise can come from the power supply, external interference from other devices, or the high-frequency signals used in the imaging process.

2. Place DLW5BTM251TQ2L Strategically: Install the DLW5BTM251TQ2L close to the power entry point of the imaging equipment. This ensures that the choke effectively filters out noise right at the power source, preventing its propagation through the system.

3. Connect to Power Lines: Integrate DLW5BTM251TQ2L into the power lines of the imaging equipment. Typically, this involves connecting the positive power line to pins 1 and 2, and the ground or negative line to pins 3 and 4 of the DLW5BTM251TQ2L. Ensure that the connections are short and direct for effective noise suppression.

4. Implement Robust Grounding: While DLW5BTM251TQ2L is designed to filter common mode noise, having a solid grounding scheme in your circuit is crucial. An uninterrupted ground plane provides an effective path for noise dissipation.

5. Perform Extensive Testing: After integrating DLW5BTM251TQ2L into your imaging equipment, undertake comprehensive testing. Use a spectrum analyzer or similar equipment to measure the noise levels, confirming that the DLW5BTM251TQ2L effectively reduces noise without adversely impacting the imaging process.

Circuit Design Considerations with DLW5BTM251TQ2L

When designing your circuit with DLW5BTM251TQ2L, keep the following points in mind:

- Current Handling: Ensure that the current rating of DLW5BTM251TQ2L matches the operational current levels in your imaging equipment to prevent overheating or potential damage.

- Impedance Matching: The impedance of DLW5BTM251TQ2L should be compatible with your circuit to ensure efficient noise suppression without causing signal reflections or power loss.

- Temperature Management: DLW5BTM251TQ2L operates within specific temperature parameters. Verify that your medical environment does not exceed these temperature limits to maintain optimal performance.

- Optimize Circuit Layout: Minimize the trace lengths to and from DLW5BTM251TQ2L to reduce the chance of EMI pickup and ensure efficient noise suppression.

In conclusion, DLW5BTM251TQ2L is an effective solution for mitigating EMI in medical imaging equipment, ensuring the clarity and reliability of imaging results. Proper integration, along with careful attention to circuit design nuances, is key to fully leveraging its capabilities, ensuring precise diagnostics and adherence to EMI standards.
