Name: B82790C0475N265
Brand: EPCOS - TDK Electronics
SKU: B82790C0475N265
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

EPCOS - TDK Electronics B82790C0475N265

Part No.:: B82790C0475N265

Manufacturer:: EPCOS - TDK Electronics

Package:

Datasheet:: B82790C0475N265.pdf

Description:: CMC 4.7MH 200MA 2LN SMD AEC-Q200

In Stock:: 2350

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

B82790C0475N265 Specifications

Package/Case:
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
B82790
ProductStatus:
Not For New Designs
FilterType:
Signal Line
NumberofLines:
2
Impedance@Frequency:
-
Inductance@Frequency:
4.7 mH @ 10 kHz
CurrentRating(Max):
200mA
DCResistance(DCR)(Max):
510mOhm (Typ)
VoltageRating-DC:
80V
VoltageRating-AC:
42V
OperatingTemperature:
-40°C ~ 125°C
Ratings:
AEC-Q200
ApprovalAgency:
-
Features:
-
MountingType:
Surface Mount
Size/Dimension:
0.280 L x 0.236 W (7.10mm x 6.00mm)
Height(Max):
0.205 (5.20mm)

B82790C0475N265 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including B82790C0475N265 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for B82790C0475N265 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

B82790C0475N265 information

Views：

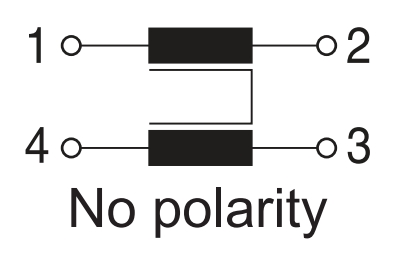

B82790C0475N265 Typical application Circuitry

B82790C0475N265

The B82790C0475N265 is a common mode choke manufactured by EPCOS (part of TDK Corporation).

Chip Functionality

- The B82790C0475N265 is designed to suppress EMI/RFI in differential signal lines without significantly impeding the signal itself. It is especially effective in balancing out noise that appears commonly on both lines.

Application Scenarios

- A typical application of the B82790C0475N265 is in USB interfaces, Ethernet connections, or other high-speed data lines in devices like computers, networking equipment, or communication devices.

Parameter Features

- The B82790C0475N265 features a compact SMD design, with impedance values optimized for effective noise suppression in the MHz range. It has a high current rating and low resistance, making it suitable for data lines carrying both signal and power.

Specific Circuit Connection for Ethernet Interfaces

Here's how to integrate the B82790C0475N265 in an Ethernet interface circuit:

EMI/RFI Suppression

- Connect each pair of differential signal lines of the Ethernet interface to the two lines of one B82790C0475N265.

- Critical Step: This setup filters out common mode noise while allowing the differential signal to pass through unimpeded.

Grounding

- No direct grounding is required for the B82790C0475N265 as it operates on the principle of differential signal balancing.

- Key Note: Ensure that the ground plane of the PCB is well-designed to support overall noise suppression.

Placement in Circuit

- Place the B82790C0475N265 close to the connector end of the Ethernet interface.

- Strategic Positioning: This placement ensures maximum noise suppression as it filters interference before it can propagate into the system.

Thermal Management

- The B82790C0475N265 typically does not generate significant heat but check for thermal issues in high-current applications.

- Heat Consideration: Ensure proper air circulation around the component for optimal operation.

Considerations in Circuit Design

- Impedance Matching: Match the impedance of the B82790C0475N265 to the differential lines for efficient noise suppression without signal distortion.

- Signal Integrity: Ensure that the inclusion of the B82790C0475N265 does not degrade the signal quality, especially in high-speed data applications.

- PCB Layout: Optimize the PCB layout to minimize parasitic capacitance and inductance effects that could affect the performance of the B82790C0475N265.

- Component Sizing: Select a B82790C0475N265 with appropriate dimensions and ratings for the specific application.

In summary, the B82790C0475N265 is essential in applications requiring EMI/RFI suppression in differential signal lines, with careful consideration needed for impedance matching, signal integrity, and PCB layout to fully utilize its capabilities.
