STMicroelectronics USBLC6-2P6

Part No.:: USBLC6-2P6

Manufacturer:: STMicroelectronics

Package:: SOT-563, SOT-666

Datasheet:: USBLC6-2P6.pdf

Description:: TVS DIODE 5.25VWM 17VC SOT666

In Stock:: 2489

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

USBLC6-2P6 Specifications

Package/Case:
SOT-563, SOT-666
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
USB
ProductStatus:
Active
Type:
Steering (Rail to Rail)
UnidirectionalChannels:
2
BidirectionalChannels:
-
Voltage-ReverseStandoff(Typ):
5.25V
Voltage-Breakdown(Min):
6V
Voltage-Clamping(Max)@Ipp:
17V
Current-PeakPulse(10/1000µs):
5A (8/20µs)
Power-PeakPulse:
-
PowerLineProtection:
Yes
Applications:
Ethernet
Capacitance@Frequency:
-
OperatingTemperature:
-40°C ~ 150°C (TJ)
MountingType:
Surface Mount

USBLC6-2P6 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including USBLC6-2P6 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for USBLC6-2P6 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

USBLC6-2P6 information

Views：

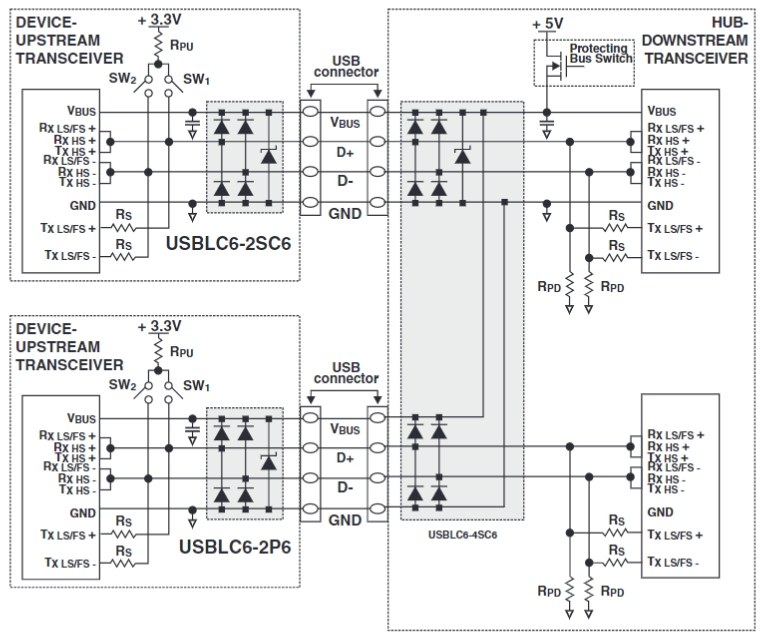

USBLC6-2P6 Typical application Circuitry

USBLC6-2P6

The USBLC6-2P6 is an ESD (Electrostatic Discharge) protection device designed to protect sensitive data lines in USB 1.0, USB 2.0, and other communication interfaces from the damaging effects of ESD and transient voltage. Manufactured by STMicroelectronics, this device is used to safeguard the USB data lines against electrostatic discharges which can potentially damage or interfere with the normal operation of electronic systems.Here are the key features and functionalities of the USBLC6-2P6:

1. ESD Protection: The USBLC6-2P6 provides robust ESD protection, safeguarding the data lines against transient voltages.

2. Low Capacitance: The device features low line capacitance, which is important to minimize signal attenuation and ensure signal integrity at high data rates.

3. Clamping Voltage: The USBLC6-2P6 provides a low clamping voltage, which ensures that the transient voltage is kept to a minimum level, protecting sensitive circuitry downstream.

4. Compatibility: It is compatible with various communication standards such as USB 2.0 and USB 1.0, and can also be used to protect other I/O lines.

5. Package: The "P6" in the part number indicates that the device is often available in a small SOT-666 package.

6. Bidirectional Protection: The device can protect data lines in both directions, ensuring that the data lines are shielded from ESD strikes coming from either direction.

7. Breakdown Voltage: The USBLC6-2P6 has a specified breakdown voltage, beyond which the device starts conducting to shunt the excess energy away from sensitive components.

8. Fast Response Time: The USBLC6-2P6 is designed to respond very quickly to transient voltage spikes, providing instant protection to the connected lines.

9. Application Areas: The USBLC6-2P6 is suitable for a range of applications, including mobile phones, computers, USB peripherals, and other electronic devices with data lines that require protection.

By placing the USBLC6-2P6 in a circuit, designers can protect sensitive components from damage caused by ESD, thereby increasing the reliability and lifespan of electronic devices. For specific details including electrical characteristics and application circuits, it is recommended to consult the datasheet for the USBLC6-2P6 provided by STMicroelectronics.
