Name: PESD5V0L1BA,115
Brand: Nexperia USA Inc.
SKU: PESD5V0L1BA,115
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Nexperia USA Inc. PESD5V0L1BA,115

Part No.:: PESD5V0L1BA,115

Manufacturer:: Nexperia USA Inc.

Package:: SC-76, SOD-323

Datasheet:: PESD5V0L1BA,115.pdf

Description:: TVS DIODE 5VWM 33VC SOD323

In Stock:: 90531

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

PESD5V0L1BA,115 Specifications

Package/Case:
SC-76, SOD-323
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Type:
Zener
UnidirectionalChannels:
-
BidirectionalChannels:
1
Voltage-ReverseStandoff(Typ):
5V (Max)
Voltage-Breakdown(Min):
7V
Voltage-Clamping(Max)@Ipp:
33V
Current-PeakPulse(10/1000µs):
15A (8/20µs)
Power-PeakPulse:
500W
PowerLineProtection:
No
Applications:
General Purpose
Capacitance@Frequency:
75pF @ 1MHz
OperatingTemperature:
150°C (TJ)
MountingType:
Surface Mount

PESD5V0L1BA,115 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including PESD5V0L1BA,115 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for PESD5V0L1BA,115 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

PESD5V0L1BA,115 information

Views：

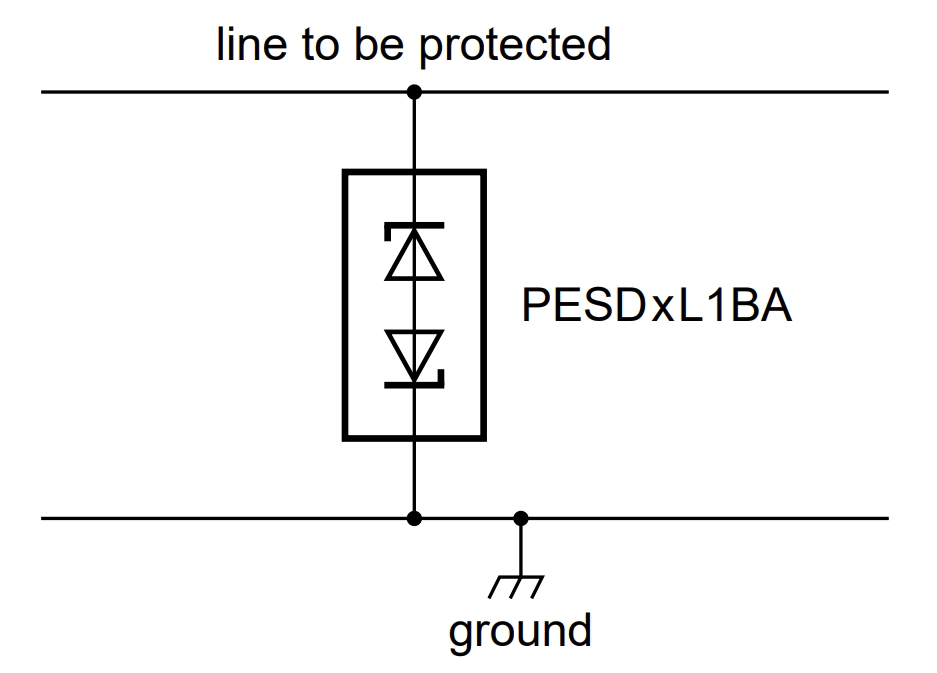

PESD5V0L1BA,115 Typical application Circuitry

PESD5V0L1BA,115

The PESD5V0L1BA,115 is an integrated circuit (IC) known for its role as an Electrostatic Discharge (ESD) protection diode. It is especially made to protect delicate electronic parts from damage caused by ESD. Applications where ESD protection is essential to preserving the integrity and performance of electronic systems frequently employ this device.

Let's explore the functionality of the PESD5V0L1BA,115, its application scenarios, parameter features, and a detailed guide on circuit connection for a specific use case.

Functionality: The PESD5V0L1BA,115 serves as an ESD protection diode, providing effective defense against electrostatic discharges.

Application Scenarios: It is widely used in data line protection for consumer electronics, communication devices, and computer interfaces, such as USB ports, HDMI connections, and other high-speed data lines that require ESD protection.

Parameter Features:

1. ESD Protection: Offers robust protection against electrostatic discharges.

2. Clamping Voltage: Features a clamping voltage of around 5 volts, protecting sensitive circuits.

3. Low Capacitance: This characteristic is crucial for preserving signal integrity, particularly in applications involving high-speed data.

4. Unidirectional Protection: Provides unidirectional ESD protection, suitable for specific data line applications.

Circuit Connection - HDMI Port Protection:

1. Proximity to HDMI Port: Position the PESD5V0L1BA,115 near the HDMI connector for effective ESD protection.

2. Connection to Data Lines: Connect pin 1 of the PESD5V0L1BA,115 to one of the HDMI data lines (e.g., TMDS Data0+).

3. Grounding: Link pin 2 of the PESD5V0L1BA,115 to the system's ground to provide a path for ESD to discharge.

4. Complete Protection: Use additional PESD5V0L1BA,115 diodes for each data line in the HDMI interface for comprehensive protection.

Design Considerations:

- Placement Efficiency: The diode should be positioned as close to the HDMI port as possible for optimal ESD protection.

- PCB Layout: Reduce route resistance and inductance to ground by designing the PCB layout.

- Signal Integrity: Ensure that the diode's capacitance does not adversely affect the signal quality in high-speed applications.

- Protection Configuration: Determine the appropriate configuration, considering unidirectional protection for specific data or power lines.

In summary, the PESD5V0L1BA,115 is essential for ESD protection in HDMI ports of electronic devices. Circuit design with this IC involves strategic diode placement, effective PCB layout, consideration of signal integrity, and appropriate protection configuration to provide effective ESD safeguarding.
