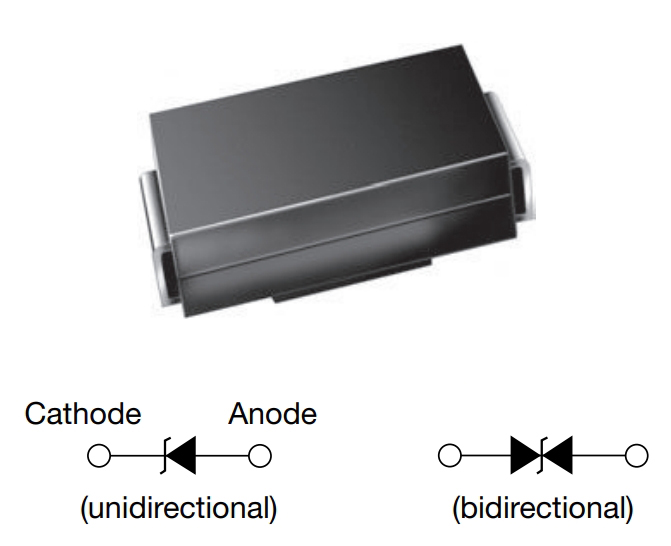

Littelfuse Inc. SMAJ5.0CA

Part No.:: SMAJ5.0CA

Manufacturer:: Littelfuse Inc.

Package:: DO-214AC, SMA

Datasheet:: SMAJ5.0CA.pdf

Description:: TVS DIODE 5VWM 9.2VC DO214AC

In Stock:: 259272

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SMAJ5.0CA this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SMAJ5.0CA price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SMAJ5.0CA to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

Views：

SMAJ5.0CA Typical application Circuitry

SMAJ5.0CA

Diodes known as transient voltage suppressors (TVS)-like the SMAJ5.0CA-are designed specifically to protect electrical circuits from spikes in voltage. It is widely used in scenarios where sensitive components need safeguarding against transient voltages caused by electrostatic discharge, lightning, and other sudden voltage surges.

Application Scenarios

SMAJ5.0CA is commonly used in power supply circuits, communication systems, and other electronic devices to protect against voltage transients.

Parameter Features

- Bidirectional Clamping: Protects circuits from voltage spikes in both directions.

- Voltage Protection: Specifically designed for a standoff voltage of around 5.0V.

- Fast Response Time: Reacts quickly to transient voltages, providing immediate protection.

Circuit Connection Method

Consider using SMAJ5.0CA for protecting a microcontroller in a power supply circuit.

1. Placement in the Circuit

- Across Power Lines: Place SMAJ5.0CA directly across the power supply lines (VCC and GND) close to the microcontroller.

2.Orientation

- Bidirectional Feature: As SMAJ5.0CA is bidirectional, orientation is not a concern.

3.Connection to Microcontroller

- Parallel Configuration: Connect SMAJ5.0CA in parallel with the microcontroller's power input.

4.Grounding

- Ground Line: Ensure that the ground line to which SMAJ5.0CA is connected is well-established.

Design Considerations

1. Voltage Rating: Choose SMAJ5.0CA with an appropriate voltage rating for the specific application.

2. Placement in Circuit: Put SMAJ5.0CA as near to the component that has to be protected as you can.

3. Circuit Impedance: Consider the impedance of the circuit, as it affects the TVS diode's performance.

4. Power Dissipation: Ensure SMAJ5.0CA can handle the power dissipation during a voltage spike.

In summary, SMAJ5.0CA serves as an effective solution for protecting sensitive electronic components from voltage transients, particularly in power supply circuits where voltage spikes are a significant risk.

SMAJ5.0CA information

SMAJ5.0CA Specifications

Package/Case:
DO-214AC, SMA
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
SMAJ
ProductStatus:
Active
Type:
Zener
UnidirectionalChannels:
-
BidirectionalChannels:
1
Voltage-ReverseStandoff(Typ):
5V
Voltage-Breakdown(Min):
6.4V
Voltage-Clamping(Max)@Ipp:
9.2V
Current-PeakPulse(10/1000µs):
43.5A
Power-PeakPulse:
400W
PowerLineProtection:
No
Applications:
General Purpose
Capacitance@Frequency:
-
OperatingTemperature:
-65°C ~ 150°C (TJ)
MountingType:
Surface Mount
