What is the Additional Feature ?

Name: SMBJ5.0CA
Brand: Littelfuse Inc.
SKU: SMBJ5.0CA
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Littelfuse Inc. SMBJ5.0CA

Part No.:: SMBJ5.0CA

Manufacturer:: Littelfuse Inc.

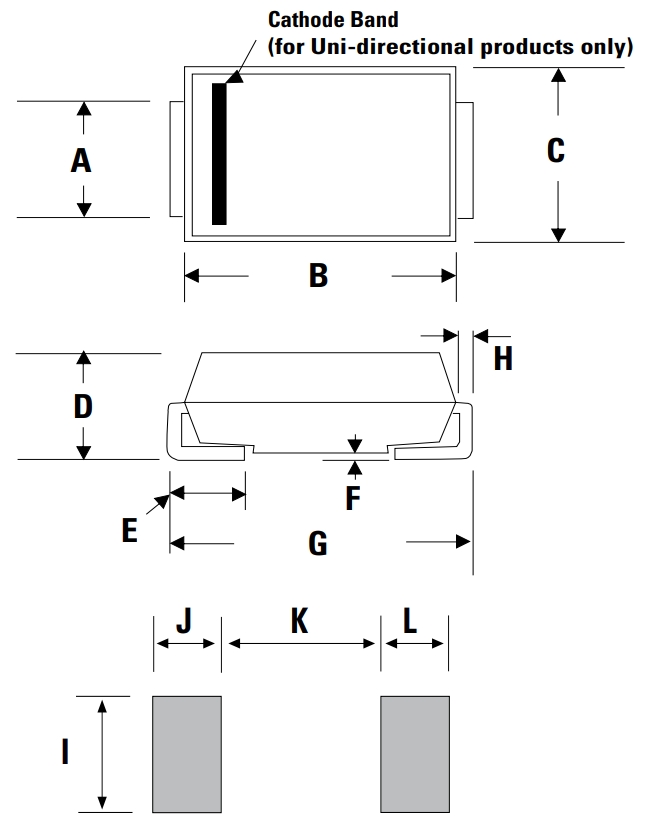

Package:: DO-214AA, SMB

Datasheet:: SMBJ5.0CA.pdf

Description:: TVS DIODE 5VWM 9.2VC DO214AA

In Stock:: 6637

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SMBJ5.0CA Specifications

Package/Case:
DO-214AA, SMB
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
SMBJ
ProductStatus:
Active
Type:
Zener
UnidirectionalChannels:
-
BidirectionalChannels:
1
Voltage-ReverseStandoff(Typ):
5V
Voltage-Breakdown(Min):
6.4V
Voltage-Clamping(Max)@Ipp:
9.2V
Current-PeakPulse(10/1000µs):
65.3A
Power-PeakPulse:
600W
PowerLineProtection:
No
Applications:
General Purpose
Capacitance@Frequency:
-
OperatingTemperature:
-65°C ~ 150°C (TJ)
MountingType:
Surface Mount

SMBJ5.0CA this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SMBJ5.0CA price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SMBJ5.0CA to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SMBJ5.0CA information

Views：

SMBJ5.0CA Typical application Circuitry

SMBJ5.0CA

The SMBJ5.0CA is a type of Transient Voltage Suppressor (TVS) diode, commonly used in electronics to protect sensitive circuits from voltage spikes. Its main features, applications, and a detailed example of its use in a specific circuit will be discussed below.

Functionality: The SMBJ5.0CA is designed to provide fast and effective protection against voltage transients caused by inductive load switching, lightning, and electrostatic discharge (ESD). Its primary function is to clamp voltage spikes to a safe level before they can damage the rest of the circuit.

Application Scenarios: This device is versatile and can be used in a variety of applications, including power supply circuits, communication systems, automotive electronics, and consumer electronics. A common use is in USB interfaces, Ethernet lines, or other communication ports where transient voltage spikes might occur.

Parameter Characteristics: The SMBJ5.0CA typically features a standoff voltage of around 5.0 volts, which is the maximum voltage it can withstand without conducting significant current. It also has a low clamping voltage, fast response time, and high surge capability, which are essential for effective transient voltage suppression.

Circuit Integration Example - USB Interface Protection:

1. Connection to USB Data Lines: The SMBJ5.0CA can be connected across the data lines of a USB interface. For example, pin 1 (D+) and pin 2 (D-) of the USB connector can each be connected to one end of two SMBJ5.0CA diodes, with their other ends connected to ground.

2. Power Line Protection: Additionally, the VBUS (pin 4) of the USB can be protected by connecting another SMBJ5.0CA across the VBUS and ground. This provides protection against surges coming from the power line.

3. Ground Reference: All diodes should reference the same ground point to ensure effective protection.

4. Programming Pins Consideration: If the circuit involves a microcontroller or similar device that requires programming, ensure that the TVS diodes do not interfere with the programming lines. Usually, these diodes do not affect standard programming interfaces like SPI, I2C, or UART, but it's important to verify this in the specific context.

Design Considerations:

- Selection of Voltage Rating: Ensure that the standoff voltage of the SMBJ5.0CA is appropriate for the operating voltage of the circuit.

- Placement: TVS diodes should be placed as close as possible to the point where the transient can enter the circuit.

- Thermal Considerations: Ensure the device can handle the thermal load during a surge event, which might involve adding heat sinks or other thermal management techniques.

- Redundancy: In critical applications, consider using multiple TVS diodes in parallel for redundancy.

In summary, the SMBJ5.0CA is a vital component for protecting sensitive electronics from voltage transients in various applications. Its proper integration into a circuit, considering aspects like placement, voltage rating, and thermal management, ensures the robustness and reliability of electronic systems.
