Name: PESD1LIN,135
Brand: Nexperia USA Inc.
SKU: PESD1LIN,135
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Nexperia USA Inc. PESD1LIN,135

Part No.:: PESD1LIN,135

Manufacturer:: Nexperia USA Inc.

Package:: SC-76, SOD-323

Datasheet:: PESD1LIN,135.pdf

Description:: TVS DIODE 15VWM 24VWM SOD323

In Stock:: 2972

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

PESD1LIN,135 Specifications

Package/Case:
SC-76, SOD-323
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
Automotive, AEC-Q101
ProductStatus:
Active
Type:
Zener
UnidirectionalChannels:
-
BidirectionalChannels:
1
Voltage-ReverseStandoff(Typ):
15V (Max), 24V (Max)
Voltage-Breakdown(Min):
17.1V
Voltage-Clamping(Max)@Ipp:
44V, 70V
Current-PeakPulse(10/1000µs):
3A (8/20µs)
Power-PeakPulse:
160W
PowerLineProtection:
No
Applications:
Automotive
Capacitance@Frequency:
13pF @ 1MHz
OperatingTemperature:
-65°C ~ 150°C (TA)
MountingType:
Surface Mount

PESD1LIN,135 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including PESD1LIN,135 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for PESD1LIN,135 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

PESD1LIN,135 information

Views：

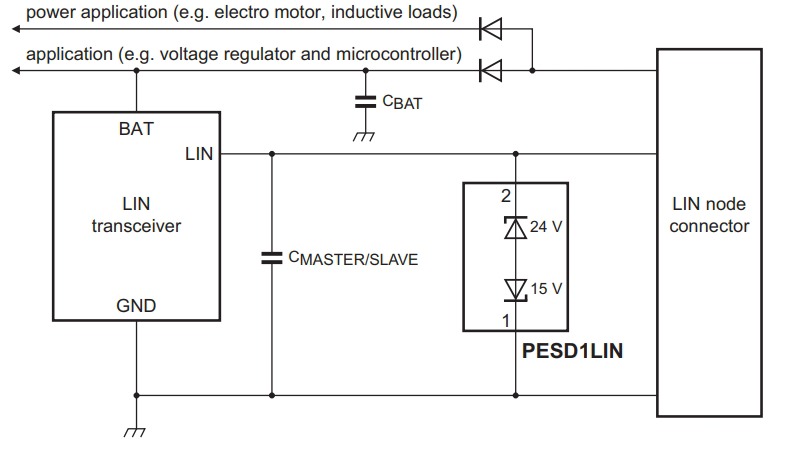

PESD1LIN,135 Typical application Circuitry

PESD1LIN,135

The PESD1LIN,135 is an ESD (Electrostatic Discharge) protection device, specifically designed for protecting LIN (Local Interconnect Network) bus communication lines. LIN bus is widely used in automotive applications for low-speed communication between components such as sensors and actuators.

Key Features:

- Targeted ESD Protection: Tailored to shield LIN bus lines from electrostatic discharges.

- Low Clamping Voltage: Reduces the risk of damage to sensitive components during ESD events.

- Bidirectional Protection: Capable of protecting against ESD strikes from either direction.

- Low Capacitance: Ensures minimal impact on the signal integrity of the LIN bus.

Application Scenario: Automotive Sensor Network Protection

1. Protection Purpose:

- In this scenario, the PESD1LIN,135 is used to safeguard LIN bus communication lines in an automotive sensor network, such as those used for temperature or position sensors.

2. Pin Configuration:

- LIN Bus Line Protection Pin (pin 1): Connects to the LIN communication line.

- Ground Connection (pin 2): Tied to the LIN bus ground.

3. Circuit Integration:

- Attach pin 1 of the PESD1LIN,135 directly to the LIN bus communication line.

- Connect pin 2 to the LIN bus ground.

- Proper orientation is crucial for effective protection.

4. Proximity to LIN Bus Transceiver:

- The PESD1LIN,135 should be installed as close as possible to the LIN bus transceiver for immediate ESD mitigation.

Design Considerations

1. Signal Quality Maintenance: It is essential to ensure that the ESD protection does not impair the LIN bus data communication.

2. Device Placement Strategy: Position the ESD protection device near the LIN bus transceiver for prompt ESD response.

3. PCB Trace Optimization: Design PCB traces to minimize resistance and inductance between the LIN transceiver and the ESD protection device.

4. Effective Grounding Scheme: Develop a strong grounding strategy to effectively divert ESD currents away from sensitive components.

5. LIN Bus Compatibility: Verify that the electrical characteristics of the PESD1LIN,135 are suitable for the specific LIN bus system in use.

In conclusion, the PESD1LIN,135 is a vital component for ESD protection in automotive LIN bus systems, especially for sensor networks. When integrating this device into a circuit, considerations such as maintaining signal quality, strategic placement of the protection device, PCB trace layout, grounding effectiveness, and compatibility with the LIN bus system are crucial. These factors ensure the LIN bus interface remains protected from ESD while preserving its communication functionality and reliability in automotive environments.
