Texas Instruments TPD4E001DBVR

Part No.:: TPD4E001DBVR

Manufacturer:: Texas Instruments

Package:: SOT-23-6

Datasheet:: TPD4E001DBVR.pdf

Description:: TVS DIODE 5.5VWM SOT23-6

In Stock:: 34984

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TPD4E001DBVR Specifications

Package/Case:
SOT-23-6
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Type:
Steering (Rail to Rail)
UnidirectionalChannels:
4
BidirectionalChannels:
-
Voltage-ReverseStandoff(Typ):
5.5V (Max)
Voltage-Breakdown(Min):
11V
Voltage-Clamping(Max)@Ipp:
-
Current-PeakPulse(10/1000µs):
-
Power-PeakPulse:
100W
PowerLineProtection:
Yes
Applications:
Ethernet
Capacitance@Frequency:
-
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

TPD4E001DBVR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TPD4E001DBVR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TPD4E001DBVR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TPD4E001DBVR information

Views：

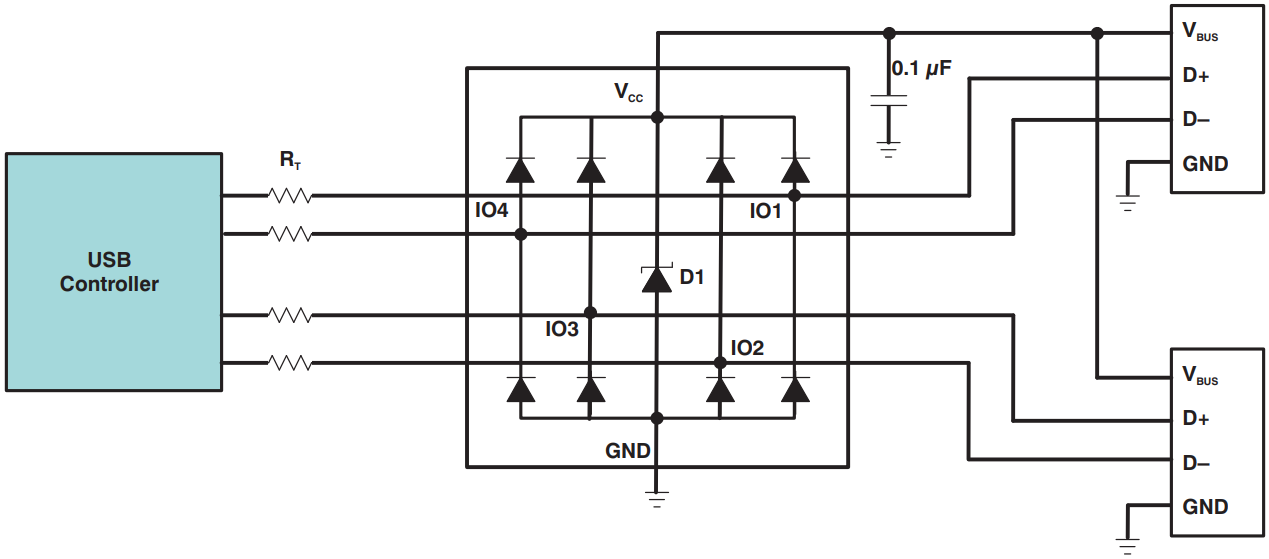

TPD4E001DBVR Typical application Circuitry

TPD4E001DBVR

The TPD4E001DBVR is an integral component of the TPD4E001 series, acclaimed for its superior Electrostatic Discharge (ESD) protection capabilities. This series is designed to safeguard sensitive electronic circuits from ESD damage, commonly encountered in various applications including USB interfaces, video lines, and other high-speed data lines. The TPD4E001DBVR is distinguished for its compact design and efficiency in protecting up to four data or transmission lines from ESD.

1. VCC - Power Supply Pin: The TPD4E001DBVR does not require a direct connection to a power supply, as it is designed to protect data lines where power is supplied through the interface itself.

2. I/O Pins (1, 2, 3, 4): The TPD4E001DBVR features four I/O pins, each designed to be connected to a data line. These pins provide ESD protection for the connected lines by safely dissipating the excess energy through the internal circuitry of the device. Pin 1 should be connected to the first data line, Pin 2 to the second, and so on, ensuring that each data line is adequately protected.

3. GND - Ground Pin: The Ground pin (GND) on the TPD4E001DBVR is crucial for ESD protection. This pin should be connected to the system's ground. It provides a path for the dissipation of the ESD energy, ensuring that it does not affect the sensitive components of the electronic system.

4. Layout Considerations: For optimal performance, the TPD4E001DBVR should be placed close to the connector where the external interface occurs. This ensures that ESD strikes are intercepted and neutralized before they can propagate further into the circuit.

In summary, the TPD4E001DBVR is an essential device for ESD protection in electronic systems, particularly useful in protecting USB interfaces, video lines, and other high-speed data lines. Its effectiveness lies in its ability to quickly respond to and dissipate ESD strikes, safeguarding sensitive electronic components. Implementing the TPD4E001DBVR as per its datasheet, with proper connection to the data lines and grounding, is critical for maximizing its protective capabilities and ensuring the durability and reliability of electronic devices.
