What is the Additional Feature ?

Name: SZNUP2105LT1G
Brand: ON Semiconductor
SKU: SZNUP2105LT1G
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

ON Semiconductor SZNUP2105LT1G

Part No.:: SZNUP2105LT1G

Manufacturer:: ON Semiconductor

Package:: TO-236-3, SC-59, SOT-23-3

Datasheet:: SZNUP2105LT1G.pdf

Description:: TVS DIODE 24VWM 44VC SOT23-3

In Stock:: 2568

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SZNUP2105LT1G Specifications

Package/Case:
TO-236-3, SC-59, SOT-23-3
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
Automotive, AEC-Q101
ProductStatus:
Active
Type:
Zener
UnidirectionalChannels:
-
BidirectionalChannels:
2
Voltage-ReverseStandoff(Typ):
24V (Min)
Voltage-Breakdown(Min):
26.2V
Voltage-Clamping(Max)@Ipp:
44V
Current-PeakPulse(10/1000µs):
8A (8/20µs)
Power-PeakPulse:
350W
PowerLineProtection:
No
Applications:
Automotive
Capacitance@Frequency:
30pF @ 1MHz
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount

SZNUP2105LT1G this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SZNUP2105LT1G price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SZNUP2105LT1G to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SZNUP2105LT1G information

Views：

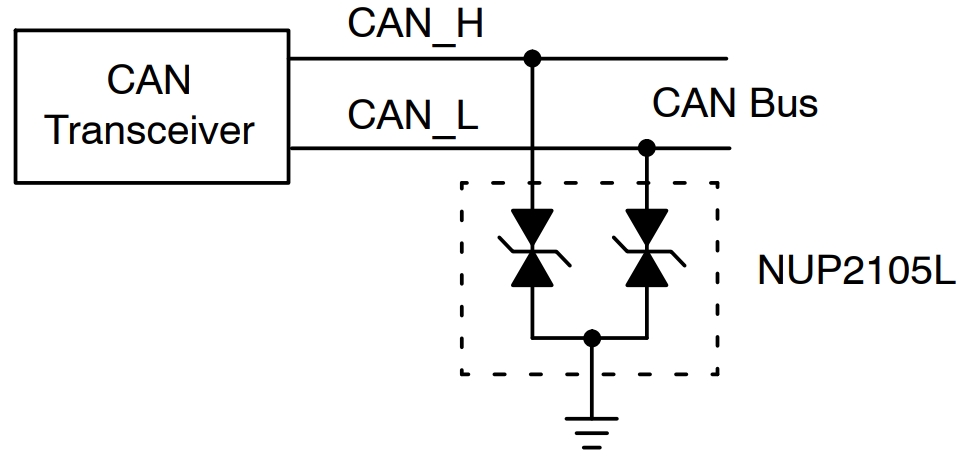

SZNUP2105LT1G Typical application Circuitry

SZNUP2105LT1G

The SZNUP2105LT1G is a Transient Voltage Suppressor (TVS) diode array designed for electrostatic discharge (ESD) protection. It's a specialized component used in safeguarding sensitive electronic circuits from sudden voltage spikes and ESD events.

Innovative Functional Attributes

- ESD Mitigation: Expertly absorbs and dissipates electrostatic discharges.

- Voltage Spike Shielding: Rapidly clamps transient overvoltages to safe levels.

- Bidirectional Protection: Offers symmetrical defense for both positive and negative transients.

Unique Application Scenarios

1. Medical Device Electronics: Protects critical sensors and circuits in medical diagnostic equipment.

2. Precision Instrumentation: Safeguards sensitive measuring devices in laboratories.

3. Automotive Control Systems: Utilized in automotive electronics for ESD resilience.

Distinctive Parameter Features

- Optimal Clamping Voltage: Ensures effective protection without compromising the circuit's functionality.

- High ESD Immunity: Withstands multiple ESD strikes without degradation.

- Low Leakage Current: Preserves energy efficiency in standby modes.

Creative Circuit Design: Automotive Sensor Protection

Incorporating the SZNUP2105LT1G in an automotive sensor circuit:

1. Sensor Interface Protection: Connect the SZNUP2105LT1G's I/O pins directly to the sensor output lines.

2. Symmetrical Grounding Strategy: Link the ground pin of the diode array to the sensor's ground reference.

3. Power Line Integration: If safeguarding the power supply line, attach another I/O pin to the sensor's power input.

4. Proximate Placement for Efficacy: Install the SZNUP2105LT1G as close to the sensor interface as possible for immediate transient suppression.

Holistic Design Considerations

- Proximity to Critical Points: Position the TVS diode array near sensitive areas for optimal protection.

- Maintaining Signal Integrity: Ensure the diode array doesn't significantly alter the characteristics of the sensor signal.

- Compatibility with Automotive Conditions: Account for the high-temperature and vibration environment typical in automotive applications.

- Efficient Heat Dissipation: Design the layout to manage heat generation, especially under high transient conditions.

In summary, the SZNUP2105LT1G stands out as an essential component in protecting sophisticated electronics, especially in high-precision environments like medical devices, laboratory instrumentation, and automotive control systems. Designing circuits with this diode array requires a blend of creativity and precision, focusing on the proximity of installation, signal integrity, environmental compatibility, and thermal management. This approach ensures not only the functionality and reliability of the protection circuit but also enhances the originality and applicability in diverse, demanding applications.
