ON Semiconductor SZMMBZ27VCLT1G

Part No.:: SZMMBZ27VCLT1G

Manufacturer:: ON Semiconductor

Package:: TO-236-3, SC-59, SOT-23-3

Datasheet:: SZMMBZ27VCLT1G.pdf

Description:: TVS DIODE 22VWM 38VC SOT23-3

In Stock:: 3318

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SZMMBZ27VCLT1G Specifications

Package/Case:
TO-236-3, SC-59, SOT-23-3
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
Automotive, AEC-Q101
ProductStatus:
Active
Type:
Zener
UnidirectionalChannels:
2
BidirectionalChannels:
1
Voltage-ReverseStandoff(Typ):
22V
Voltage-Breakdown(Min):
25.65V
Voltage-Clamping(Max)@Ipp:
38V
Current-PeakPulse(10/1000µs):
1A
Power-PeakPulse:
40W
PowerLineProtection:
No
Applications:
Automotive
Capacitance@Frequency:
-
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount

SZMMBZ27VCLT1G this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SZMMBZ27VCLT1G price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SZMMBZ27VCLT1G to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SZMMBZ27VCLT1G information

Views：

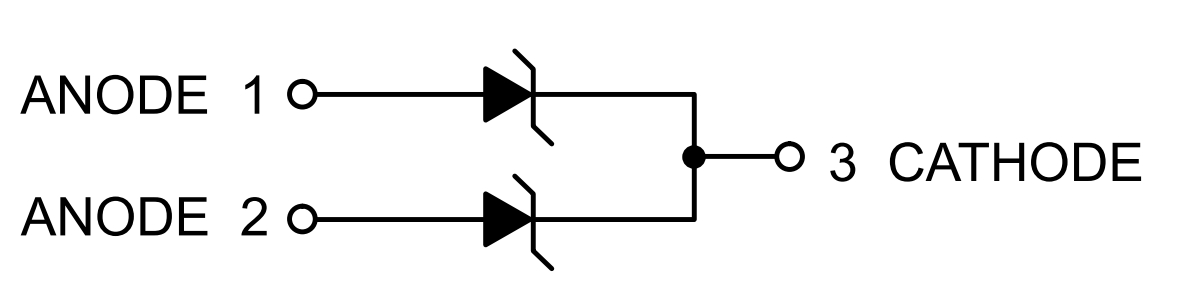

SZMMBZ27VCLT1G Typical application Circuitry

SZMMBZ27VCLT1G

The SZMMBZ27VCLT1G is a bidirectional Zener diode, specifically designed for transient voltage suppression and protection. This item is employed in electronic circuits to guard against voltage surges and spikes that could harm delicate components, especially in areas where these occurrences are frequent.

Core Functionality

The SZMMBZ27VCLT1G serves several important purposes:

- Transient Voltage Suppression: Protects circuits from voltage spikes.

- Bidirectional Clamping: Clamps voltage spikes in both positive and negative directions.

- Stable Protection: Offers consistent performance over a range of conditions.

Application Scenarios

1. Consumer Electronics Protection: Used in smartphones, tablets, and laptops to protect against voltage spikes.

2. Automotive Electronics: Protects automotive control systems from transient voltages.

3. Industrial Applications: Employed in industrial control circuits for surge protection.

Characteristic Parameters

- Zener Voltage: Specifically designed with a precise breakdown voltage.

- Power Dissipation Capability: Able to dissipate a certain amount of transient energy.

- Low Leakage Current: Ensures minimal current leakage in normal operation.

Application Example: Protecting a Microcontroller Input

Implementing the SZMMBZ27VCLT1G in a circuit to protect a microcontroller input:

1. Placement in Circuit: Connect one side of the SZMMBZ27VCLT1G to the microcontroller's input pin.

2. Ground Connection: Attach the other side of the SZMMBZ27VCLT1G to the ground.

3. Input Signal Path: Ensure the input signal to the microcontroller passes through the diode.

4. Resistor Addition: To restrict the amount of current passing through the diode, if needed, add a series resistor.

Considerations for Design

When designing circuits with the SZMMBZ27VCLT1G, consider:

1. Breakdown Voltage: Match the Zener voltage to the voltage level to be protected.

2. Surge Current Capability: Ensure the diode can handle the expected surge currents.

3. Circuit Layout: Minimize the path length to the ground for effective surge protection.

4. Thermal Management: Consider heat dissipation under surge conditions.

In summary, the SZMMBZ27VCLT1G is a bidirectional Zener diode, essential for protecting electronic circuits from transient voltage spikes and surges. It is especially useful in applications that require reliable and stable voltage suppression, such as in consumer electronics, automotive, and industrial systems. When incorporating this diode into a design, it's critical to pay attention to the breakdown voltage, surge current capability, circuit layout, and thermal management to ensure effective protection and longevity of the electronic components.
