Littelfuse Inc. SRV05-4HTG-D

Part No.:: SRV05-4HTG-D

Manufacturer:: Littelfuse Inc.

Package:: SOT-23-6

Datasheet:: SRV05-4HTG-D.pdf

Description:: TVS DIODE 6VWM 15VC SOT23-6

In Stock:: 1011

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SRV05-4HTG-D Specifications

Package/Case:
SOT-23-6
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
SRV05, SPA®
ProductStatus:
Active
Type:
Steering (Rail to Rail)
UnidirectionalChannels:
4
BidirectionalChannels:
-
Voltage-ReverseStandoff(Typ):
6V (Max)
Voltage-Breakdown(Min):
6V
Voltage-Clamping(Max)@Ipp:
15V
Current-PeakPulse(10/1000µs):
10A (8/20µs)
Power-PeakPulse:
150W
PowerLineProtection:
Yes
Applications:
Ethernet
Capacitance@Frequency:
1pF @ 1MHz
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount

SRV05-4HTG-D this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SRV05-4HTG-D price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SRV05-4HTG-D to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SRV05-4HTG-D information

Views：

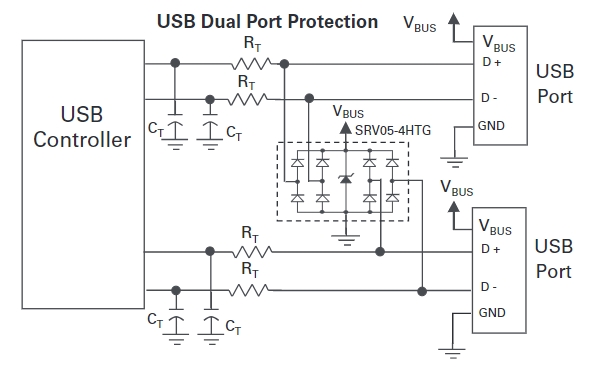

SRV05-4HTG-D Typical application Circuitry

SRV05-4HTG-D

The SRV05-4HTG-D is a transient voltage suppressor (TVS) array, similar to the SRV05-4HTG. It's designed to protect sensitive electronic equipment from voltage transients induced by electrostatic discharge (ESD), electrical fast transients (EFT), and lightning. The "-D" suffix typically indicates some form of differentiation from the standard model, which could be in packaging, operational temperature range, or other specifications.

Application Scenarios

1. Consumer Electronics Protection: Guards smartphones, laptops, and other devices against ESD damage.

2. Communication Port Protection: Ideal for protecting USB, HDMI, Ethernet, and other data ports from voltage spikes.

3. Automotive Electronics: Used in car control systems to shield against transient voltages.

Parameter Features

- Low Clamping Voltage: Effectively clamps overvoltages at a low level to protect downstream components.

- High ESD Resistance: Capable of withstanding significant ESD strikes, ensuring the safety of sensitive circuits.

- Bidirectional Protection: Shields circuits from surges in both directions, which is crucial for data line protection.

- Multi-Line Protection: Can safeguard up to four lines simultaneously, making it efficient for port protection.

Circuit Design Example: HDMI Port Protection

Objective: Implement the SRV05-4HTG-D for protecting HDMI ports in a multimedia device.

Circuit Description and Components:

1. Connection to HDMI Lines:

- Connect each HDMI data line to the corresponding I/O pins (Pins 1, 2, 3, 4) of the SRV05-4HTG-D.

- Ensure these connections provide direct protection to each line.

2. Grounding for Surge Dissipation:

- Connect the ground pin (Pin 5) of the SRV05-4HTG-D to the system's ground.

- Efficient grounding is crucial for safely diverting surge energy.

3. Proximity to Connector:

- Place the SRV05-4HTG-D as close as possible to the HDMI port on the PCB.

- Immediate surge interception is vital for effective protection.

4. Optimizing PCB Traces:

- Design short and direct PCB traces from the HDMI port to the SRV05-4HTG-D.

- Reduced trace length lowers the risk of induced surges.

Design Considerations:

- Surge Protection Rating: Match the SRV05-4HTG-D's protection capability with the expected surge levels in the application.

- Impact on Signal Integrity: Verify that the TVS does not adversely affect the HDMI signal quality.

- Layout for Low-Impedance Path: Create a PCB layout that provides a low-impedance path to ground for effective surge dissipation.

- Thermal Aspects: Consider the heat generated during surge absorption, especially in environments with frequent voltage spikes.

In summary, the SRV05-4HTG-D TVS array is crucial in protecting HDMI ports and other communication interfaces in electronic devices. When designing circuits with this component, it's important to consider adequate surge protection levels, signal integrity maintenance, PCB layout for surge dissipation, and thermal management to ensure the safety and reliability of the protected systems.
