Semtech Corporation SMF05C.TCT

Part No.:: SMF05C.TCT

Manufacturer:: Semtech Corporation

Package:: 6-TSSOP, SC-88, SOT-363

Datasheet:: SMF05C.TCT.pdf

Description:: TVS DIODE 5VWM 12.5VC SC70-6

In Stock:: 167666

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SMF05C.TCT Specifications

Package/Case:
6-TSSOP, SC-88, SOT-363
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
SMF
ProductStatus:
Active
Type:
Zener
UnidirectionalChannels:
5
BidirectionalChannels:
-
Voltage-ReverseStandoff(Typ):
5V (Max)
Voltage-Breakdown(Min):
6V
Voltage-Clamping(Max)@Ipp:
12.5V
Current-PeakPulse(10/1000µs):
8A (8/20µs)
Power-PeakPulse:
100W
PowerLineProtection:
No
Applications:
General Purpose
Capacitance@Frequency:
130pF @ 1MHz
OperatingTemperature:
-55°C ~ 125°C (TJ)
MountingType:
Surface Mount

SMF05C.TCT this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SMF05C.TCT price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SMF05C.TCT to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

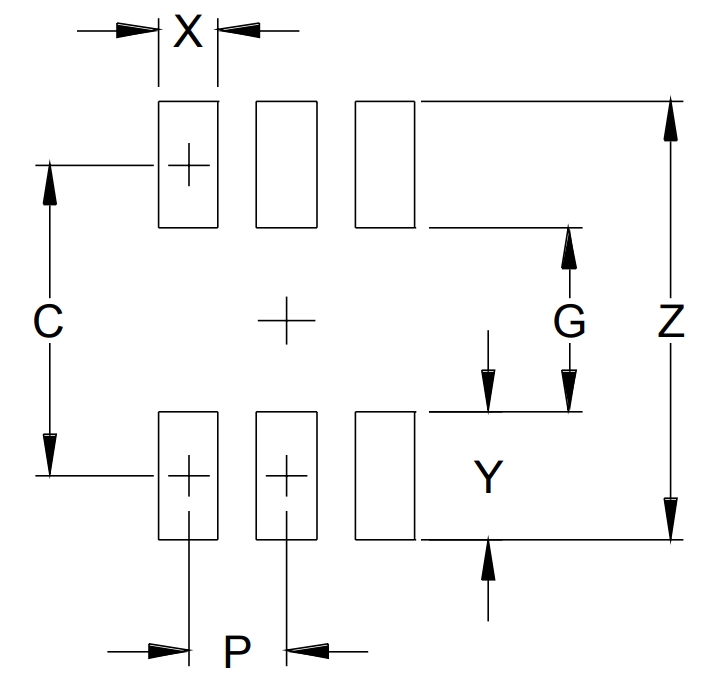

SMF05C.TCT information

Views：

SMF05C.TCT Typical application Circuitry

SMF05C.TCT

The SMF05C.TCT is a TVS (Transient Voltage Suppressor) diode array chip designed for ESD (Electrostatic Discharge) and latch-up protection in electronic devices. Here's a detailed overview:

1. Functionality of SMF05C.TCT: This chip provides ESD protection for data lines and is commonly used to safeguard electronic components from electrostatic discharges and transient voltage spikes.

2. Application Scenarios: SMF05C.TCT is particularly useful in portable electronic devices where space is limited, and sensitive components require protection from ESD. It's commonly employed in USB interfaces, data lines in communication ports, and other I/O interfaces in consumer electronics.

3. Key Parameters and Characteristics:

- 5 V working voltage.

- ESD protection: ± 15 kV (air), ± 8 kV (contact).

- EFT (Electrical Fast Transient) protection: 40 A (5/50 ns).

- Protects up to 5 I/O lines.

- Low leakage current.

- Solid-state silicon-avalanche technology.

- Small package suitable for portable electronics.

4. Circuit Integration (Application Example: USB Interface Protection):

- Connection to I/O Lines: Connect each I/O line from the USB port to one of the five I/O pins of the SMF05C.TCT.

- Ground Connection: Connect the ground pin of the SMF05C.TCT to the system ground.

- Power Supply: Ensure the power supply to the chip does not exceed the 5 V working voltage.

- Leakage Current Consideration: Ensure the circuit design accommodates the low leakage current of the SMF05C.TCT.

- Space Allocation: Given its small package, plan the PCB layout to accommodate the chip near the protected I/O lines.

5. Design Considerations:

- Voltage Rating: Ensure that the working voltage of the circuit does not exceed the chip's rating.

- Placement: Place the SMF05C.TCT as close as possible to the port or interface being protected.

- PCB Layout: Optimize the PCB layout for minimal path resistance and inductance between the SMF05C.TCT and the protected lines.

Incorporating the SMF05C.TCT in a USB interface protection circuit, you would ensure robust ESD protection for the sensitive data lines, maintaining the integrity and reliability of the electronic device. Remember, the key aspect of using the SMF05C.TCT is its ability to protect multiple I/O lines with a single chip, making it an efficient choice for compact electronic designs.
