Name: SMBJ5.0CAHM3/H
Brand: Vishay General Semiconductor - Diodes Division
SKU: SMBJ5.0CAHM3/H
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Vishay General Semiconductor - Diodes Division SMBJ5.0CAHM3/H

Part No.:: SMBJ5.0CAHM3/H

Manufacturer:: Vishay General Semiconductor - Diodes Division

Package:: DO-214AA, SMB

Datasheet:: SMBJ5.0CAHM3/H.pdf

Description:: TVS DIODE 5VWM 9.2VC DO214AA

In Stock:: 3340

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SMBJ5.0CAHM3/H Specifications

Package/Case:
DO-214AA, SMB
Packaging:
Tape & Reel (TR)
Series:
Automotive, AEC-Q101, TransZorb®
ProductStatus:
Discontinued at Mosen
Type:
Zener
UnidirectionalChannels:
-
BidirectionalChannels:
1
Voltage-ReverseStandoff(Typ):
5V
Voltage-Breakdown(Min):
6.4V
Voltage-Clamping(Max)@Ipp:
9.2V
Current-PeakPulse(10/1000µs):
65.2A
Power-PeakPulse:
600W
PowerLineProtection:
No
Applications:
Automotive, Telecom
Capacitance@Frequency:
-
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount

SMBJ5.0CAHM3/H this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SMBJ5.0CAHM3/H price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SMBJ5.0CAHM3/H to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SMBJ5.0CAHM3/H information

Views：

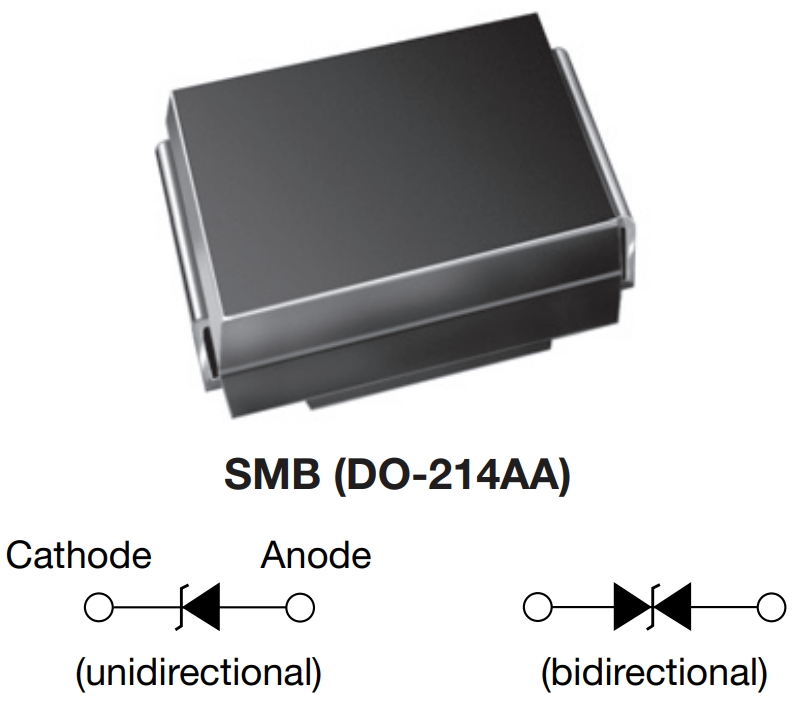

SMBJ5.0CAHM3/H Typical application Circuitry

SMBJ5.0CAHM3 H

The SMBJ5.0CAHM3/H is a type of transient voltage suppressor (TVS) diode. This component is primarily used to protect sensitive electronic equipment from voltage spikes and surges, which can be caused by lightning strikes, power transitions, or other transient voltage events. TVS diodes are essential in preserving the integrity and reliability of electronic circuits in various environments.

Application circumstances:

The SMBJ5.0CAHM3/H and other TVS diodes are used in a variety of circumstances, such as the following:

- Consumer Electronics: Protecting sensitive components in devices like smartphones, laptops, and televisions.

- Industrial Control Systems: Shielding against voltage spikes in machinery and control units.

- Telecommunication Equipment: Safeguarding communication devices and infrastructure from electrical transients.

- Automotive Electronics: Ensuring the reliability of electronic components in vehicles, especially with the rise of electric and hybrid vehicles.

Key Specifications and Features:

- Breakdown Voltage: The SMBJ5.0CAHM3/H has a specific breakdown voltage, typically around 5.0 volts, which determines the threshold at which the diode begins to conduct.

- Peak Pulse Power: This parameter indicates the maximum transient power the diode can handle without failure.

- Clamping Voltage: Upon activation, the diode clamps the voltage to a safe level, protecting the downstream components.

- Response Time: TVS diodes like this model have an extremely fast response time, essential for countering sudden voltage spikes.

Circuit Integration – Example with a Microcontroller:

Overview: Integrating the SMBJ5.0CAHM3/H with a microcontroller (MCU) to protect against voltage spikes.

1. Connection to Power Supply:

- Connect the cathode of the SMBJ5.0CAHM3/H to the VCC line of the MCU.

- Connect the anode to the ground (GND).

2. I/O Pin Protection:

- Place the diode in parallel with any sensitive I/O pins that might be exposed to transients.

3. Programming Pins:

- If the MCU has dedicated programming pins (e.g., for SPI, I2C), ensure they are also protected by similar TVS diodes.

4. Decoupling Capacitors:

- Include decoupling capacitors near the power pins of the MCU for additional noise reduction.

Design Considerations:

When designing a circuit with the SMBJ5.0CAHM3/H, consider the following:

- Voltage Rating: Ensure the breakdown voltage of the diode matches the voltage levels in your circuit.

- Placement: Position the diode close to potential entry points of transients.

- Circuit Layout: Minimize trace lengths to reduce the chance of induced transients.

- Thermal Management: Be mindful of the heat dissipation, especially in high-power applications.

In summary, the SMBJ5.0CAHM3/H is a robust and versatile TVS diode that provides critical protection in a variety of electronic applications. Its integration into circuits, especially in sensitive areas like microcontroller interfaces, is crucial for safeguarding against transient voltage events. Proper consideration of its specifications and thoughtful circuit design are key to leveraging its protective capabilities effectively.
