Name: SMBJ5.0AHM3/I
Brand: Vishay General Semiconductor - Diodes Division
SKU: SMBJ5.0AHM3/I
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Vishay General Semiconductor - Diodes Division SMBJ5.0AHM3/I

Part No.:: SMBJ5.0AHM3/I

Manufacturer:: Vishay General Semiconductor - Diodes Division

Package:: DO-214AA, SMB

Datasheet:: SMBJ5.0AHM3/I.pdf

Description:: TVS DIODE 5VWM 9.2VC DO214AA

In Stock:: 3271

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SMBJ5.0AHM3/I Specifications

Package/Case:
DO-214AA, SMB
Packaging:
Tape & Reel (TR)
Series:
Automotive, AEC-Q101, TransZorb®
ProductStatus:
Discontinued at Mosen
Type:
Zener
UnidirectionalChannels:
1
BidirectionalChannels:
-
Voltage-ReverseStandoff(Typ):
5V
Voltage-Breakdown(Min):
6.4V
Voltage-Clamping(Max)@Ipp:
9.2V
Current-PeakPulse(10/1000µs):
65.2A
Power-PeakPulse:
600W
PowerLineProtection:
No
Applications:
Automotive, Telecom
Capacitance@Frequency:
-
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount

SMBJ5.0AHM3/I this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SMBJ5.0AHM3/I price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SMBJ5.0AHM3/I to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SMBJ5.0AHM3/I information

Views：

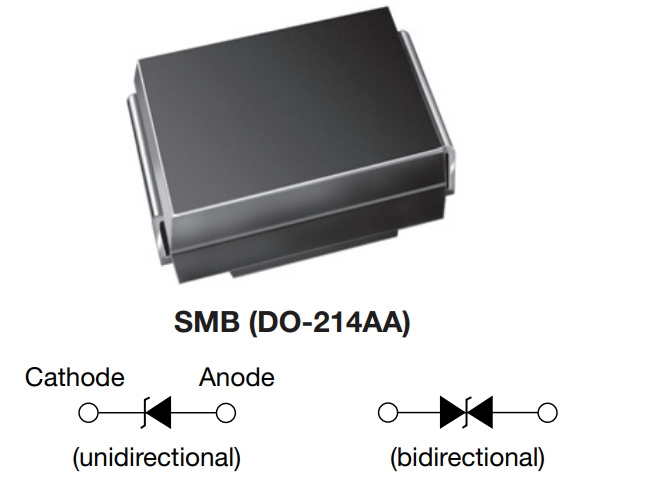

SMBJ5.0AHM3/I Typical application Circuitry

SMBJ5.0AHM3 I

A TVS (Transient Voltage Suppressor) diode like the SMBJ5.0AHM3/I is made to shield electronic circuits from transients or voltage spikes. In order to shield downstream delicate components from harm, it clamps the overvoltage to a safe level.

Main Features

To shield electronic components from high-voltage transients including electrostatic discharge (ESD), lightning, and switching noise, the SMBJ5.0AHM3/I offers transient voltage suppression. It works by shunting excess energy away from the protected component, and clamping the voltage to a safe level.

Application Scenarios

The SMBJ5.0AHM3/I is widely used in scenarios that require protection against voltage spikes, such as power supply circuits, data lines, and other sensitive electronics. It's particularly useful in protecting against ESD in USB interfaces, network lines, or other communication ports.

Characteristic Parameters

- Stand-off Voltage: Typically around 5.0V, the voltage below which the diode does not conduct.

- Breakdown Voltage: The voltage at which the diode starts to conduct sharply.

- Clamping Voltage: The maximum voltage the diode will allow across the protected component during a transient.

- Peak Pulse Power: The maximum transient power the diode can dissipate.

Circuit Integration: USB Port Protection

In this application, the SMBJ5.0AHM3/I is used to protect a USB port from ESD and other voltage transients.

1. Proper Orientation

- Cathode (End with Band): Connect this end to the data or power line in the USB port that you wish to protect.

- Anode (Opposite End): Connect this end to the system ground.

2. Placement

- Close to Connector: Place the SMBJ5.0AHM3/I as close as possible to the USB connector to ensure that it clamps the transient voltage before it can penetrate deeper into the circuit.

3. Grounding

- Solid Ground Connection: Ensure that the ground to which the SMBJ5.0AHM3/I is connected is solid and has a low impedance path, to efficiently divert the transient energy away from the sensitive components.

Design Considerations

When designing circuits with the SMBJ5.0AHM3/I, it's crucial to consider the following:

1. Placement: Position the SMBJ5.0AHM3/I close to the input terminals or connectors to intercept transients as early as possible.

2. Ground Path: Ensure a low impedance path to ground to enable the efficient diversion of transient energy.

3. Voltage Rating: Select a TVS diode with a standoff voltage higher than the normal operating voltage but lower than the voltage at which damage can occur.

4. Peak Power Capability: Ensure the selected TVS diode can handle the peak transient power based on the specific application requirements.

In conclusion, the SMBJ5.0AHM3/I is a critical component in safeguarding sensitive electronics from voltage spikes and transients. Its implementation in USB port protection exemplifies its capability to shield against ESD and other transient events effectively. Careful attention to placement, grounding, voltage rating, and peak power capability is essential in leveraging the full potential of the SMBJ5.0AHM3/I, making it a robust and reliable choice for transient voltage suppression in a wide array of electronic applications. Whether for USB interfaces, network lines, or other communication ports, the SMBJ5.0AHM3/I proves to be an indispensable tool in achieving secure and reliable electronic systems.
