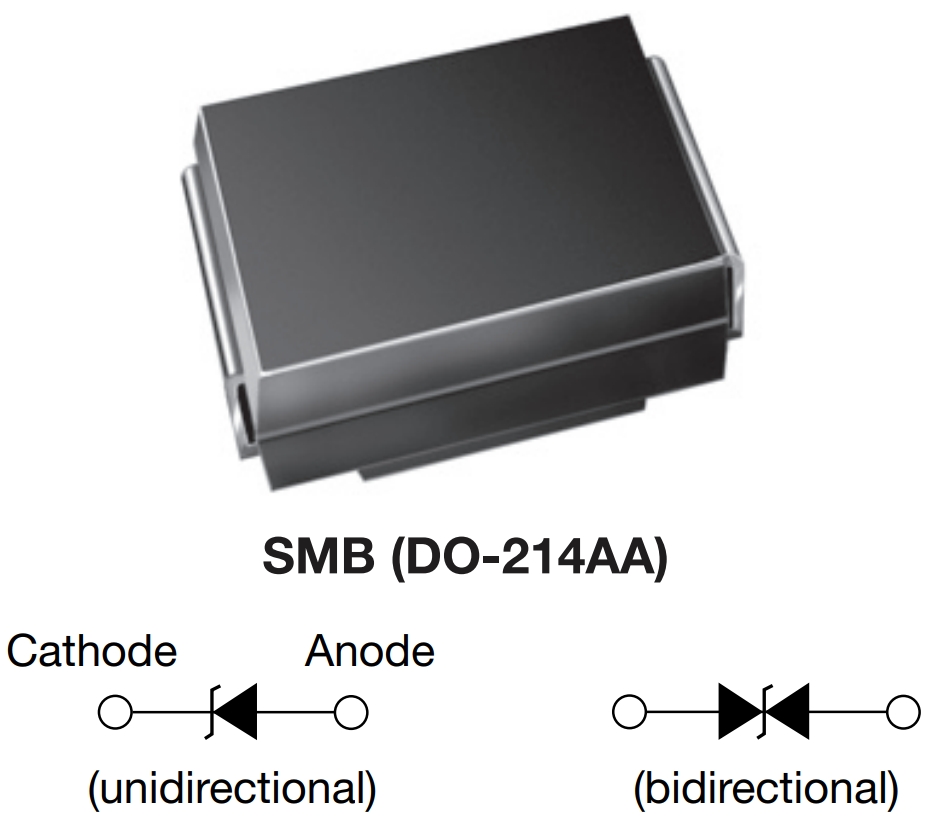

Vishay General Semiconductor - Diodes Division SMBJ15CAHE3/5B

Part No.:: SMBJ15CAHE3/5B

Manufacturer:: Vishay General Semiconductor - Diodes Division

Package:: DO-214AA, SMB

Datasheet:: SMBJ15CAHE3/5B.pdf

Description:: TVS DIODE 15VWM 24.4VC DO214AA

In Stock:: 2269

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SMBJ15CAHE3/5B Specifications

Package/Case:
DO-214AA, SMB
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
Automotive, AEC-Q101, TransZorb®
ProductStatus:
Discontinued at Mosen
Type:
Zener
UnidirectionalChannels:
-
BidirectionalChannels:
1
Voltage-ReverseStandoff(Typ):
15V
Voltage-Breakdown(Min):
16.7V
Voltage-Clamping(Max)@Ipp:
24.4V
Current-PeakPulse(10/1000µs):
24.6A
Power-PeakPulse:
600W
PowerLineProtection:
No
Applications:
Automotive
Capacitance@Frequency:
-
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount

SMBJ15CAHE3/5B this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SMBJ15CAHE3/5B price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SMBJ15CAHE3/5B to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SMBJ15CAHE3/5B information

Views：

SMBJ15CAHE3/5B Typical application Circuitry

SMBJ15CAHE3 5B

A transient voltage suppressor (TVS) diode, the SMBJ15CAHE3/5B was created especially to prevent electrostatic discharge (ESD) and suppress transient voltages in electronic circuits. It is a part of the SMBJ series of TVS diodes.

Key Features and Parameters:

- Voltage Rating: The "15" in SMBJ15CAHE3/5B indicates that it has a standoff voltage of 15 volts.

- Power Dissipation: It can handle transient power dissipation of up to 600 watts (for an 8/20 μs waveform).

- Low Clamping Voltage: Provides effective protection by clamping transient voltages to a safe level.

- Fast Response Time: Responds quickly to transient voltage spikes, limiting potential damage to sensitive components.

- Bidirectional: Offers protection in both forward and reverse directions.

- SMB Package: Surface-mount package for easy integration onto PCBs.

- RoHS Compliant: Environmentally friendly and lead-free.

Application Scenario: ESD Protection for a USB Port:

Circuit Description:

In this scenario, we will design a circuit using the SMBJ15CAHE3/5B to provide ESD protection for a USB port. USB ports are common entry points for ESD events, so protecting them is crucial.

Components Needed:

- SMBJ15CAHE3/5B TVS diode

- USB Connector

- Resistors (optional)

- Ground connection

Circuit Design:

1. SMBJ15CAHE3/5B Connection: Connect the SMBJ15CAHE3/5B diode between the data lines (D+ and D-) of the USB connector. This will protect against voltage spikes coming in through these lines.

2. Ground Connection: Connect the cathode (the side with a stripe on the SMBJ15CAHE3/5B) of the TVS diode to the ground (GND) of the USB connector. This provides a reference point for the diode's clamping action.

3. Optional Resistors (if needed): Depending on the specific application and ESD requirements, you may place resistors in series with the USB data lines before connecting them to the TVS diode. These resistors can help control the transient current during an ESD event.

4. Power Supply Connection (if applicable): Connect the anode of the SMBJ15CAHE3/5B TVS diode to the USB's power supply line (Vbus) if the USB port is powered. This protects against voltage surges on the power line.

Considerations:

1. Diode Orientation: Ensure the correct orientation of the SMBJ15CAHE3/5B diode. The cathode should connect to the ground, and the anode to the signal or power lines.

2. ESD Ratings: Ensure that the TVS diode you select meets the required ESD rating for your application. The SMBJ15CAHE3/5B is suitable for most USB ESD protection needs.

3. Layout and PCB Design: Consider proper layout and PCB design practices to minimize parasitic inductance and ensure effective ESD protection.

4. Signal Integrity: Check the impact of the TVS diode on signal integrity and data transmission rates, especially in high-speed USB applications.

In summary, the SMBJ15CAHE3/5B TVS diode is a critical component in protecting sensitive electronics from ESD events, such as those encountered in USB ports. Proper circuit design, component selection, and layout considerations are essential to ensure reliable ESD protection without compromising signal integrity.
