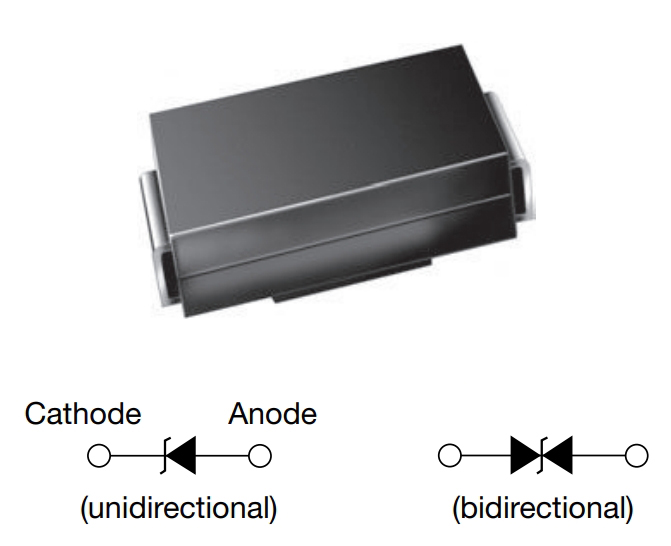

Taiwan Semiconductor Corporation SMAJ5.0CAHR3G

Part No.:: SMAJ5.0CAHR3G

Manufacturer:: Taiwan Semiconductor Corporation

Package:: DO-214AC, SMA

Datasheet:: SMAJ5.0CAHR3G.pdf

Description:: TVS DIODE 5VWM 9.2VC DO214AC

In Stock:: 2967

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SMAJ5.0CAHR3G Specifications

Package/Case:
DO-214AC, SMA
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
Automotive, AEC-Q101, SMAJ
ProductStatus:
Active
Type:
Zener
UnidirectionalChannels:
-
BidirectionalChannels:
1
Voltage-ReverseStandoff(Typ):
5V
Voltage-Breakdown(Min):
6.4V
Voltage-Clamping(Max)@Ipp:
9.2V
Current-PeakPulse(10/1000µs):
43.5A
Power-PeakPulse:
400W
PowerLineProtection:
No
Applications:
Automotive
Capacitance@Frequency:
-
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount

SMAJ5.0CAHR3G this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SMAJ5.0CAHR3G price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SMAJ5.0CAHR3G to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SMAJ5.0CAHR3G information

Views：

SMAJ5.0CAHR3G Typical application Circuitry

SMAJ5.0CAHR3G

SMAJ5.0CAHR3G is a Transient Voltage Suppression (TVS) diode, specifically designed for protecting electronic circuits from voltage spikes and surges. It's a bidirectional TVS diode, efficient in guarding against transient voltages in both polarities.

Application Scenarios

SMAJ5.0CAHR3G is typically used in consumer electronics, telecommunication equipment, automotive electronics, and industrial control systems for protecting sensitive components from electrical transients such as electrostatic discharges, lightning strikes, and inductive load switching.

Parameter Features

- Bidirectional Protection: Capable of clamping voltage spikes in both positive and negative directions.

- Standoff Voltage: Rated typically around 5.0V.

- Surge Tolerance: Efficient in handling significant transient voltage surges.

Circuit Connection Method

An application example is using SMAJ5.0CAHR3G to protect a network router's Ethernet port.

Diode Placement

- Across Power Lines: Install SMAJ5.0CAHR3G directly across the Ethernet port's power input lines (VCC and GND).

Bidirectional Functionality

- Orientation in Circuit: Due to its bidirectional nature, SMAJ5.0CAHR3G does not require specific orientation when placed in the circuit.

Integration with Ethernet Port

- Parallel Configuration: Connect SMAJ5.0CAHR3G in parallel with the power lines feeding the Ethernet port.

Effective Grounding

- Stable Ground Line: Ensure that the ground connection is robust to optimize the performance of SMAJ5.0CAHR3G.

Design Considerations

1. Voltage Rating Match: Choose SMAJ5.0CAHR3G with a standoff voltage that matches the operating voltage of the router.

2. Placement in Circuit: Position SMAJ5.0CAHR3G as close to the Ethernet port as possible for optimal protection.

3. Circuit Impedance Considerations: Take into account the impedance of the Ethernet interface when integrating SMAJ5.0CAHR3G.

4. Thermal Management: Plan for potential heat dissipation in scenarios where SMAJ5.0CAHR3G might experience frequent surges.

In summary, SMAJ5.0CAHR3G plays a crucial role in protecting network routers and similar devices from transient voltage spikes, ensuring safety and longevity of sensitive electronic components with its bidirectional clamping capability.
