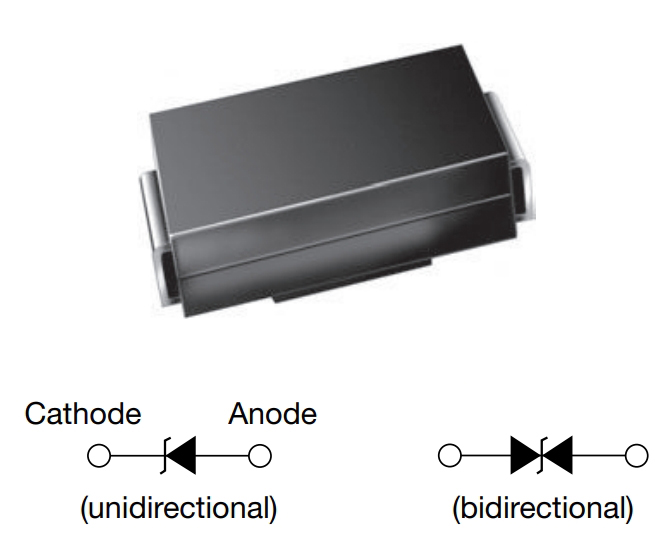

Vishay General Semiconductor - Diodes Division SMAJ5.0CAHM3/I

Part No.:: SMAJ5.0CAHM3/I

Manufacturer:: Vishay General Semiconductor - Diodes Division

Package:: DO-214AC, SMA

Datasheet:: SMAJ5.0CAHM3/I.pdf

Description:: TVS DIODE 5VWM 9.2VC DO214AC

In Stock:: 2706

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SMAJ5.0CAHM3/I Specifications

Package/Case:
DO-214AC, SMA
Packaging:
Tape & Reel (TR)
Series:
Automotive, AEC-Q101, TransZorb®
ProductStatus:
Discontinued at Mosen
Type:
Zener
UnidirectionalChannels:
-
BidirectionalChannels:
1
Voltage-ReverseStandoff(Typ):
5V
Voltage-Breakdown(Min):
6.4V
Voltage-Clamping(Max)@Ipp:
9.2V
Current-PeakPulse(10/1000µs):
43.5A
Power-PeakPulse:
400W
PowerLineProtection:
No
Applications:
Automotive, Telecom
Capacitance@Frequency:
-
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount

SMAJ5.0CAHM3/I this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SMAJ5.0CAHM3/I price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SMAJ5.0CAHM3/I to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.
