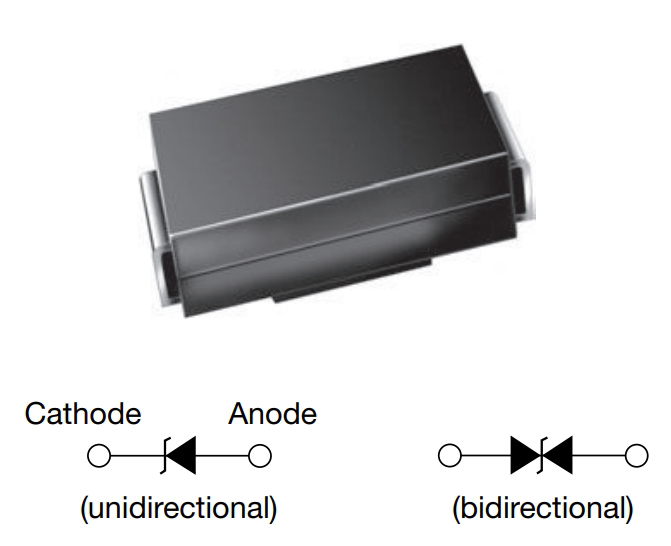

Vishay General Semiconductor - Diodes Division SMAJ5.0CAHM3/H

Part No.:: SMAJ5.0CAHM3/H

Manufacturer:: Vishay General Semiconductor - Diodes Division

Package:: DO-214AC, SMA

Datasheet:: SMAJ5.0CAHM3/H.pdf

Description:: TVS DIODE 5VWM 9.2VC DO214AC

In Stock:: 3228

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SMAJ5.0CAHM3/H Specifications

Package/Case:
DO-214AC, SMA
Packaging:
Tape & Reel (TR)
Series:
Automotive, AEC-Q101, TransZorb®
ProductStatus:
Discontinued at Mosen
Type:
Zener
UnidirectionalChannels:
-
BidirectionalChannels:
1
Voltage-ReverseStandoff(Typ):
5V
Voltage-Breakdown(Min):
6.4V
Voltage-Clamping(Max)@Ipp:
9.2V
Current-PeakPulse(10/1000µs):
43.5A
Power-PeakPulse:
400W
PowerLineProtection:
No
Applications:
Automotive, Telecom
Capacitance@Frequency:
-
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount

SMAJ5.0CAHM3/H this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SMAJ5.0CAHM3/H price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SMAJ5.0CAHM3/H to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SMAJ5.0CAHM3/H information

Views：

SMAJ5.0CAHM3/H Typical application Circuitry

SMAJ5.0CAHM3 H

A transient voltage suppression (TVS) diode, such as the SMAJ5.0CAHM3/H, is used to guard electronic circuits from voltage surges and spikes. This part is essential in applications where transient voltage events could cause damage to electronic components.

Application Scenarios

SMAJ5.0CAHM3/H is commonly used in consumer electronics, telecommunication systems, and automotive electronics, where it provides protection against transient voltages such as those caused by electrostatic discharge, lightning strikes, and inductive load switching.

Bidirectional Clamping:

- Capable of effectively clamping transient voltages in both positive and negative directions is one of the parameter features.

- Standoff Voltage: Designed for a standoff voltage of approximately 5.0V.

- High Surge Tolerance: Capable of withstanding significant transient voltage spikes.

Circuit Connection Method

An application example is using SMAJ5.0CAHM3/H in an automotive power supply circuit for transient voltage protection.

1.Correct Placement:

- Across Power Supply Lines: Install SMAJ5.0CAHM3/H directly across the positive and ground lines of the power supply.

2.Directionality:

- Bidirectional Nature: No specific orientation is required for SMAJ5.0CAHM3/H due to its bidirectional functionality.

3.Integration with Power Supply:

- Parallel Connection: Place SMAJ5.0CAHM3/H in parallel with the circuitry of the automotive power supply.

4.Effective Grounding:

- Secure Grounding: For best results, make sure there is a solid and dependable ground connection.

Design Considerations

1. Voltage Rating Appropriateness: Select SMAJ5.0CAHM3/H with a suitable voltage rating for the automotive power supply system.

2. Proximity to Protected Circuit: Mount SMAJ5.0CAHM3/H as close to the potential entry point of the transient voltage as possible.

3. Circuit Impedance Considerations: Be aware of the overall impedance of the circuit when incorporating SMAJ5.0CAHM3/H.

4. Thermal Handling: Account for the heat dissipation of SMAJ5.0CAHM3/H during prolonged or intense transient events.

In conclusion, SMAJ5.0CAHM3/H plays a vital role in safeguarding electronic components in automotive power systems, and other applications, from potentially damaging transient voltage spikes. Its bidirectional clamping capability makes it an effective solution for a wide range of protective applications.
