Name: SMAJ5.0AHM3/I
Brand: Vishay General Semiconductor - Diodes Division
SKU: SMAJ5.0AHM3/I
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

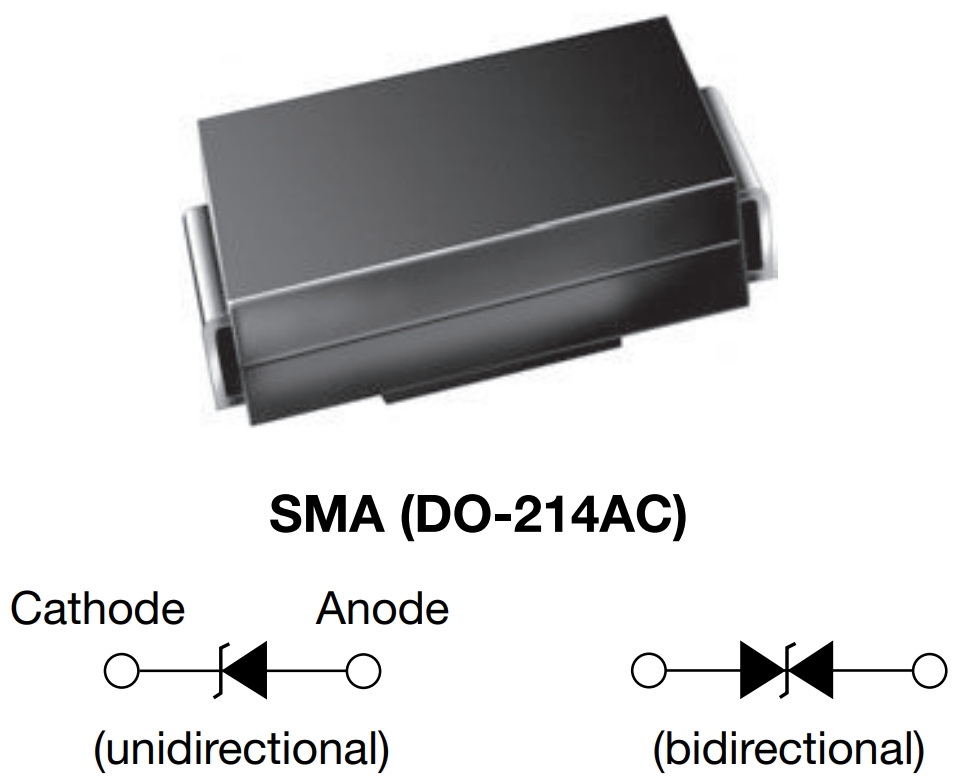

Vishay General Semiconductor - Diodes Division SMAJ5.0AHM3/I

Part No.:: SMAJ5.0AHM3/I

Manufacturer:: Vishay General Semiconductor - Diodes Division

Package:: DO-214AC, SMA

Datasheet:: SMAJ5.0AHM3/I.pdf

Description:: TVS DIODE 5VWM 9.2VC DO214AC

In Stock:: 3810

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SMAJ5.0AHM3/I Specifications

Package/Case:
DO-214AC, SMA
Packaging:
Tape & Reel (TR)
Series:
Automotive, AEC-Q101, TransZorb®
ProductStatus:
Discontinued at Mosen
Type:
Zener
UnidirectionalChannels:
1
BidirectionalChannels:
-
Voltage-ReverseStandoff(Typ):
5V
Voltage-Breakdown(Min):
6.4V
Voltage-Clamping(Max)@Ipp:
9.2V
Current-PeakPulse(10/1000µs):
43.5A
Power-PeakPulse:
400W
PowerLineProtection:
No
Applications:
Automotive, Telecom
Capacitance@Frequency:
-
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount
