Name: SMAJ5.0AHM3/H
Brand: Vishay General Semiconductor - Diodes Division
SKU: SMAJ5.0AHM3/H
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Vishay General Semiconductor - Diodes Division SMAJ5.0AHM3/H

Part No.:: SMAJ5.0AHM3/H

Manufacturer:: Vishay General Semiconductor - Diodes Division

Package:: DO-214AC, SMA

Datasheet:: SMAJ5.0AHM3/H.pdf

Description:: TVS DIODE 5VWM 9.2VC DO214AC

In Stock:: 2608

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SMAJ5.0AHM3/H Specifications

Package/Case:
DO-214AC, SMA
Packaging:
Tape & Reel (TR)
Series:
Automotive, AEC-Q101, TransZorb®
ProductStatus:
Discontinued at Mosen
Type:
Zener
UnidirectionalChannels:
1
BidirectionalChannels:
-
Voltage-ReverseStandoff(Typ):
5V
Voltage-Breakdown(Min):
6.4V
Voltage-Clamping(Max)@Ipp:
9.2V
Current-PeakPulse(10/1000µs):
43.5A
Power-PeakPulse:
400W
PowerLineProtection:
No
Applications:
Automotive, Telecom
Capacitance@Frequency:
-
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount

SMAJ5.0AHM3/H this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SMAJ5.0AHM3/H price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SMAJ5.0AHM3/H to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SMAJ5.0AHM3/H information

Views：

SMAJ5.0AHM3/H Typical application Circuitry

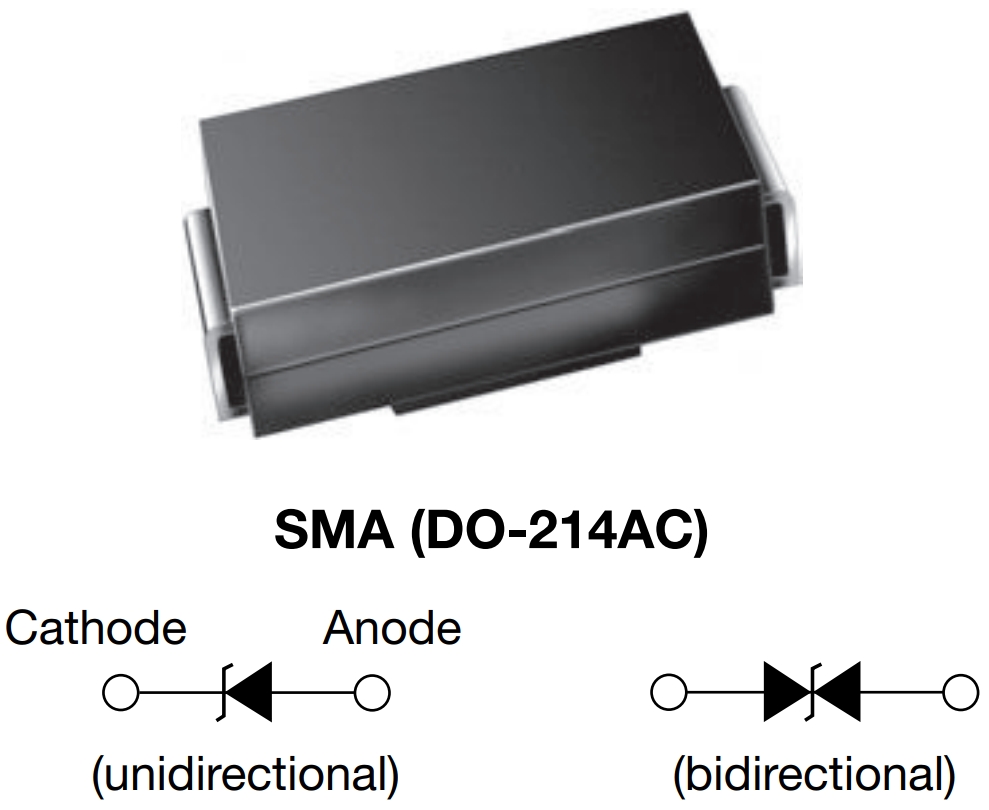

SMAJ5.0AHM3 H

The SMAJ5.0AHM3/H is a type of Transient Voltage Suppressor (TVS) diode. It's designed to protect sensitive electronic equipment from voltage spikes and transients. Now, let's explore its applications, key features, and a detailed circuit connection example, including considerations for circuit design.

Applications of SMAJ5.0AHM3/H:

1. Consumer Electronics: It's commonly used in consumer electronics like smartphones, PCs, and TVs to protect against overvoltage conditions.

2. Industrial Systems: In industrial control systems, it ensures the safety of microcontroller-based machinery.

3. Telecommunications: Telecommunication equipment, which is sensitive to voltage spikes, often employs such diodes for protection.

4. Automotive Electronics: Given the variable voltage conditions in vehicles, the SMAJ5.0AHM3/H finds applications in automotive electronics as well.

Key Features:

1. Voltage Range: This diode typically operates in the voltage range suitable for most consumer and industrial applications.

2. Fast Response Time: It has a rapid response to transient over-voltage, making it ideal for protecting sensitive electronics.

3. Low Leakage Current: Ensures minimal power loss in standby mode.

4. Robust Construction: Designed to withstand repeated transient conditions without degradation.

Detailed Circuit Connection: Protecting a Microcontroller:

- Objective: Protect a microcontroller (MCU) from voltage spikes.

- Components: MCU, SMAJ5.0AHM3/H diode, power supply, resistors, capacitors.

Circuit Description:

1. Diode Placement: Connect the SMAJ5.0AHM3/H across the power supply line (Vcc) and ground near the MCU. This placement ensures immediate protection against voltage spikes.

2. Vcc Connection: The anode of the diode connects to the ground, while the cathode connects to the Vcc.

3. I/O Pin Protection: For I/O pins, place individual SMAJ5.0AHM3/H diodes near each sensitive pin, with the cathode to the pin and the anode to the ground.

4. Decoupling Capacitors: Place capacitors near the MCU's power pins to stabilize the voltage and provide an immediate power source during transient events.

Programming Pins:

- Serial Communication Pins: For programming, connect serial communication pins (TX, RX) from the programmer to the MCU. Protect these lines with SMAJ5.0AHM3/H.

- Reset Pin: The reset pin may require a pull-up resistor, and its line should also be protected with a SMAJ5.0AHM3/H diode.

Design Considerations:

1. Placement: Place the SMAJ5.0AHM3/H as close as possible to the component being protected.

2. Voltage Rating: Ensure the breakdown voltage of SMAJ5.0AHM3/H is slightly higher than the normal operating voltage.

3. Current Rating: Consider the peak pulse current rating of the diode to ensure it can handle the worst-case surge current.

4. Thermal Considerations: Ensure adequate thermal management, as the diode can heat up under surge conditions.

In summary, the SMAJ5.0AHM3/H diode is crucial in safeguarding electronics from voltage transients. Its application in a microcontroller circuit demonstrates its effectiveness in protecting sensitive components, necessitating careful consideration of placement, voltage, and current ratings, along with thermal management during circuit design.
