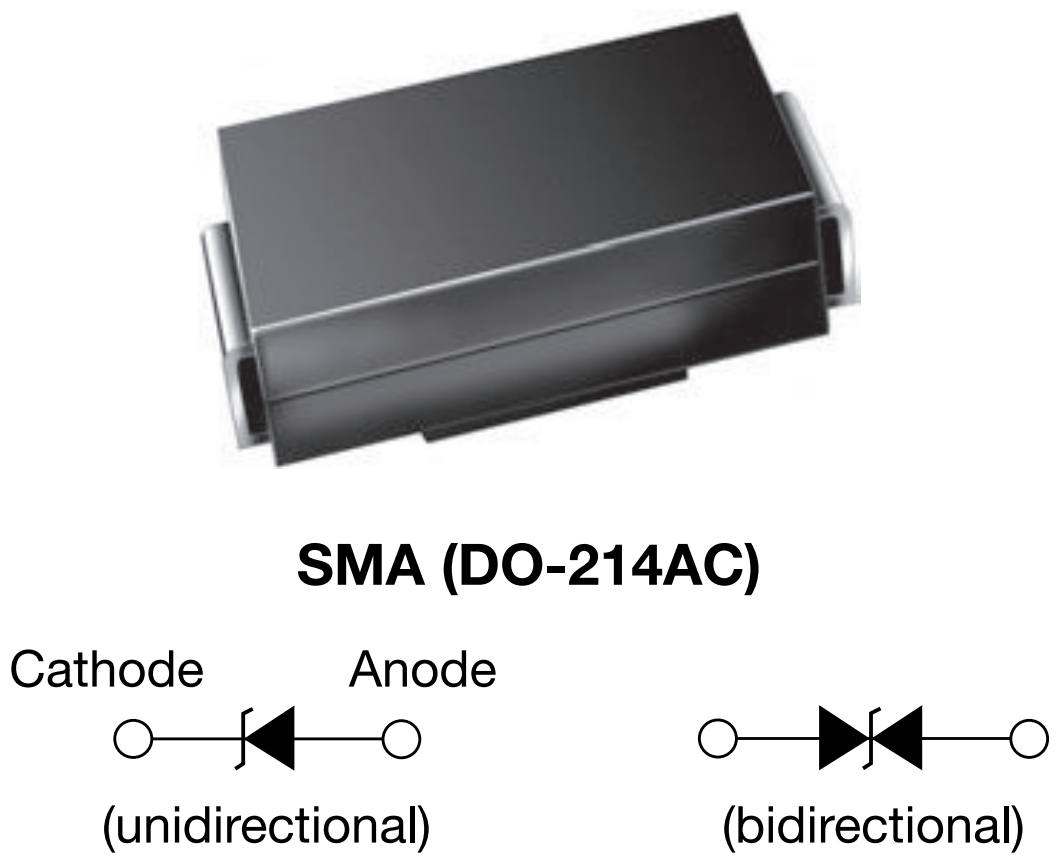

Vishay General Semiconductor - Diodes Division SMAJ5.0AHE3/61

Part No.:: SMAJ5.0AHE3/61

Manufacturer:: Vishay General Semiconductor - Diodes Division

Package:: DO-214AC, SMA

Datasheet:: SMAJ5.0AHE3/61.pdf

Description:: TVS DIODE 5VWM 9.2VC DO214AC

In Stock:: 2247

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SMAJ5.0AHE3/61 Specifications

Package/Case:
DO-214AC, SMA
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
Automotive, AEC-Q101, TransZorb®
ProductStatus:
Discontinued at Mosen
Type:
Zener
UnidirectionalChannels:
1
BidirectionalChannels:
-
Voltage-ReverseStandoff(Typ):
5V
Voltage-Breakdown(Min):
6.4V
Voltage-Clamping(Max)@Ipp:
9.2V
Current-PeakPulse(10/1000µs):
43.5A
Power-PeakPulse:
400W
PowerLineProtection:
No
Applications:
Automotive
Capacitance@Frequency:
-
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount

SMAJ5.0AHE3/61 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SMAJ5.0AHE3/61 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SMAJ5.0AHE3/61 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SMAJ5.0AHE3/61 information

Views：

SMAJ5.0AHE3/61 Typical application Circuitry

SMAJ5.0AHE3 61

Transient voltage suppressor (TVS) diodes, such as the SMAJ5.0AHE3/61, are frequently employed to shield electronic circuits from transient voltages and voltage spikes. In situations when voltage spikes could harm delicate electrical components, these devices are vital. The SMAJ5.0AHE3/61 is particularly designed to protect against overvoltages that might occur due to sudden changes in power supply, lightning, electrostatic discharge (ESD), and other transient events.

Application Scenario: One common application of the SMAJ5.0AHE3/61 is in USB interface protection. USB interfaces are often exposed to ESD events, and the SMAJ5.0AHE3/61 can be employed to safeguard the data lines and power lines in USB ports.

Circuit Connection Detail:

- Vcc Line Protection: Connect the anode of SMAJ5.0AHE3/61 to the Vcc line (5V supply line in USB) and the cathode to the ground. This setup ensures protection against surges on the power supply line.

- Data Line Protection: For protecting data lines (D+ and D- in USB), place the SMAJ5.0AHE3/61 in parallel with each line, with the anode connected to the data line and the cathode to ground.

- Grounding: Ensure a low-impedance ground path for the TVS diode to function effectively.

Parameters and Features:

- Standoff Voltage: 5.0V, which is suitable for low-voltage applications like USB interfaces.

- Peak Pulse Power: It can handle significant transient power, helping to absorb high-energy spikes.

- Clamping Voltage: The voltage level at which the diode starts conducting heavily to clamp the transient voltage.

Design Considerations:

1. Selection of Clamping Voltage: Ensure that the clamping voltage of the SMAJ5.0AHE3/61 is suitable for the specific application, neither too high to be ineffective nor too low to cause false triggering.

2. Placement: To reduce the circuit's exposure to the spike, place the TVS diode as near as feasible to the transient's possible site of entry.

3. Ground Path: Design a robust ground path to effectively shunt the surge away from sensitive components.

4. Thermal Considerations: Consider the thermal aspects of the diode under surge conditions to ensure reliability and avoid thermal runaway.

In summary, the SMAJ5.0AHE3/61 serves as a protective component in electronic circuits, particularly in scenarios like USB interface protection. Its implementation requires careful consideration of connection details, placement, and thermal management to ensure effective protection against voltage transients.
