STMicroelectronics SM6T18AY

Part No.:: SM6T18AY

Manufacturer:: STMicroelectronics

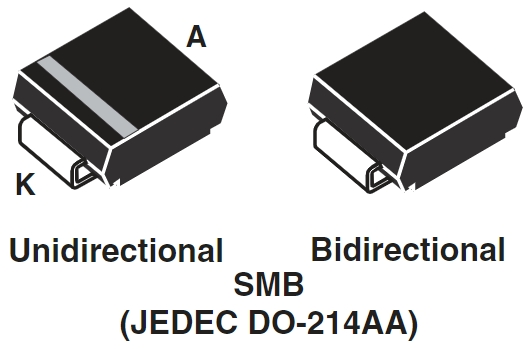

Package:: DO-214AA, SMB

Datasheet:: SM6T18AY.pdf

Description:: TVS DIODE 15.3VWM 32.5VC SMB

In Stock:: 2297

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SM6T18AY Specifications

Package/Case:
DO-214AA, SMB
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
Automotive, AEC-Q101, SM6TY, TRANSIL™
ProductStatus:
Active
Type:
Zener
UnidirectionalChannels:
1
BidirectionalChannels:
-
Voltage-ReverseStandoff(Typ):
15.3V
Voltage-Breakdown(Min):
17.1V
Voltage-Clamping(Max)@Ipp:
32.5V
Current-PeakPulse(10/1000µs):
123A (8/20µs)
Power-PeakPulse:
600W
PowerLineProtection:
No
Applications:
Automotive
Capacitance@Frequency:
-
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount
