What is the Additional Feature ?

Name: SM15T36CAHM3_A/H
Brand: Vishay General Semiconductor - Diodes Division
SKU: SM15T36CAHM3_A/H
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Vishay General Semiconductor - Diodes Division SM15T36CAHM3_A/H

Part No.:: SM15T36CAHM3_A/H

Manufacturer:: Vishay General Semiconductor - Diodes Division

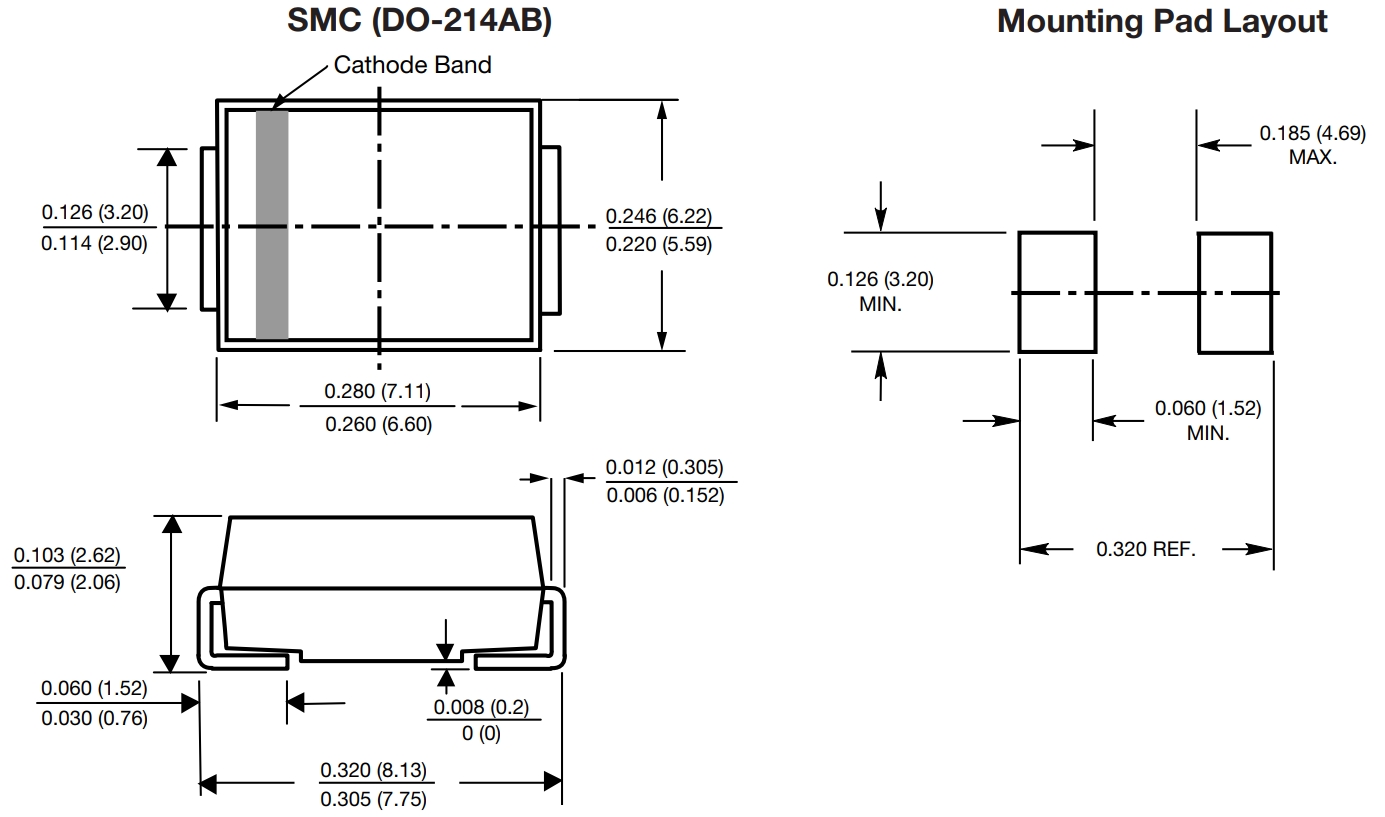

Package:: DO-214AB, SMC

Datasheet:: SM15T36CAHM3_A/H.pdf

Description:: TVS DIODE 30.8VWM 49.9VC DO214AB

In Stock:: 3606

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SM15T36CAHM3_A/H Specifications

Package/Case:
DO-214AB, SMC
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
Automotive, AEC-Q101, SM15T, TransZorb®
ProductStatus:
Active
Type:
Zener
UnidirectionalChannels:
-
BidirectionalChannels:
1
Voltage-ReverseStandoff(Typ):
30.8V
Voltage-Breakdown(Min):
34.2V
Voltage-Clamping(Max)@Ipp:
49.9V
Current-PeakPulse(10/1000µs):
30A
Power-PeakPulse:
1500W (1.5kW)
PowerLineProtection:
No
Applications:
Automotive
Capacitance@Frequency:
-
OperatingTemperature:
-65°C ~ 150°C (TJ)
MountingType:
Surface Mount

SM15T36CAHM3_A/H this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SM15T36CAHM3_A/H price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SM15T36CAHM3_A/H to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SM15T36CAHM3_A/H information

Views：

SM15T36CAHM3_A/H Typical application Circuitry

SM15T36CAHM3_A H

Transient voltage suppressor diodes, or TVS diodes, like the SM15T36CAHM3_A/H are made to shield electronic circuits against transient overvoltages and voltage spikes. It is frequently used in many different applications to protect delicate components from damage brought on by voltage spikes. I'll outline a particular application scenario and offer a thorough circuit connection below, emphasizing important factors to take into account.

Application Scenario: Surge Protection for a Microcontroller Input:

In this scenario, we want to protect a microcontroller input pin from voltage spikes generated by external sources, such as electrostatic discharge (ESD) or lightning-induced transients. We will use the SM15T36CAHM3_A/H TVS diode for this purpose.

Circuit Connection:

1. TVS Diode Connection: Connect the cathode (marked with a band on the diode body) of the SM15T36CAHM3_A/H to the microcontroller input pin (e.g., GPIO) and the anode to ground (GND).

2. Decoupling Capacitor: Place a decoupling capacitor (e.g., 100nF ceramic capacitor) between the microcontroller's VCC (power supply) and GND pins to filter out high-frequency noise.

3. Series Resistor (Optional): Depending on the specific application and requirements, you may add a series resistor (e.g., 330 ohms) between the microcontroller input pin and the TVS diode's cathode. This resistor limits the current flowing through the TVS diode during transient events and can provide additional protection.

4. Power Supply Connection: Connect the microcontroller's VCC pin to the power supply voltage and the GND pin to the ground reference.

Parameters and Features of SM15T36CAHM3_A/H:

- Breakdown Voltage: The SM15T36CAHM3_A/H has a breakdown voltage of 36V, meaning it clamps the voltage at this level or below during transient events.

- Peak Pulse Power: It can handle a peak pulse power of up to 1500W, dissipating energy from surges.

- Reverse Standoff Voltage: The reverse standoff voltage is typically slightly below the breakdown voltage, ensuring protection against lower-voltage transients as well.

- Low Leakage Current: The diode should have low leakage current when operated within its specified voltage range.

Design Considerations:

When designing a surge protection circuit using the SM15T36CAHM3_A/H, consider the following key points:

1. Voltage Levels: Ensure that the breakdown voltage of the TVS diode is suitable for your application and provides adequate protection.

2. Current Limiting: Consider using a series resistor to limit the current through the TVS diode during transient events, preventing excessive stress on the diode.

3. Placement: Position the TVS diode as close as possible to the protected input pin to minimize the length of unprotected trace.

4. Decoupling: To reduce noise and stabilize the microcontroller's power supply, add decoupling capacitors.

To sum up, the TVS diode SM15T36CAHM3_A/H is an essential part in shielding delicate electronic circuits from sudden spikes in voltage and overvoltages. When designing a surge protection circuit, it's essential to consider voltage levels, current limiting, component placement, and decoupling for robust and reliable protection.
