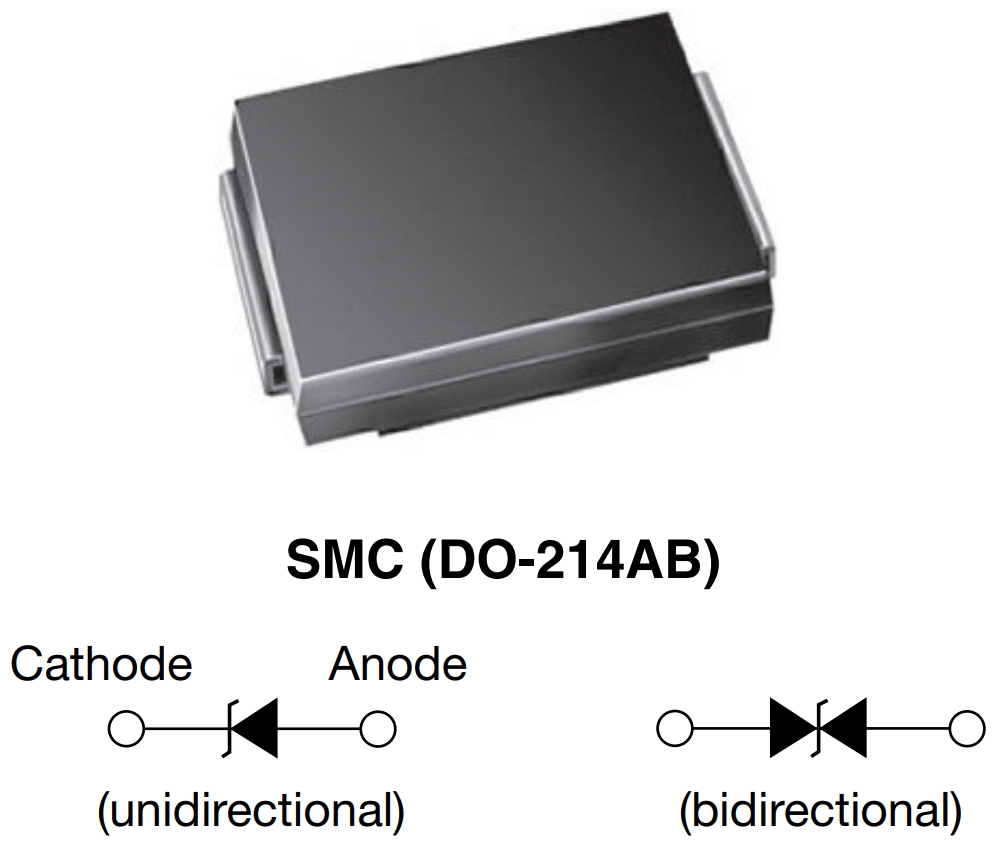

Vishay General Semiconductor - Diodes Division SM15T36CAHE3_A/H

Part No.:: SM15T36CAHE3_A/H

Manufacturer:: Vishay General Semiconductor - Diodes Division

Package:: DO-214AB, SMC

Datasheet:: SM15T36CAHE3_A/H.pdf

Description:: TVS DIODE 30.8VWM 49.9VC DO214AB

In Stock:: 3791

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SM15T36CAHE3_A/H Specifications

Package/Case:
DO-214AB, SMC
Packaging:
Tape & Reel (TR)
Series:
Automotive, AEC-Q101, SM15T, TransZorb®
ProductStatus:
Active
Type:
Zener
UnidirectionalChannels:
-
BidirectionalChannels:
1
Voltage-ReverseStandoff(Typ):
30.8V
Voltage-Breakdown(Min):
34.2V
Voltage-Clamping(Max)@Ipp:
49.9V
Current-PeakPulse(10/1000µs):
30A
Power-PeakPulse:
1500W (1.5kW)
PowerLineProtection:
No
Applications:
Automotive
Capacitance@Frequency:
-
OperatingTemperature:
-65°C ~ 150°C (TJ)
MountingType:
Surface Mount
