Epson RX-8581SA:B

Part No.:: RX-8581SA:B

Manufacturer:: Epson

Package:: 14-SOIC (0.209, 5.30mm Width)

Datasheet:: RX-8581SA:B.pdf

Description:: IC RTC CLK/CALENDAR I2C 14-SOP

In Stock:: 3338

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

RX-8581SA:B Specifications

Package/Case:
14-SOIC (0.209, 5.30mm Width)
Packaging:
Tube
Series:
RX-8581SA
ProductStatus:
Obsolete
Type:
Clock/Calendar
Features:
Alarm, Leap Year
MemorySize:
-
TimeFormat:
HH:MM:SS (24 hr)
DateFormat:
YY-MM-DD-dd
Interface:
I²C, 2-Wire Serial
Voltage-Supply:
1.8V ~ 5.5V
Voltage-SupplyBattery:
-
Current-Timekeeping(Max):
0.8µA ~ 1.2µA @ 3V ~ 5V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

RX-8581SA:B this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including RX-8581SA:B price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for RX-8581SA:B to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

RX-8581SA:B information

Views：

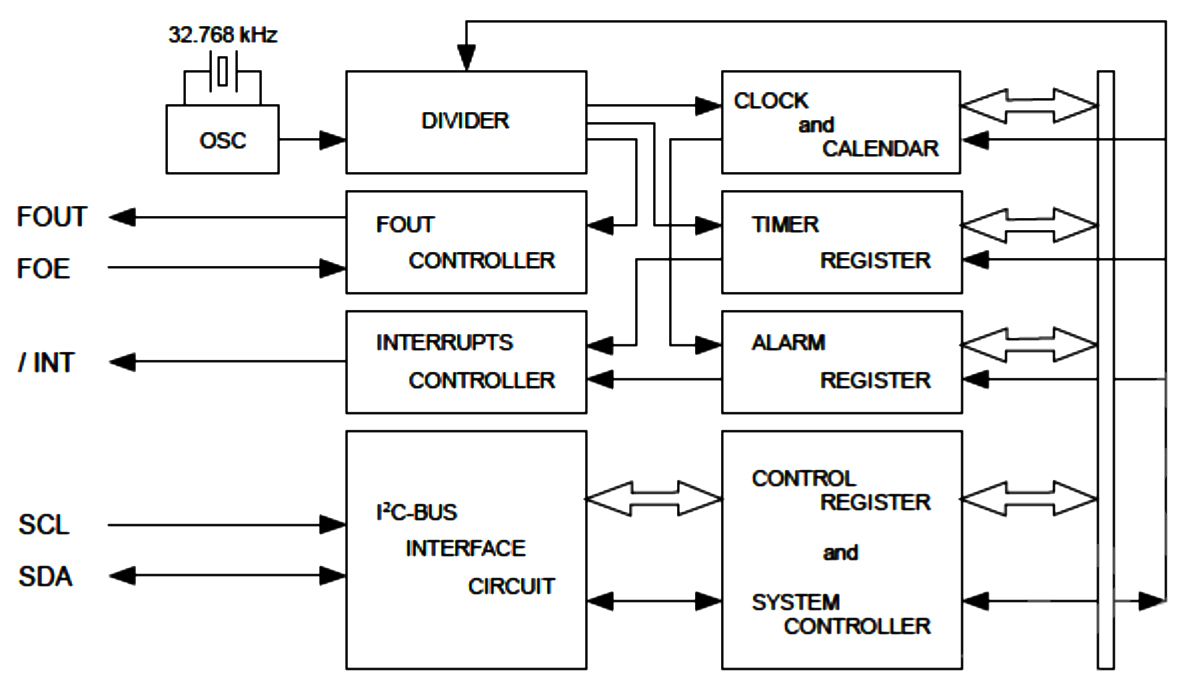

RX-8581SA:B Typical application Circuitry

RX-8581SA B

The RX-8581SA:B is an advanced real-time clock (RTC) module incorporating a built-in crystal oscillator and digital temperature compensation, ensuring accurate timekeeping across a broad temperature range. This RTC module is designed for a wide array of applications that require precise time and date information, such as embedded systems, consumer electronics, industrial controls, automotive electronics, and IoT devices.

Functionality & Application Scenarios

The RX-8581SA:B is ideally suited for:

- Consumer Electronics: Enhancing devices like smart watches, digital cameras, and home automation systems with precise time.

- Automotive Systems: Providing accurate timekeeping for dashboard clocks, navigation, and telematics systems.

- Industrial Controls: Managing time-sensitive operations and logging events in automation systems.

- Embedded Systems: Serving as a reliable time base for microcontroller projects.

- IoT Devices: Ensuring synchronized time-stamping for data collected from sensors and for managing device states over time.

Key Parameters & Features

Characteristic features of the RX-8581SA:B include:

- Integrated Crystal Oscillator: Facilitates compact designs by eliminating the need for an external crystal.

- Low Power Consumption: Makes it ideal for battery-operated devices.

- Digital Temperature Compensation: Ensures timekeeping accuracy under temperature variances.

- I2C Interface: Allows for straightforward integration with most microcontrollers.

- Battery Backup Input: Enables continuous timekeeping during power failures.

Detailed Application Scenario: Smart Home System Integration

Circuit Connection Detail

Incorporating the RX-8581SA:B into a smart home system can provide accurate timekeeping for event scheduling, device control, and data logging.

1. Power Supply Connection

Link VDD to a 3.3V power supply and connect VSS to ground. The RX-8581SA:B's VDD pin must be attached to a stable 3.3V source, and the VSS pin should be grounded to establish the power supply for the module, ensuring its operation.

2. I2C Communication Setup

Interface the SCL and SDA pins with the microcontroller's I2C bus. The Serial Clock (SCL) and Serial Data (SDA) pins of the RX-8581SA:B should be connected to the corresponding I2C pins on the microcontroller. Utilizing pull-up resistors on these lines is necessary to maintain signal integrity for reliable communication.

3. Battery Backup Installation

Connect a coin-cell battery to the VBAT pin. To ensure the RTC maintains timekeeping during power outages, the battery backup pin (VBAT) of the RX-8581SA:B is connected to a 3V lithium coin cell. This setup is critical for smart home systems that require continuous operation and accurate timekeeping, regardless of the main power supply status.

4. External Interrupt Configuration

Use the IRQ/FT pin for alarms or time-triggered actions. The interrupt/output pin (IRQ/FT) can be wired to an input pin on the microcontroller or home automation controller. This enables the RX-8581SA:B to signal the system for specific timed events, enhancing the automation capabilities of the smart home system.

Design Considerations

When designing circuits with the RX-8581SA:B, several factors should be considered:

- Power Efficiency: Optimize the circuit for low power consumption, especially important for battery-operated devices within the smart home ecosystem.

- Communication Reliability: Ensure the I2C lines are shielded from electromagnetic interference to maintain reliable data transmission.

- Environmental Conditions: Account for the operating temperature range and environmental factors that could affect the RTC's accuracy and the battery's performance.

- Battery Life: Select a suitable battery considering its lifespan and the operational requirements of the smart home system.

Integrating the RX-8581SA:B into a smart home system not only showcases its utility in providing accurate timekeeping but also highlights the importance of addressing design considerations such as power management, communication integrity, and environmental robustness. Through careful implementation, the RX-8581SA:B can significantly enhance the functionality and reliability of modern smart home systems.
