NXP USA Inc. PCF85263ATL/AX

Part No.:: PCF85263ATL/AX

Manufacturer:: NXP USA Inc.

Package:: 10-XFDFN Exposed Pad

Datasheet:: PCF85263ATL/AX.pdf

Description:: IC RTC CLK/CALENDAR I2C 10DFN

In Stock:: 2932

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

PCF85263ATL/AX this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including PCF85263ATL/AX price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for PCF85263ATL/AX to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

Views：

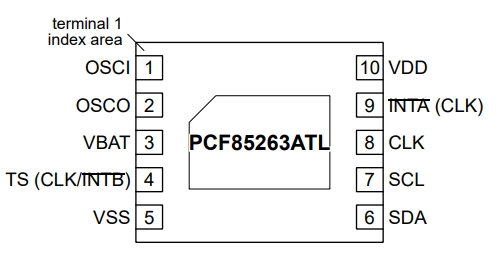

PCF85263ATL/AX Typical application Circuitry

PCF85263ATL AX

The PCF85263ATL/AX is a real-time clock (RTC) and calendar integrated circuit, designed by NXP Semiconductors. This chip is specifically developed for timekeeping applications where accurate time and date tracking is crucial. It integrates features like clock/calendar functionalities, alarms, and timers.

Application Scenarios

The PCF85263ATL/AX is typically used in embedded systems for timekeeping, in consumer electronics like smartwatches and digital clocks, in data loggers, and in industrial control systems where time-stamping of events is required.

Parameter Features

Key features of the PCF85263ATL/AX include:

- Accurate clock and calendar functionality.

- Low power consumption.

- Integrated timers and alarm functions.

- I²C-bus interface for communication.

Application Scenario - Data Logger System: Circuit Connection Method

1. I²C Bus Integration: Link the SDA (Serial Data) and SCL (Serial Clock) pins of the PCF85263ATL/AX to the respective I²C lines of the microcontroller utilized in the data logger system.

2. Power Supply Connection: Connect the VDD pin to a reliable +3.3V or +5V power source, and ensure the VSS pin is connected to the ground.Ensure the power supply is clean to maintain accurate timekeeping.

3. Clock Output Configuration: If an external clock signal is needed, connect the CLKOUT pin to the desired device or circuit. Configure this pin through the I²C interface as per the requirements.

4. Backup Power Source: Implement a backup power source, such as a coin cell battery, connecting it to the VBAT pin to maintain timekeeping during power failures.

Circuit Design Considerations

- Stable Power Source: Ensure a stable and noise-free power supply for accurate clock functionality.

- I²C Communication: Implement robust I²C communication, including pull-up resistors and proper bus length to avoid signal degradation.

- Backup Power Implementation: Provide a reliable backup power source to maintain timekeeping during power interruptions.

- Clock Accuracy: Consider the placement of the PCF85263ATL/AX to minimize temperature fluctuations that might affect clock accuracy.

In a data logger system, the PCF85263ATL/AX serves as a crucial component for time-stamping data records, ensuring accurate tracking of events over time. Its integration allows for detailed and time-referenced data logging, essential in many industrial and scientific applications.

PCF85263ATL/AX information

PCF85263ATL/AX Specifications

Package/Case:
10-XFDFN Exposed Pad
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Type:
Clock/Calendar
Features:
Alarm, Leap Year, Watchdog Timer
MemorySize:
-
TimeFormat:
HH:MM:SS:hh (12/24 hr)
DateFormat:
YY-MM-DD-dd
Interface:
I²C, 2-Wire Serial
Voltage-Supply:
0.9V ~ 5.5V
Voltage-SupplyBattery:
0.9V ~ 5.5V
Current-Timekeeping(Max):
0.885µA @ 3.3V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount
